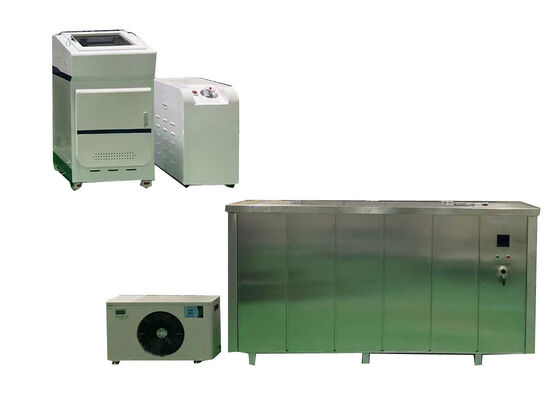

Hydrostatic Pressure Testing Machine Featuring Durable Materials and Precise Calibration for Consistent Testing Accuracy

Large Image : Hydrostatic Pressure Testing Machine Featuring Durable Materials and Precise Calibration for Consistent Testing Accuracy

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-16C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Featuring Durable Materials And Precise Calibration For Consistent Testing Accuracy	Testing Range:	0.1-16MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ10-180mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	durable hydrostatic pressure testing machine , precise calibration hydrostatic testing equipment , accurate hydrostatic pressure test machine

Hydrostatic Pressure Testing Machine

Professional testing equipment featuring durable materials and precise calibration for consistent testing accuracy in industrial applications.

Applications

This hydrostatic pressure testing machine is equipped with dedicated end caps covering a diameter range of Φ10-1600mm and supports test pressures from 0.1 MPa to 16 MPa. With an adjustable test temperature range of 15-95℃, it enables comprehensive performance evaluation of specimens under diverse simulated service conditions.

Certified with CE, ISO and other relevant industry accreditations, ensuring consistent quality and reliable operational safety with integrated overpressure and over-temperature protection mechanisms.

Product Features

Test pressure range: 0.1 to 16 MPa for extensive material testing applications
Integrated safety protection with overpressure and overtemperature safeguards
High measurement accuracy range of -1% to +2%
Intelligent control system with real-time dual analytical data display
Pressure-time and pressure-temperature curve visualization
Comprehensive analysis of mechanical performance and thermal stability

Technical Specifications

Parameter	Specification
Model	XGY-16C
Diameter Range	Φ10-1600mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Test Pressure Range	0.1-16MPa
Control Accuracy	±1%
Display Resolution	0.01MPa
Timer Range	0~10000h
Timer Accuracy	±0.1%
Power	380V 50Hz three-phase four-wire 1.5KW
End Caps Models	from Φ16 to 630mm
Temperature Range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or customized

Compliance Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335

Support & Services

Our professional team provides comprehensive technical support and tailored after-sales services including:

Professional on-site machine installation and commissioning
Timely troubleshooting solutions and technical consultation
Specialized equipment repair and preventive maintenance
Supply of genuine spare parts and high-quality consumables
Regular software updates and functional upgrades

Frequently Asked Questions

What is the brand designation of the Plastic Pipe Hydrostatic Pressure Testing Machine?

The testing machine is branded under TH and manufactured in Beijing, China.

What is the core application of this testing machine?

Designed to determine hydrostatic pressure resistance and bursting strength of plastic pipe products.

What kinds of pipes and materials can be tested?

Suitable for testing various plastic pipes and composite pipes including PP-R, PP-B, PP-A, PVC, PE, PE-X and other polymer piping materials.

What is the measurement accuracy?

The testing machine delivers measurement accuracy within 0.1% of the full-scale reading.

What is the maximum pressure rating?

Performs pressure tests up to 10 MPa (100 bar or 1450 psi).

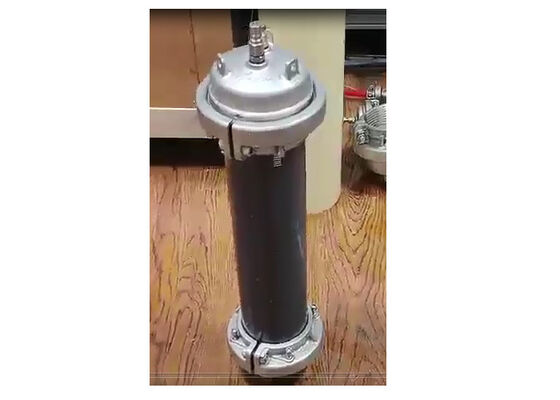

Product Images
