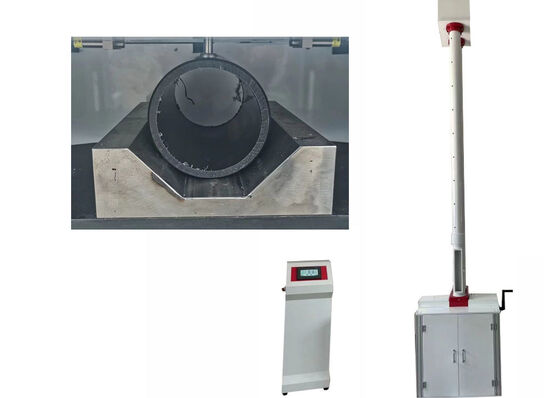

Accurate Drop Hammer Impact Testing Machine for Impact Strength Testing of Plastic Pipes Glass Ceramics and Other Materials

Large Image : Accurate Drop Hammer Impact Testing Machine for Impact Strength Testing of Plastic Pipes Glass Ceramics and Other Materials

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Accurate Drop Hammer Impact Testing Machine For Impact Strength Testing Of Plastic Pipes Glass Ceramics And Other Materials	Travel Of Working Table:	10-450mm
Specimen Diameter:	φ16~450mm	Hammer Diameter:	D25, D90, R5, R10, R30, R50 Can Optional
Hammer Weight:	0.5kg-6kg	Height Of The Fall:	30mm-2000mm，error≤±2mm
Outline Dimension:	750mm×720mm×3650mm	Net Weight:	320kg
Highlight:	drop hammer impact testing machine for plastic pipes , impact strength testing machine for glass ceramics , accurate drop hammer tester for materials

Accurate Drop Hammer Impact Testing Machine

High-precision impact strength testing equipment for plastic pipes, glass, ceramics, and other non-metallic materials.

This ASTM D2444 compliant testing machine provides reliable data for material performance evaluation and quality comparison analysis. Fully compatible with both transfer and gradient test methods for diverse industrial, quality control, and research applications.

Compliance Standards

ASTM D2444, ISO4422, ISO3127, BSEN1411, and BSEN744

Key Features

Triple Safety Protection System: Sample chamber door interlock, observation window interlock, and upper/lower travel limit protection
Enhanced Lifting Performance: High-torque stepper motor achieves 250 mm/s lifting speed, reaching 2 meters in 8 seconds
Intelligent Hovering Control: Multi-stage speed regulation for smooth, stable braking with precise positioning
Optimized Exhaust Design: 3D-modeled guide tube with enhanced venting holes to minimize wind resistance
Pneumatic Hammer Mechanism: 300N long-stroke dual cylinder assembly with cowhide tendon impact surface
Modular Construction: Standardized aluminum alloy profiles with integrated industrial touchscreen and Delta PLC
Premium Components: Airtac cylinders, Delta HMI/PLC, and Mean Well power supplies
High Automation: Automatic zero-point detection, hammer lifting, release, and test cycle execution

Technical Parameters

Model	XJL-450M
Ambient Temperature	10℃-35℃
Drop Hammer Quality	0.5kg-6kg
Hammer Diameter	D25mm, D90mm (customizable)
Height of the Fall	30mm-2000mm, error≤±2mm
Sample Diameter	Φ16mm-Φ450mm (customizable)
Impact Center Deviation	≤2mm

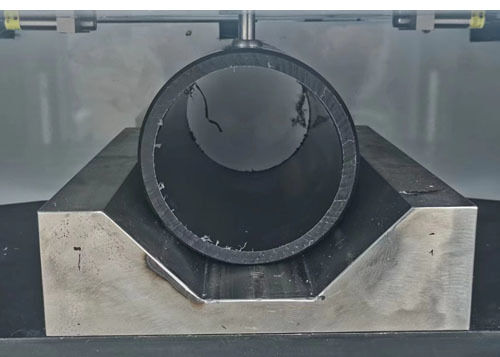

V-type Supporting	120°
Power Source	220VAC±10%
Dimensions	750mm×720mm×3650mm
Net Weight	320kg

Standard Configuration

Component	Quantity
Host Unit	One set
Electric Cabinet	One set
Hammer Body	One set
Power Cable	One piece
V-type Supporting	Two pieces
Operating Tools (Wrench)	One set
