Drop Hammer Impact Testing Machine Suitable for Testing Impact Resistance of Non Metal Materials Including Plastic Pipes

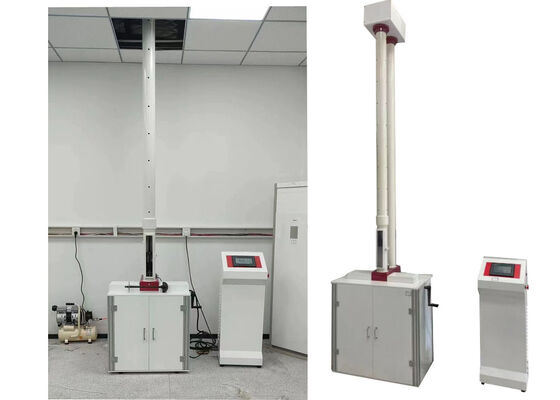

Large Image : Drop Hammer Impact Testing Machine Suitable for Testing Impact Resistance of Non Metal Materials Including Plastic Pipes

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Impact Testing Machine Suitable For Testing Impact Resistance Of Non Metal Materials Including Plastic Pipes	Travel Of Working Table:	10-450mm
Specimen Diameter:	φ10~450mm	Hammer Diameter:	D25, D90, R5, R10, R30, R50 Can Optional
Hammer Weight:	0.5kg-5kg	Height Of The Fall:	50mm-2000mm，error≤±2mm
Outline Dimension:	730mm×700mm×3650mm	Net Weight:	300kg
Highlight:	Drop hammer impact tester for plastic pipes , Non-metal material impact resistance tester , Drop hammer testing machine with warranty

Drop Hammer Impact Testing Machine

Suitable for testing impact resistance of non-metal materials including plastic pipes, plastic sheets, and various non-metallic materials under external dynamic loading conditions.

Application Overview

This testing apparatus evaluates impact strength performance by dropping a defined mass striker from predetermined heights onto test specimens. The system enables estimation of actual impact pass rates for production batches with a maximum permissible TIR threshold of 10%.

Industry Applications

Ideal for quality control and inspection applications across construction sectors, manufacturing facilities, chemical industries, research institutions, and universities.

Compliance Standards

GB/T14152, GB/T10002.1, GB/T5836.1, GB/T13664, GB/T16800, ASTM D2444, ISO4422, ISO3127, BSEN1411 and BSEN744.

Equipment Characteristics

Triple-Level Safety Protection System: Sample chamber door interlock, observation window interlock, and upper/lower travel limit protection
High-Speed Lifting Performance: High-torque stepper motor achieves 250mm/second lifting speed (0-2 meters in 8 seconds)
Intelligent Hover Function: Multi-stage speed control ensures precise positioning without deviation
Optimized Exhaust Pipe Design: 3D-modeled guide pipe with exhaust holes minimizes wind resistance during free fall
Pneumatic Hammer Mechanism: 300N long-stroke dual cylinder with cow tendon plate impact surface for stable operation

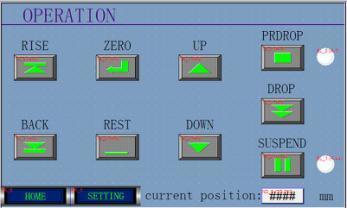

Integrated Modular Assembly: Standardized aluminum alloy profile structure with 7-inch touch screen and Delta PLC
Premium Components: Adker cylinders, Delta touch screens/PLCs, Mean Well power supplies
High Automation: Automatic zero-point calibration, hammer lifting, hammer release, and test execution

Technical Parameters

Model	XJL-450M
Ambient Temperature	10℃-35℃
Drop Hammer Quality	0.5kg-5kg
Hammer Diameter	D25mm, D90mm (customizable)
Height of the Fall	50mm-2000mm, error ≤ ±2mm
Sample Diameter	Φ10mm-Φ450mm (customizable)
Impact Center Deviation	≤2mm
V-type Supporting	120°
Power Source	220VAC ±10%
Dimensions	730mm × 700mm × 3650mm
Net Weight	300kg

Standard Configuration

Host	One set
Electric Cabinet	One set
Hammer Body	One set
Power Line	One piece
V-type Supporting	Two pieces
Operating Tools (Wrench)	One set
