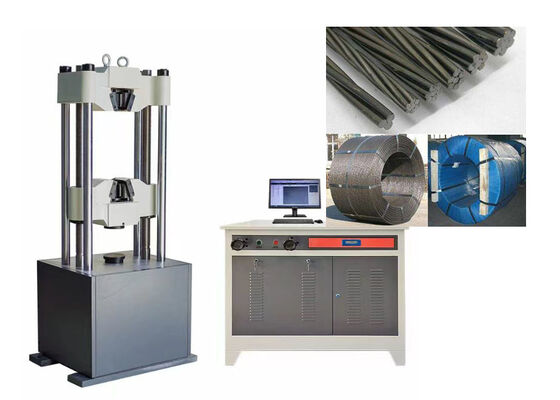

Hydraulic Universal Testing Machine with Load Cell and Computer Control
This advanced hydraulic universal testing machine is designed for comprehensive mechanical performance testing of various metal materials. Equipped with precision load cell technology and computer control systems, it delivers accurate and reliable test results for tensile, compressive, bending, and shear applications.
Product Overview
- Factory direct hydraulic servo tensile testing machine for metal materials
- Performs tensile, compressive, bending, and shear mechanical property tests
- Bottom-mounted oil cylinder design with adjustable testing spaces
- Precision load measurement via advanced load cell technology
- Complete computer-controlled operation with real-time data display
Working Principle
Hydraulic oil is delivered from the tank by a motor-driven high-pressure pump through check valves, high-pressure oil filters, differential pressure valve assembly, and servo valves into the oil cylinder. Computer control commands regulate servo valve opening and flow direction to achieve stable constant test force and displacement control.
Compliance Standards
ISO 6934, BS4449, ASTM C39, ASTM A370, ASTM E4, ASTM E8, ASTM E9, ASTM A615, ISO 6892, ISO 7438, ISO 7500-1, ISO 15630, EN10002-4, GB/T228-2002, GB 16491-2008, GB 6349-1986, ASTM C165
Technical Specifications
| Parameter |
Specification |
| Model |
WAW-1000D |
| Maximum Test Force |
1000 kN |
| Structure |
Four columns two ball screws, oil cylinder down-setting type |
| Load Range |
2%-100% |
| Constant Velocity Stress Control Range |
≤±5% |
| Middle Beam Elevating Speed |
150 mm/min |
| Maximum Tensile Space |
750 mm |
| Maximum Compression Space |
650 mm |
| Piston Stroke |
250 mm |

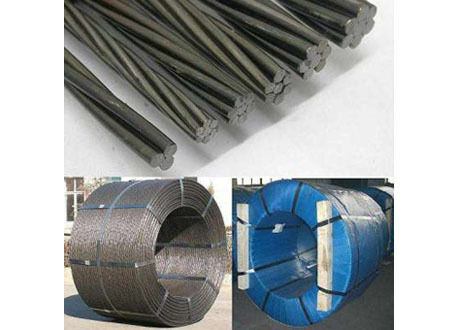

| Stranded Wire Clamping Range |
Φ6-40 mm |
| Flat Sample Clamping Range |
0-30 mm |
| Power Total |
2.5 kW |
| Compression Plate Size |
Φ160 mm |
| Bending Support Roller Distance |
300 mm |
Packing and Shipping
Frequently Asked Questions
Q1. Is your company a trading enterprise or a manufacturing entity?
We are a professional manufacturing enterprise integrated with trading capabilities, focusing on the R&D, production and sales of testing instruments. With 18 years of experience in testing equipment and 14 years of export manufacturing, we ensure stable product quality and reliable service support.
Q2. How to select the most suitable testing equipment for your needs?
Our technical team provides targeted suggestions based on your specific test requirements, technical specifications and application scenarios to ensure perfect equipment matching.
Q3. What about the delivery cycle of the equipment?
We maintain sufficient factory inventory for immediate delivery in most cases. Customized orders require 15-20 working days after advance payment, with flexible adjustments for urgent needs.
Q4. Does your company provide customized services?
We provide customized solutions and supply standard or customized testing equipment that meets industry quality standards for your specific application requirements.
Q5. Is it possible to visit your factory before placing an order?
We sincerely invite you to visit our factory and will arrange professional reception and supporting services for a smooth visit experience.
Q6. What after-sales support can you provide?
We provide one-year warranty with professional technical support, spare parts supply, and on-site engineer support as needed to ensure equipment stability.
Q7. How to ensure the safety of the equipment during transportation?
All equipment is packed with high-standard export wooden boxes, and we have extensive experience in long-distance transportation to ensure safe delivery without damage.
