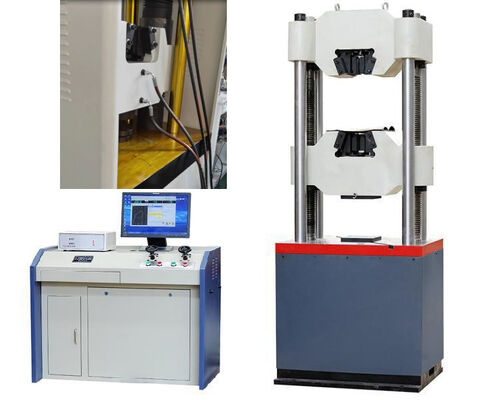

Hydraulic Universal Testing Machine with Bottom Mounted Oil Cylinder and Computer Control for Tensile Compression and Bending Tests

Large Image : Hydraulic Universal Testing Machine with Bottom Mounted Oil Cylinder and Computer Control for Tensile Compression and Bending Tests

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	WAW-600D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~20 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydraulic Universal Testing Machine With Bottom Mounted Oil Cylinder And Computer Control For Tensile Compression And Bending Tests	Structure:	6 Columns
Max.load:	600KN	Load Range:	12KN-600kN
Load Resolution:	1/300000	Test Force Accuracy:	±1%
Displacement Resolution:	0.01mm	Deformation Test Accuracy:	±0.5%
Highlight:	Hydraulic universal testing machine with computer control , Universal testing machine for tensile compression , Bottom mounted oil cylinder testing machine

WAW-600D Computer Control Servo Hydraulic Universal Testing Machine

The WAW-600D Computer Control Servo Hydraulic Universal Testing Machine features a bottom-mounted oil cylinder and advanced computer control system for comprehensive tensile, compression, and bending testing applications.

Applications & Functions

This universal testing machine performs a complete range of mechanical tests including tensile, compression, bending, and shear testing. It accommodates various metal materials as well as non-metallic materials such as plastics, concrete, and cement, serving diverse industrial testing requirements.

The bottom-mounted oil cylinder and dual-space frame design enable automatic adjustment of test space to accommodate different specimen sizes. The integrated computer and dedicated control unit support three control modes: stress control, strain control, and displacement control.

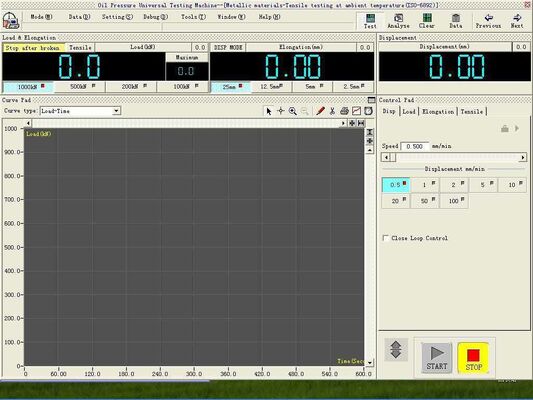

Advanced data management capabilities include test data storage, reanalysis of test curves, partial magnification of results, and data re-editing. The system automatically acquires all mechanical properties and generates comprehensive test reports with corresponding curves for printing.

Compliance Standards

ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, and BSEN standards.

Host Features

Bottom-mounted fuel tank configuration with tensile test space above host and compression/bending/shear test spaces between crossbeam and worktable
Robust four-column, two-screw structural design ensuring exceptional stability and reliable operation
Integrated host design providing superior rigidity and resistance to micro-deformation under load
Adjustable gap screw-nut mechanism on middle crossbeam eliminating gaps and enhancing measurement accuracy
Gap-sealing structure on fuel tank improving measurement precision and extending equipment service life

Overload Protection System

Automatic test halt when test force exceeds 2%-5% of maximum test force for each grade
Travel protection activation and automatic pump motor shutdown when piston reaches upper limit position

Technical Specifications

Parameter	Specification
Model	WAW-600D
Maximum Load	600 kN
Test Range	12 kN - 600 kN
Test Force Accuracy	±1%
Displacement Resolution	0.01 mm
Deformation Test Accuracy	±0.5%
Constant Force/Displacement Control Accuracy	SV<10%FS: ±1.0% of SV SV≥10%FS: ±0.5% of SV
Deformation Rate Control Accuracy	Rate <0.05%FS: ±2.0% of SV Rate ≥0.05%FS: ±0.5% of SV
Maximum Drawing Space	800 mm
Maximum Compressing Space	700 mm
Flat Sample Clamp Thickness	0-15 mm
Round Sample Clamp Diameter	φ13-φ40 mm
Bending Test Branch Space	450 mm
Branch Width	140 mm
Branch Diameter	30 mm
Piston Stroke	250 mm
Clamp Method	Built-in Hydraulic Clamp
Machine Dimensions	900 × 600 × 2453 mm
Oil Source Dimensions	1100 × 700 × 950 mm
Complete Weight	3000 kg
