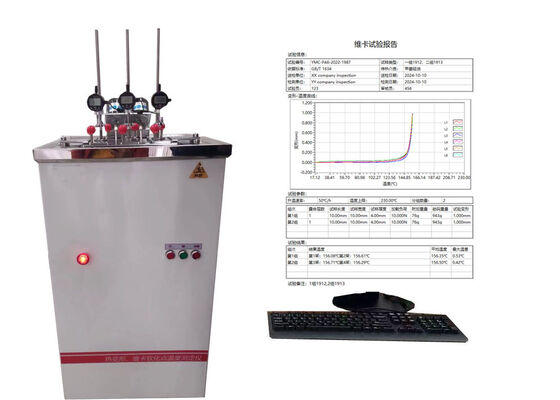

HDT VICAT Tester for Non-Metallic Materials
This advanced testing machine features a computer programmable controller for precise temperature regulation and accurate heat distortion testing results. All operational procedures are conducted through an intuitive computer display interface.
Equipment Overview
Designed for straightforward operation and precise test output, this HDT VICAT Testing Machine is primarily used to determine heat distortion temperature and Vicat softening point temperature of non-metallic materials including plastics, rubber, nylon, and electrical insulating materials.
Compliance Standards
- ISO75-2013 Determination of plastic load deformation temperature
- ASTM D 648 Plastic thermal deformation temperature test method
- ASTM D 1525 Plastic Vicat (VICAT) softening temperature test method
- GB/T 1633 Thermoplastics - Determination of Vicat softening temperature (VST)
- GB/T 1634 Determination of plastic load deformation temperature Part I: General test method
- GB/T 8802 Determination of softening temperature of plastic pipe fittings
Technical Specifications
| Temperature control range |
Room temperature ～300℃ |
| Heating rate |
120℃/h ±10℃/h , 50℃/h ±5℃/h |
| Maximum temperature error |
±0.5℃ |
| Temperature measurement point |
1 |
| Test stations |
3 stations |
| Loading |
(10±0.2)N, (50±1.0)N |
| Test frame lifting mode |
Automatic rising-lowering |
| Formal measurement measuring tool |
Digital display dial gauge |
| Deformation measurement range |
-1.00～10.00mm |
| Span of sample support |
64mm, 100mm |
| Maximum deformation measurement error |
0.001mm |
| Thermal expansion coefficient of specimen holder |
<0.005mm/100℃ |
| Heating medium |
Silicone oils, glycerine, ethylene glycol |
| Cooling method |
＞150℃ Natural cooling, ≤150℃ water cooling or natural cooling |
| Temperature protection |
Automatic heating stop when test temperature reaches upper limit |
| Equipment size |
840mm×570mm×1360mm |
| Current source |
4.5KW, 220VAC, 50HZ |
Support and Services
Installation and Setup
Our technical specialists provide on-site placement and commissioning, along with standardized operational training for your staff.
Preventive Maintenance
We arrange periodic maintenance programs to ensure long-term stable and optimal working performance.
Troubleshooting Assistance
Professional technical guidance is provided to help users accurately locate equipment anomalies and resolve operational faults promptly.
Packaging and Shipping
The HDT VICAT Testing Machine is encased in reinforced wooden packaging with bubble wrap and shock-absorbing foam to ensure integrity during transportation. The equipment is hermetically wrapped in plastic film to prevent moisture intrusion and is clearly marked for easy identification. We consign to reputable logistics carriers such as UPS or FedEx for safe and timely delivery.
Frequently Asked Questions
What is the HDT VICAT Testing Machine?
The HDT VICAT Testing Machine is a specialized testing instrument independently developed and produced by TH, with production base in Beijing, China. Model XRW-300, this equipment is specifically engineered to measure the Vicat softening temperature of thermosetting plastics, serving as a core tool for quality control and performance verification in the plastic material industry.
What are the advantages of the HDT VICAT Testing Machine?
This machine is characterized by high-precision measurement, user-friendly operation, and stable performance. It boasts accurate Vicat softening temperature detection, with reliable data output and low maintenance requirements, effectively supporting quality control of thermosetting plastics in production and R&D scenarios.
What are the technical parameters of the HDT VICAT Testing Machine?
Equipped with a microcomputer control system, the machine features temperature control accuracy of ±0.5°C, temperature range from ambient temperature to 300°C, and adjustable heating rates of 120°C/h or 50°C/h, fully meeting testing needs of thermosetting plastics including polyester, epoxy, unsaturated polyester, phenolic resin, and polyurethane.
What is the warranty period for the HDT VICAT Testing Machine?
TH provides a 12-month warranty period with comprehensive technical support and after-sales services to ensure stable and efficient machine operation.
