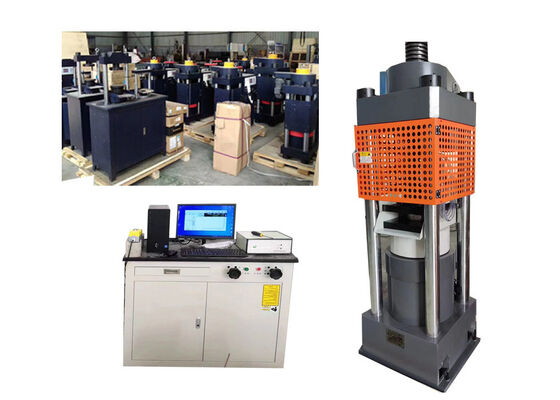

Hydraulic Universal Testing Machine
High-precision professional apparatus for material compression testing equipped with measurement control system and hydraulic power source.
Product Overview
The YAW-2000DX computer control hydraulic servo pressure resistance test machine serves as an electromechanical and hydraulic integrated testing facility. This comprehensive system finds wide application across metallurgy, building materials, aviation, aerospace, higher education institutions, and scientific research organizations.
System Components
The complete unit comprises four major modules: test host engine, hydraulic power source (oil source), measurement and control system, and matched test instrumentation.
Test Machine Host
- Four-column rack structure with spherical secondary alignment design
- High-strength alloy steel construction with heat treatment processing
- Maximum damage capacity of 2500kN for superior structural strength and stability
- High-precision unidirectional hydraulic cylinders with 100mm minimum piston stroke
- Arc floating head pressure plate mechanism for perfect alignment
- High-precision load sensors for accurate force measurement
- Integrated fast oil return device
Control System
Configured with digital servo valve, high-precision sensors, controllers, and supporting software. Complies with GB, ISO, ASTM and other relevant standards for testing cement, mortar, concrete, and similar engineering materials.
Functional Characteristics
- Force-based closed-loop control function
- Maintains steady constant loading rate or constant stress loading rate
- Computer-based electronic measurement for fully automated test operations
- Automatic computation of test data results with printable reports
- Customizable test reports with Excel export capability
Compliance Standards
ASTM C349; ASTM C109; EN993-5; EN 196-1; ISO8895; ISO10059-1; ISO10059-2
Technical Specifications
| Parameter |
Specification |
| Maximum test force |
2000kN |
| Test machine level |
0.5 |
| Effective force measurement range |
2%～100%FS |
| Error of test force indication value |
±1% |
| Maximum distance between plates |
0-320mm |
| Plate size |
300×260mm |
| Column span |
300mm |
| Piston stroke |
100mm |
| Piston speed |
50mm/min |
| Oil pump flow |
5L/min |
| Hydraulic source dimensions |
1150×710×1110(mm) |
| Main unit dimensions |
685×680×1810(mm) |
| Total power |
3kW (380V) |
| Power source |
Three-phase five-line system |
| Weight |
1620kg |
Packaging and Shipping
Frequently Asked Questions
Q1. Is your company a trading firm or a manufacturing factory?
We are a factory-integrated trading entity with 18 years of experience in testing instruments and 14 years of professional export expertise.
Q2. How can we select the most suitable product for our needs?
Our technical team provides optimal recommendations based on your specific testing requirements and technical specifications.
Q3. What are your delivery terms?
We maintain sufficient factory stock. For out-of-stock items, standard lead time is 15-20 working days after deposit receipt. Priority arrangements available for urgent requirements.
Q4. Do you provide customization services?
Yes, we supply both standard testing machines and customized equipment tailored to your specific requirements.
Q5. Can we visit your factory before placing an order?
We warmly welcome factory visits and provide assistance with accommodation and airport transportation.
Q6. What is your warranty policy?
One-year warranty with free technical support and replacement of damaged parts. On-site engineer service available when needed.
Q7. How is the machine packaged, and is it well-protected during transportation?
All machines are packed in standard export wooden crates designed for complete protection against damage during transit.
