Hydraulic Universal Testing Machine offering tension compression bending and shear testing with easy operation and maintenance

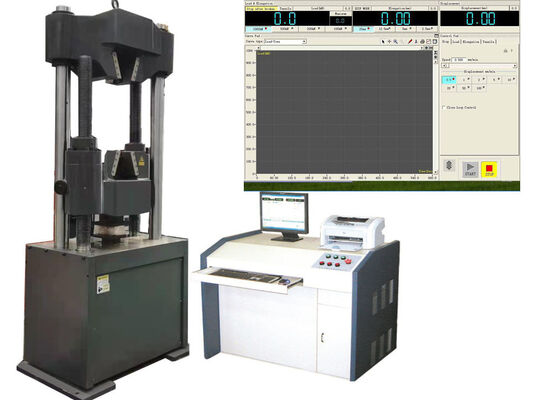

Large Image : Hydraulic Universal Testing Machine offering tension compression bending and shear testing with easy operation and maintenance

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	WEW-600B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	20~30 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydraulic Universal Testing Machine Offering Tension Compression Bending And Shear Testing With Easy Operation And Maintenance	Model:	WEW-600B
Structure:	4 Columns	Control Way:	Manual
Max.load:	600KN	Max. Tension Test Space:	700mm (can Customize)
Max.Compression Test Space:	600mm (can Customize)	Round Specimen Clamping Range:	φ13-26mm, φ26-40mm
Highlight:	Hydraulic Universal Testing Machine with tension compression , Universal Testing Machine for bending shear testing , Easy operation hydraulic testing machine with warranty

Hydraulic Universal Testing Machine

Professional testing equipment offering tension, compression, bending, and shear testing capabilities with easy operation and maintenance.

Applications & Features

Capable of performing tension, compression, bending, and shear mechanical tests
Suitable for testing materials including rebar, steel bar, steel plate, carbon fiber steel bar, bolts, nuts, and wire ropes
Customizable modifications available to meet client requirements and designated testing standards

Compliance Standards

ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, and BSEN standards

Host Machine Features

Bottom-mounted oil tank with tensile testing space on upper side and compression/bending/shearing zones in lower section
Sturdy four-column double-screw structure for excellent stability
Integral forming design for superior rigidity and prevention of deformation under load
Adjustable clearance screw nut structure on middle beam to eliminate assembly gaps
Clearance sealing structure in oil tank for enhanced testing accuracy and extended service life

Safety & Protection Systems

Overload protection activates when test force exceeds 2-5% of maximum rated test force
Automatic pump motor shutdown when piston reaches upper limit position

Technical Specifications

Model	WEW-600B
Structure	4 column
Control Method	Manual
Maximum Load	600kN
Load Accuracy	≤±1% / ≤±0.5%
Load Range	2%-100%FS / 0.5%-100%FS
Load Resolution	1/300000
Deformation Measurement Range	2%～100%FS
Deformation Accuracy	≤±1%/±0.5%
Displacement Resolution	0.01mm
Displacement Error	≤±0.5%
Maximum Piston Stroke	250mm
Maximum Piston Speed	0-50mm/min stepless speed adjusting
Crosshead Lifting Speed	120mm/min
Maximum Tension Test Space	700mm (customizable)
Maximum Compression Test Space	600mm (customizable)
Effective Width	440mm

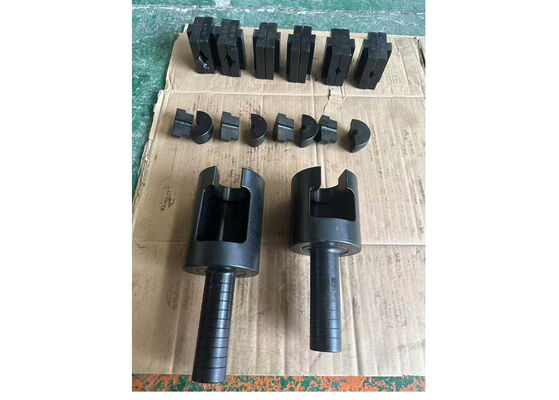

Clamping Method	Hydraulic Automatic Clamp Fixture
Round Specimen Clamping Range	φ13-26mm, φ26-40mm
Flat Specimen Clamping Range	0-15mm
Compression Plate Size	φ120mm
Power Supply	3-phase, AC380V, 50Hz (customizable)

Testing Machine Series Comparison

WAW Series: Computer-controlled servo hydraulic universal testing machine with precise software regulation, real-time data transmission, and advanced servo hydraulic control technology for high-precision performance.

WEW Series: Computer-display manual-control hydraulic testing machine with manual space adjustment and force loading, plus software data analysis capabilities for balanced operability and analysis.

WE Series: Pendulum dynamometer-display manual-control universal testing machine with manual operations and direct result display via pendulum dynamometer for basic testing scenarios.
