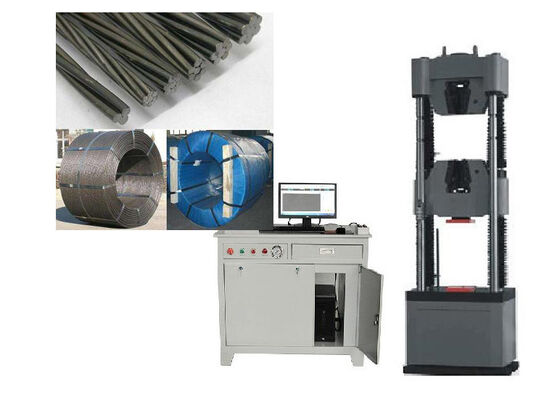

Hydraulic Universal Testing Machine for Conducting Low Cycle Tear and Peel Tests on Various Metal and Non Metallic Materials

Large Image : Hydraulic Universal Testing Machine for Conducting Low Cycle Tear and Peel Tests on Various Metal and Non Metallic Materials

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	WAW-1000L

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	20~30 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydraulic Universal Testing Machine For Conducting Low Cycle Tear And Peel Tests On Various Metal And Non Metallic Materials	Model:	WAW-1000L
Structure:	6 Columns	Control Way:	Dual Control Mode Of Manual And Electro-hydraulic Servo
Max.load:	1000KN	Max. Tension Test Space:	1100mm (can Customize)
Max.Compression Test Space:	1000mm (can Customize)
Highlight:	Hydraulic Universal Testing Machine for metal materials , Low cycle tear test machine with hydraulic system , Peel test equipment for non-metallic materials

Hydraulic Universal Testing Machine

Professional equipment for conducting low cycle tear and peel tests on various metal and non-metallic materials with precision and reliability.

Applications

Room-temperature mechanical tensile performance testing for prestressed steel strands, aluminum stranded wires, steel wire ropes, electric cables, and load-bearing cables (Ф8.00~Ф21.80mm)

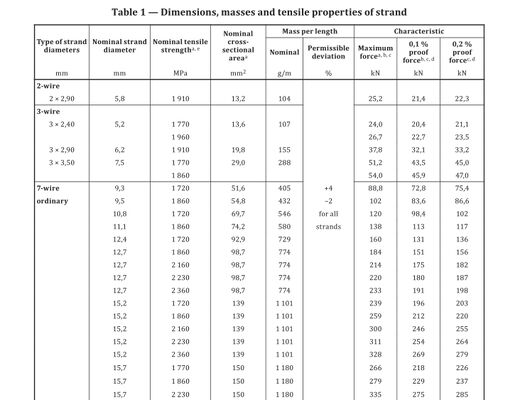

Perfect compatibility with steel strands: Ф9.53mm, Ф11.10mm, Ф12.70mm, Ф15.24mm, Ф18.00mm, Φ19.30mm, and Ф21.80mm
Tensile, compression, bending, shearing, peeling, tearing, and low-cycle tests on various metal materials including steel bars, sheets, rods, castings, and fasteners
Tensile performance detection for standard strands, indented strands, compact strands, epoxy resin coated steel strands, and galvanized steel materials
Performance verification for messenger wires, stay wires, core strength components, overhead ground wires, and structural cables
Tensile testing for prestressed concrete steel bars including P plain bars, HG helical grooved bars, HR helical ribbed bars, and CRB series products
Comprehensive testing capabilities for sheets, strips, foils, flat materials, wires, solid bars, sectional materials, pipes, and various profiles

Price Advantage

Through continuous R&D investment and exclusive internal machining centers for core component manufacturing, we maintain consistent quality standards while reducing intermediate costs. Our high-quality equipment delivers substantial long-term savings through reduced failure rates, lower maintenance costs, and improved operational efficiency.

Compliance Standards

ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, and BSEN standards

Host Features

Bottom-mounted oil tank with upper section for tensile tests and lower section for compression, bending, and shear tests
Robust four-column double-lead-screw structural layout for outstanding operational stability
Integrated main frame construction for superior rigidity and minimal structural deformation under load
Middle cross beam with clearance-adjustable screw and nut assembly to eliminate gaps and optimize measurement performance
Oil tank manufactured with clearance sealing technology for enhanced testing precision and extended service life

Safety Protection Systems

Overload protection activates when test force exceeds 2% to 5% of maximum range capacity
Travel protection system automatically shuts down pump motor when piston reaches upper limit position

Technical Specifications

Model	WAW-1000L
Max. Test Force	1000 kN
Structure	Four columns two ball screws, oil cylinder down-setting type
Load Range	1%-100%
Middle Beam Elevating Speed	320 mm/min
Max. Tensile Space	1100 mm
Max. Compression Space	1000 mm
Piston Stroke	250 mm
Stranded Wire Clamping Range	Φ8-21.8 mm
Power Total	2.2 KW
Compression Plate Size	Φ225 mm
Bending Support Roller Distance	300 mm
