PC Controlled Hydraulic Universal Testing Machine Suitable for Testing Compressive Resistance of Various Construction Materials

Large Image : PC Controlled Hydraulic Universal Testing Machine Suitable for Testing Compressive Resistance of Various Construction Materials

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	YAW-2000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	PC Controlled Hydraulic Universal Testing Machine Suitable For Testing Compressive Resistance Of Various Construction Materials	Model:	YAW-2000
Max.load:	2000KN	Test Machine Level:	0.5
Effective Force Measurement Range:	2%～100%	Error Of The Test Force Indication Value:	±1%
Maximum Distance Between Upper And Lower Plates:	0-330mm	Size Of Plates:	370*370mm
Highlight:	PC controlled hydraulic testing machine , universal testing machine for construction materials , hydraulic compressive resistance tester

PC Controlled Hydraulic Universal Testing Machine

This advanced testing machine is specifically designed for assessing the compressive resistance of various construction materials including bricks, stone, cement, and related building components.

Product Overview

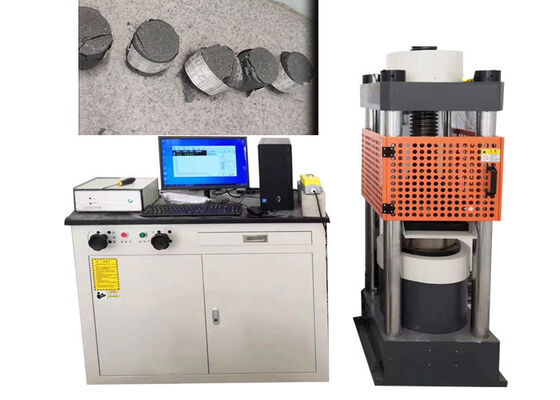

The YAW-2000 PC-controlled Compression Testing Machine integrates mechanical structure, electronic control, and hydraulic drive technologies to provide precise and reliable testing capabilities for construction material quality assessment.

Quality & Value Advantages

Our commitment to technological research and development, combined with dedicated manufacturing facilities for core components, ensures superior product quality while maintaining competitive pricing. Our testing machines deliver long-term economic benefits through reduced maintenance costs and enhanced operational productivity.

Compliance Standards

GB/T 3722-1992 Hydraulic pressure tester
GB/T 50081-2002 Compressive strength test of ordinary concrete
GB/T 17671-1999 Inspection method of cement
GB/T 2542-2003 Test method for wall brick laying
GB 13544-2000 Sintered porous brick test
GB/T 5101-2003 Requirements for sintering ordinary brick strength test

Technical Specifications

Model	YAW-2000 PC-controlled Compression Testing Machine
Maximum Test Force	2000 kN
Measuring Range	5%-100%
Test Force Accuracy	≤ ±1%
Loading Speed Accuracy	1.5%
Maximum Space Between Plates	330 mm
Plate Size	370 × 370 mm
Piston Travel	100 mm
Motor Power	2 kW
Main Body Dimensions	650 mm × 500 mm × 1500 mm
Main Body Weight	Approximately 1600 kg
