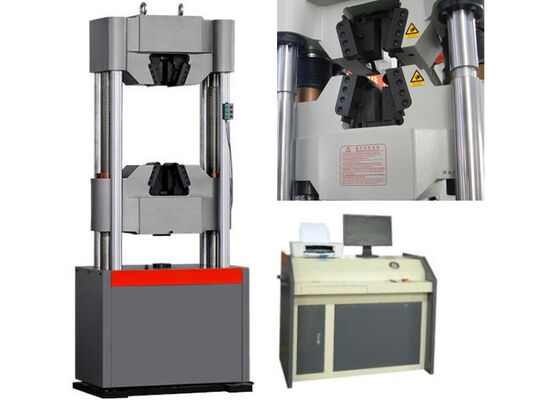

Hydraulic Universal Testing Machine Equipped with Overload Protection and Computer Display for Material Strength Testing

Large Image : Hydraulic Universal Testing Machine Equipped with Overload Protection and Computer Display for Material Strength Testing

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	WEW-2000D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~20 work days
Payment Terms:	D/,T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydraulic Universal Testing Machine Equipped With Overload Protection And Computer Display For Material Strength Testing	Structure:	4 Columns And 2 Screws
Max.load:	2000KN	Load Accuracy:	≤±1%
Displacement Resolution:	0.01mm	Test Force Resolution:	0.01KN
Round Sample Clamping Diameter(mm):	φ10-40	Flat Sample Clamping Thickness(mm):	0-30
Highlight:	Hydraulic Universal Testing Machine with overload protection , Material strength testing machine with computer display , Universal testing equipment for hydraulic material analysis

Hydraulic Universal Testing Machine with Overload Protection and Computer Display

This hydraulic universal testing machine features advanced overload protection and computer display systems for precise material strength testing across various applications.

Applications

Utilizing hydraulic loading with computer display systems for simplified operation, this equipment performs tensile, compression, bending, and flexural tests on metallic specimens. With basic auxiliary components, it also accommodates testing of wood, concrete, cement, rubber, and other common materials. Designed for heavy-load conditions, it's ideal for mechanical testing of high-toughness and high-hardness metallic and non-metallic samples.

Compliance Standards

ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, and BSEN standards.

Host Unit Features

Bottom-mounted fuel container with tensile testing in the upper section and compression/bending/shear testing in the lower chamber
Robust four-column double-screw framework for exceptional structural stability
Integrated one-piece main frame with ultra-high rigidity to prevent structural deformation
Middle crossbeam with clearance-adjustable screw and nut assembly for optimized measuring capabilities
Fuel tank with clearance sealing treatment for enhanced precision and extended hydraulic system life

Overload Protection System

Automatic shutdown when test force exceeds 2% to 5% of maximum rated test force for corresponding gear grade
Travel protection activates when piston reaches upper stroke boundary, instantly terminating pump motor operation

Technical Specifications

Specification	Value
Model	WEW-2000D
Structure	6 column
Control Method	Manual loading process control, computer automatic data processing
Maximum Load	2000kN
Load Accuracy	≤±1% / ≤±0.5%
Load Range	2%-100%FS / 0.4%-100%FS (optional)
Load Resolution	1/300000
Deformation Measurement Range	2%~100%FS
Deformation Accuracy	≤±1%/±0.5% (optional)
Displacement Resolution	0.01mm
Displacement Error	≤±0.5%
Maximum Piston Stroke	250mm
Maximum Piston Moving Speed	0-70mm/min Manual adjustment
Crosshead Lifting Speed	270mm/min
Maximum Tension Test Space	650mm (customizable)
Maximum Compression Test Space	500mm (customizable)
Column Clearance	520mm
Clamping Method	Hydraulic clamp
Round Specimen Clamping Range	Φ20-Φ80mm
Flat Specimen Clamping Range	0-60mm
Flat Specimen Clamping Width	75mm
Compression Plate Size	200*200mm
Bending Roller Distance	450mm
Width of Bending Rollers	120mm
Power Supply	3-phase, AC380V, 50Hz (customizable)
