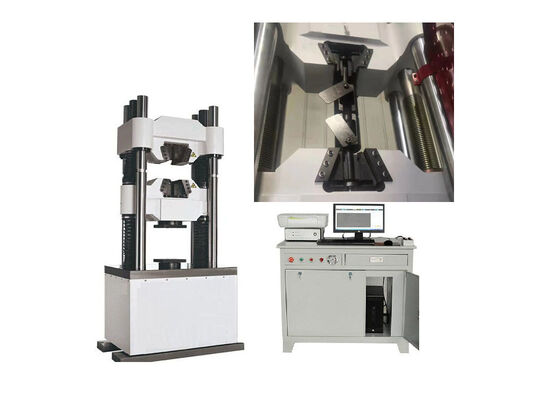

Computer Control Electro Hydraulic Servo Universal Testing Machine
Advanced testing equipment for comprehensive metal and non-metal material testing applications with integrated test execution, data gathering, analysis, and reporting capabilities.
Applications
The WAW series Computer Control Electro-Hydraulic Servo Universal Testing Machine combines test execution, electronic data gathering, programmable automated data analysis, and report generation in a single integrated unit.
Configured with a down-type oil cylinder main frame, this hydraulic universal testing machine performs tensile, compression, bending, and shear tests for metallic and non-metallic specimens. Suitable for multiple industries including metallurgy, construction, light manufacturing, aviation, aerospace, and material science fields. Ideal for educational institutions and professional research facilities. All operations comply with GB/T228-2010 standards for metal material room-temperature tensile testing.
Competitive Advantages
We have invested significantly in independent research and development with professional processing workshops. All core components are manufactured in-house, ensuring cost efficiency without compromising quality.
Unlike low-cost alternatives with substandard workmanship, our high-performance equipment delivers superior value through reduced malfunction rates, lower maintenance expenses, and enhanced operational efficiency.
Compliance Standards
ISO 6892, ISO 6934, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, and BSEN standards.
Safety Features
- Overload protection activates when real-time test force exceeds 2%-5% of maximum test force for the corresponding gear
- Built-in travel protection mechanism stops pump motor operation when piston reaches upper travel limit
Technical Specifications
| Model |
WAW-1000D |
| Max. Test Force |
1000KN |
| Structure |
Four columns two ball screws, oil cylinder down-setting type |
| Load Range |
1%-100% |
| Middle Beam Elevating Speed |
170 mm/min |
| Max. Tensile Space |
750mm |
| Max. Compression Space |
650mm |
| Piston Stroke |
250mm |
| Stranded Wire Clamping Range |
Φ16-60mm |
| Power Total |
3.2KW |
| Compression Plate Size |
Φ160mm |
| Bending Support Roller Distance |
300mm |
Packaging and Shipping
Frequently Asked Questions
Is your enterprise a dedicated manufacturer or a trading company?
We operate as a combined manufacturing and trading business with 18 years in the testing instrument industry and 14 years of cross-border export experience.
How can I select the testing machine that fits my application scenarios?
Provide our team with your test types and technical specifications, and our specialists will recommend the most suitable equipment.
What is your general lead time for orders?
Most products are kept in inventory. Out-of-stock items require 15-20 working days production after deposit receipt. Urgent orders receive priority processing.
Do you support personalized customization for testing devices?
Yes, we customize equipment to match unique operational demands beyond standard specifications.
Are customers allowed to tour your manufacturing factory before placing orders?
We welcome all clients to visit our factory and provide full support including hotel arrangements and airport pickup services.
What coverage does your product warranty include?
Our products include a one-year warranty with technical guidance, spare parts replacement, and optional on-site engineer support.
What packaging methods do you use? Can the equipment be well-protected during international shipping?
All testing machines are securely packaged in standardized export wooden crates. We have extensive worldwide shipping experience with no transit-related damage incidents.
