Hydraulic Universal Testing Machine with 600KN Max Load and Hydraulic Clamping for Multi-Industry Material Testing

Hydraulic Universal Testing Machine with 600KN Max Load and Hydraulic Clamping for Multi-Industry Material Testing

Large Image :  Hydraulic Universal Testing Machine with 600KN Max Load and Hydraulic Clamping for Multi-Industry Material Testing

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: TH
Certification: ISO9001, CE
Model Number: WAW-600G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 7~15 work days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Hydraulic Universal Testing Machine For In Textile Fiber Wire Cable Healthcare Packaging And Other Industrial Material Testing Model: WAW-600G
Structure: 6 Columns Control Way: Manual & Automatic
Max.load: 600KN Max. Tension Test Space: 700(can Customize)
Max.Compression Test Space: 600mm (can Customize) Load Range: ±1%-100%FS
Electronic Extension Meter: 10/50 Round Specimen Range: φ13~φ40mm
Flat Specimen Clamping Range: 0-30mm Clamping Method: Hydraulic Clamping
Highlight:

Hydraulic Universal Testing Machine for textiles

,

Universal Testing Machine for wire cable

,

Hydraulic Testing Machine for pharmaceuticals

Hydraulic Universal Testing Machine
This hydraulic universal testing machine is engineered with dedicated fixtures to perform tensile testing on steel rebars and compressive testing of cubic concrete samples. It supports mechanical performance testing and analytical evaluation for a broad range of metallic, non-metallic and composite raw materials.
Applications
Extensively deployed across multiple industrial sectors including:
  • Aerospace engineering
  • Petrochemical processing
  • Mechanical component fabrication
  • Automobile manufacturing
  • Electric wire & cable fabrication
  • Textile fiber processing
  • Plastic & rubber manufacturing
  • Ceramic construction supplies
  • Food processing
  • Healthcare packaging
  • Metal structural construction projects
Additionally serves laboratory demands of tertiary education institutions, material research laboratories, technical supervision authorities and official quality inspection centers.
Standards Compliance
Conforms to GB, ISO, ASTM, JIS and DIN global testing specifications. Capable of executing bending, shearing, tearing, piercing, fracture and customized high-low temperature environmental tests.
Precisely measures core material mechanical indicators including:
  • Yield strength
  • Tensile/compressive/flexural strength
  • Elongation percentage
  • Proof strength at specified extension
  • Non-proportional extension strength
  • Modulus of elasticity
Price Advantage
We maintain expanding internal R&D investment and have established self-owned machining workshops to realize independent manufacturing of all core components. This integrated production layout cuts down intermediate circulation expenses while sustaining consistent superior product quality.
Our high-performance testing equipment delivers far higher long-term economic value compared with low-cost defective devices offered by competing suppliers. Lower equipment malfunction frequency helps clients slash recurring maintenance expenditures, alongside enhanced continuous operation efficiency.
Technical Specifications
ParameterSpecification
ModelWAW-600G
Structure4 columns and 2 screws
Control wayLoading process manual control, computer automatic data dealing
Max.load (kN)600kN
Load accuracy≤±0.5%
Load range2%-100%FS
Isokinetic stress control range2-60 (N/mm2•S-1)
Stress rate error≤±0.5%
Load resolution1/600000
Deformation Measurement Range2%~100%FS
Deformation accuracy≤±0.5%
Displacement resolution (mm)0.01
Displacement error≤±0.5%
Max.piston stroke(mm)250
Max piston moving speed0.5-100 mm/min Manual adjustment
Crosshead lifting speed300mm/min
Max. tension test space700mm (can customize)
Max.Compression Test Space600mm (can customize)
Clamping methodHydraulic clamp
Round specimen clamping range (mm)φ13-φ40 mm(13-26,26-40)
Flat specimen clamping range (mm)0-15,15-30 mm
Flat specimen clamping width(mm)80
Compression plate size (mm)200*200
Bending roller distance(mm)450
Width of bending rollers (mm)120
Power supply3-phase, AC380V, 50Hz (can be customized)
Weight and size2100KG, 960mm*750*2270mm
Packaging & Shipping
Testing machine packaging and shipping process Export-grade solid wooden crate packaging
Frequently Asked Questions
Q1: Does your enterprise only engage in merchandise trading or possess independent production workshops?
A: We adopt an integrated model combining in-house manufacturing and overseas trading. We have concentrated on developing and manufacturing testing instruments for 18 years, and accumulated 14 years of cross-border export operation experience.
Q2: How can clients match the most appropriate testing equipment to their demands?
A: Kindly inform our specialist team of your targeted test items and corresponding technical indicators, and we will provide targeted and optimized equipment selection proposals.
Q3: What is your standard production and shipment lead time?
A: Most mainstream instrument models are stocked in our production plant all year round. For out-of-stock specifications, production and delivery will be completed within 15 to 20 working days upon receiving your advance deposit. Priority production schedules can be arranged for rush order demands.
Q4: Is customized equipment development available on demand?
A: Customized manufacturing service is fully supported. Apart from standard-specification testing equipment, we can tailor non-standard machines strictly in accordance with your actual application demands. Feel free to share your detailed technical requirements, and we will fully cater to all your testing scenarios.
Q5: Are clients allowed to conduct on-site factory inspections prior to order confirmation?
A: We sincerely welcome every customer and their professional teams to inspect our production base. Our staff will provide full support including hotel reservation coordination and dedicated airport transfer service.
Q6: What after-sales guarantee services are provided for your instruments?
A: All testing machines come with a twelve-month full coverage warranty. Within the warranty coverage, we supply continuous remote technical guidance and free replacement of defective spare parts. On-site troubleshooting by our professional engineering team can be organized when necessary.
Q7: What packaging solution is adopted for finished machines, and can it guarantee intact transit?
A: Every complete instrument is packaged with export-grade solid wooden crates to achieve comprehensive shockproof and collision-resistant protection. Large quantities of our testing devices have been shipped to global destinations via sea freight and air freight with zero damage records during transit.
Product Images

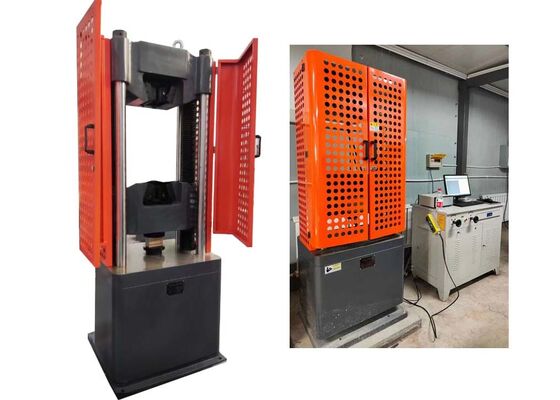

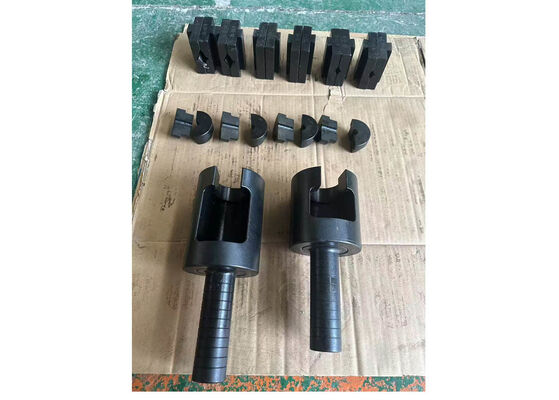

Hydraulic universal testing machine overview Testing machine close-up view Testing machine operation interface
