HDT VICAT Tester Thermal Deformation Apparatus With Test Stand Lifting System For Heat Distortion Temperature Measurement

HDT VICAT Tester Thermal Deformation Apparatus With Test Stand Lifting System For Heat Distortion Temperature Measurement
HDT VICAT Tester Thermal Deformation Apparatus With Test Stand Lifting System For Heat Distortion Temperature Measurement

Large Image :  HDT VICAT Tester Thermal Deformation Apparatus With Test Stand Lifting System For Heat Distortion Temperature Measurement

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: TH
Certification: ISO9001, CE
Model Number: XRW-300D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Product Name: HDT VICAT Tester Thermal Deformation Apparatus With Test Stand Lifting System For Heat Distortion Temperature Measurement Controll: By Computer
Test Station Moving Method: Automatic Mainframe Type: Floor Type
Vicat Load: 10N ± 0.2 N , 50N ± 1N Max. Deformation Deviation: 0.001mm
Deformation Measuring Rage: 0 ~ 2.5mm Sample Frame Number: 3-6 Stations Can Be Selected
Highlight:

HDT VICAT Tester with lifting system

,

Thermal deformation apparatus for heat measurement

,

Heat distortion temperature test stand

HDT VICAT Tester Thermal Deformation Apparatus
Professional testing equipment with test stand lifting system for precise heat distortion temperature measurement of non-metallic materials.
Product Overview
The Vicat & Heat Distortion Tester with elevating test bench system is designed for measuring heat deflection temperature and Vicat softening temperature of various non-metallic materials. This intelligent testing apparatus is widely used in university laboratories, research institutions, and quality inspection authorities.
Applications
Suitable for testing plastics, rigid rubber, nylon raw materials, electrical insulation substrates, long-fiber reinforced composite materials, and high-strength thermosetting laminated sheets.
Key Features
  • User-friendly operating logic with precise temperature and load regulation
  • Computerized control architecture for stable performance
  • Superior automatic running capability
  • Complies with latest domestic and international testing standards
  • Intuitive human-machine interaction interface
Technical Specifications
Model XRW-300D
Testing Stations 6 stations (simultaneous testing capability)
Cooling System Air cooling above 150°C, water or natural cooling below 150°C
Deformation Measurement High precision digital display dial gauge
Heating Rate 50°C/h, 120°C/h
Max Temperature Deviation ±0.5°C
Deformation Deviation 0.01mm
Vicat Load 10N ± 0.2N, 50N ± 1N
Fiber Stress 0.455 MPa and 1.82 MPa
Temperature Control Range Room temperature ~ 300°C
Deformation Measuring Range 0 ~ 10mm
Sample Frame Number 3
Test Span 60~120mm
Heating Power 6KW
Power Supply 220V 50Hz
Display Color touch screen
Type and Control Desk type using PLC control system
Compliance Standards
GB/T1633, GB/T1634, ISO75, ISO306, ASTM D648, ASTM D1525, ISO 2507
Standard Configuration
  • Main frame: 1 set
  • Electric cabinet: 1 set
  • Specimen holder: 3 sets
  • Vicat indenter: 3 sets
  • Heat deflection indenter: 3 sets
  • Displacement sensor: 3 sets
  • Power line: 2 sets
  • Connecting line: 2 sets
  • Operation manual: 1 set
  • Certificate: 1 set
  • Packing list: 1 set
Product Images

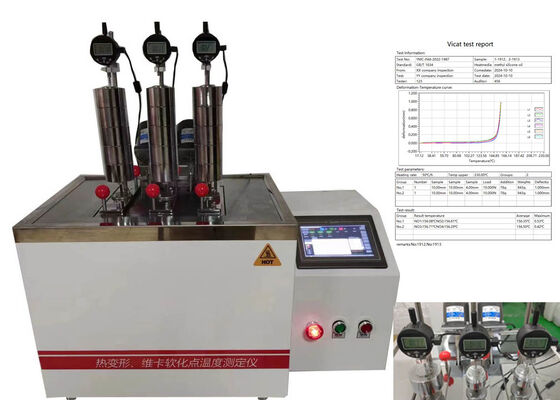

HDT VICAT Tester Thermal Deformation Apparatus front view HDT VICAT Tester control panel and display HDT VICAT Tester testing station close-up HDT VICAT Tester complete setup overview
