Plastic HDT VICAT Tester Digital Device for Heat Deflection and Vicat Softening Point Testing Compliant with International ISO and ASTM Standards

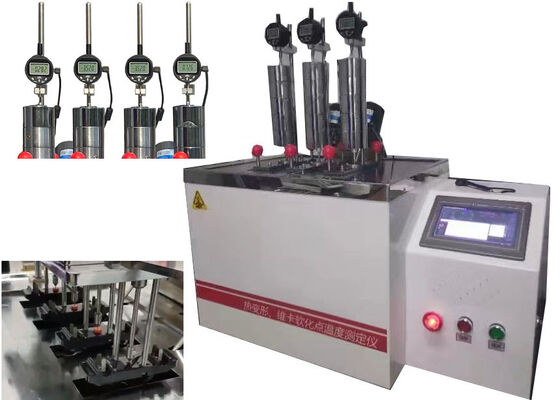

Large Image : Plastic HDT VICAT Tester Digital Device for Heat Deflection and Vicat Softening Point Testing Compliant with International ISO and ASTM Standards

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XRW-300C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Product Name:	Plastic HDT VICAT Tester Digital Device For Heat Deflection And Vicat Softening Point Testing Compliant With International ISO And ASTM Standards	Controll:	By Computer
Test Station Moving Method:	Automatic	Mainframe Type:	Desk Type
Vicat Load:	10N ± 0.2 N , 50N ± 1N	Max. Deformation Deviation:	0.001mm
Deformation Measuring Rage:	0 ~ 2.0mm	Sample Frame Number:	3 Stations Or 6 Stations
Highlight:	Plastic HDT VICAT Tester digital device , HDT VICAT Tester for heat deflection , Vicat softening point tester ISO ASTM

Plastic HDT VICAT Tester Digital Device

The Plastic HDT VICAT Tester Digital Device is engineered for precise heat deflection and Vicat softening point testing of plastic materials, fully compliant with international ISO and ASTM standards including ISO 2507, ISO 75, ISO 306, ASTM D1525, and ASTM D648.

Product Overview

This advanced testing apparatus determines thermal deformation temperature and Vicat softening point of plastic materials. During testing, specimens are fixed under constant applied load and immersed in a thermostatic liquid bath while temperature increases at standardized uniform rates. This testing is essential for product performance characterization, manufacturing quality control, and compliance evaluation.

Thermal Deformation Test

Identifies the temperature at which a standard test specimen under continuous bending stress reaches a predefined deflection value corresponding to nominal surface stress levels. This protocol is critical for plastic manufacturing quality management and material performance R&D.

Vicat Test

Quantifies the temperature at which a standard indenter penetrates 1mm into the specimen surface under specified applied load. This establishes the softening performance comparison system for different thermoplastic raw materials.

Key Features

Designed for global plastics sector growth and material research advancement
Integrated Test Stand Lifting System
Computerized central control system for operational stability
Intuitive human-machine interaction with industry-leading automation
Compliant with latest international and domestic testing specifications

Technical Specifications

Model	XRW-300C

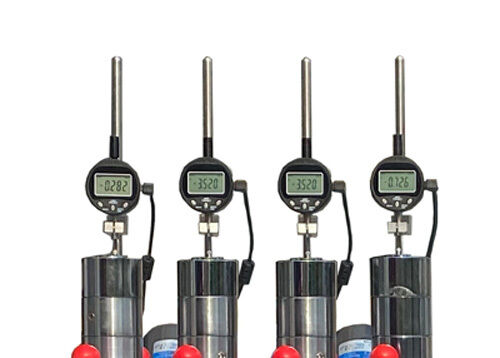

Technical Data	6 stations (tests 6 samples simultaneously) Automatic sample movement capability Air cooling above 150°C, water/natural cooling below 150°C High precision digital display dial gauge for deformation measurement Heating Rate: 50°C/h, 120°C/h Max. Temperature Deviation: ±0.5°C Deformation deviation: 0.01mm Vicat load: 10N ± 0.2N, 50N ± 1N Fiber stress: 0.455 MPa and 1.82 MPa Temperature-control Range: room temperature ~ 300°C Deformation Measuring Range: 0 ~ 10mm Sample Frame Number: 3 Test Span: 60~120mm Heating Power: 6KW Power Supply: 220V 50Hz Display: Color touch screen
Type and Display	Desk type using PLC control system
Standards	GB/T1633, GB/T1634, ISO75, ISO306, ASTM D648, ASTM D1525, ISO 2507

Standard Configuration

Main frame: 1 set
Electric cabinet: 1 set
Specimen holder: 3 sets
Vicat indenter: 3 sets
Heat deflection indenter: 3 sets
Displacement sensor: 3 sets
Power line: 2 sets
Connecting line: 2 sets
Operation manual: 1 set
Certificate: 1 set
Packing list: 1 set

Product Images

Tag:

HDT Vicat Testing Machine,

VICAT Softening Point Tester,

Heat Deflection Temperature Tester
