Hydrostatic Pressure Testing Machine Providing Precise Pressure Measurement and Leak Testing Capabilities for Assurance

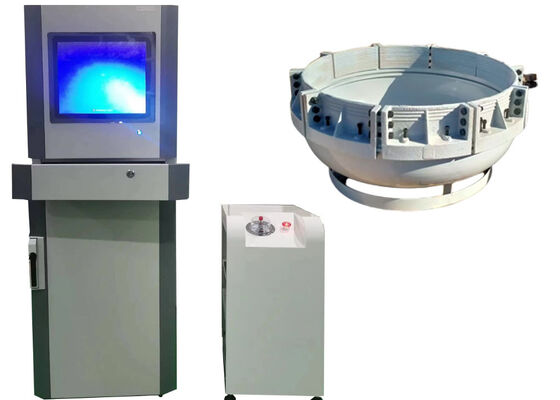

Large Image : Hydrostatic Pressure Testing Machine Providing Precise Pressure Measurement and Leak Testing Capabilities for Assurance

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-20C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Providing Precise Pressure Measurement And Leak Testing Capabilities For Assurance	Testing Range:	0-10MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine with leak testing , Hydrostatic Pressure Testing Machine for precise measurement , Hydrostatic Pressure Testing Machine with warranty

Hydrostatic Pressure Testing Machine

Providing precise pressure measurement and leak testing capabilities for quality assurance in pipeline product verification.

Applications

Purpose-built for pressure performance verification of thermoplastic and composite pipeline products including PP-R, PP-B, PPA, PE, PE-X, PVC variants (UPVC/CPVC), steel-reinforced polyethylene, and aluminum-plastic composite pipes
Quantifies duration that pipe specimens withstand sustained constant internal pressure under fixed testing temperature before structural failure, automatically capturing peak pressure values at burst moment
Standardized inspection solution for plastic pipe manufacturing sector, widely utilized by pipe production enterprises and third-party certification authorities to evaluate long-term pipeline durability under continuous pressure loading

Product Description

Hydrostatic Pressure and Burst Testing Machine tailored for performance testing of pipes and pipe fittings including PP, PE, PVC, PPR, PB and PERT
Engineered to operate stably under high-pressure and high-temperature testing environments, ideal for performance evaluation in demanding industrial and residential scenarios
Integrated with automatic pressure shut-off and emergency stop functions for operator safety
Generates highly accurate pressure-time and pressure-temperature curves for stable, credible test data to support product R&D and quality control
Fully compliant with international testing specifications including ISO1167, ISO9080 and ASTM series standards

Product Characteristics

Dual optional operating terminals: touch screen control panel or PC control system with intuitive test parameter configuration
Compact footprint under 1m², supporting up to 50 independent pressure testing circuits
Built-in intelligent identification system automatically detects test specimen size and material, matching optimized pressure boosting schemes
Ultra-high precision pressure control with selectively adjustable input pressure for each module
All metal components in contact with testing medium manufactured from high-grade corrosion-resistant stainless steel
Multi-language user interface for international customer requirements
Convenient in-test pressure calibration with optional continuous operation during calibration
Multi-level safety protection mechanisms covering electrical, mechanical and software systems
Standard TCP/IP communication protocol for stable data transmission

Compliance Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335

Technical Parameters

Parameter	Specification
Model	XGY-10C
Diameter Range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Storage Mode	PC storage
Print Mode	Color printer output
Test Pressure Range	0.1-10MPa
Control Accuracy	±1%
Display Resolution	0.01MPa
Working Range	5%~100%FS
Indication Error	±1%
Timer Range	0~10000h
Timer Accuracy	±0.1%
Timer Resolution	1s
Power	380V 50Hz three-phase four-wire 1.5KW
End Caps Models	from Φ16 to 630mm
Water Tank Size	According to pipe size
Temperature Range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or customized

Frequently Asked Questions

What is the official brand of your Plastic Pipe Hydrostatic Pressure Testing Machine?

Our Hydrostatic Pressure Testing Machine carries the official brand of TH, with all units manufactured at our dedicated production facility based in Beijing, China.

What core testing purpose does this Hydrostatic Pressure Testing Machine serve?

This Hydrostatic Pressure Testing Machine is purpose-developed to verify the hydrostatic pressure resistance performance and bursting strength of plastic pipe products.

What types of pipe materials and components are compatible with this Hydrostatic Pressure Testing Machine?

This Hydrostatic Pressure Testing Machine supports pressure performance testing for all types of plastic pipes and composite pipes, covering PP-R, PP-B, PP-A, PVC, PE, PE-X and other mainstream pipeline products.

What level of measurement precision can this Hydrostatic Pressure Testing Machine achieve?

This Hydrostatic Pressure Testing Machine delivers a measurement accuracy within 0.1% of the full-scale reading.

What is the maximum testing pressure capacity of this Hydrostatic Pressure Testing Machine?

This Hydrostatic Pressure Testing Machine supports testing pressures up to 10Mpa, equivalent to 100 bar (1450 psi).
