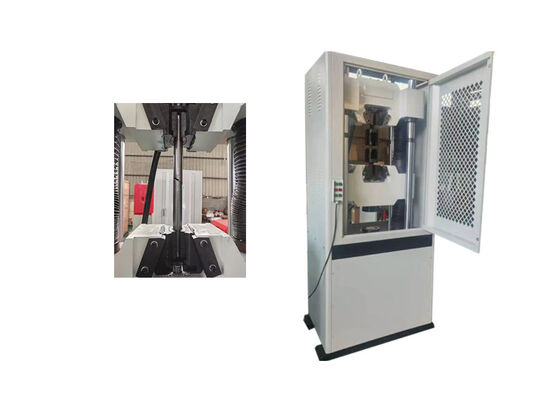

Hydraulic Universal Testing Machine with Computer Control
Automated mechanical testing and data management system for comprehensive material testing applications.
Applications
- Conducts tensile, compression, bending, shearing, and peeling tests on metallic, non-metallic, and composite materials
- Fully automated testing process compliant with GB/T228-2010 standards

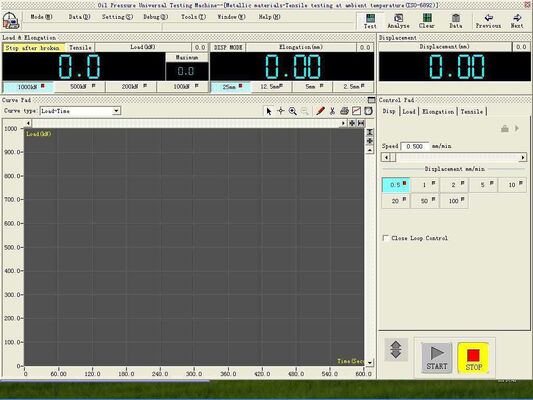

- Real-time data display with automatic curve generation and reporting
- Widely used in metallurgy, construction, light industry, transportation equipment manufacturing, and research institutions
Price Advantages
- In-house manufacturing of all core components reduces costs while maintaining premium quality
- Long-term cost savings through high-caliber testing equipment reliability
- Lower malfunction rates reduce maintenance costs and improve operational efficiency
Compliance Standards
ISO 6892, ISO 6934, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, and BSEN standards.
Host Features
- Integrated automatic control, measurement, data acquisition, display, and result processing
- Under-mounted oil cylinder design with precision oil pumps and PC servo controller
- Multi-channel closed-loop control for full automation throughout testing process
- Upgradeable system adaptable to evolving testing standards and technology
Overload Protection Systems
- Automatic overload cutoff when testing force exceeds 2-5% of maximum range
- Travel limit safety cutoff automatically shuts off pump motor at upper piston limit
Technical Parameters
| Parameter | Specification |
|---|
| Model | WAW-600D |
| Max. Test Force | 600KN |
| Structure | Four columns two ball screws, oil cylinder down-setting type |
| Load Range | 1%-100% |
| Middle Beam Elevating Speed | 200 mm/min |
| Max. Tensile Space | 700mm |
| Max. Compression Space | 600mm |
| Piston Stroke | 250mm |
| Stranded Wire Clamping Range | Φ6-40mm |
| Power Total | 2.2KW |
| Compression Plate Size | Φ160mm |
| Bending Support Roller Distance | 300mm |
Frequently Asked Questions
Does your company operate as a trading agency or run its own manufacturing factory?
We run a combined factory and trading operation model. We have specialized in the testing instruments sector for 18 consecutive years, and have built up 14 years of professional cross-border export experience.
How can we find the best-fit testing equipment for our specific needs?
Our expert technical team will offer customized, optimal equipment selection advice once you share your required test items and corresponding technical specifications with us.
What is your typical production and delivery lead time?
Most popular equipment models are kept in stock at our factory all year round. For out-of-stock models, standard delivery lead time is 15 to 20 working days after we receive your advance deposit. Special priority production arrangements can be made for urgent orders.
Do you provide customized equipment manufacturing services?
Yes, absolutely. We supply both standard-specification testing machines and fully customized units made strictly in line with your actual application requirements. Feel free to share your detailed technical needs with us, and we will do our utmost to satisfy all your requirements.
Can we arrange an on-site factory tour before placing an order?
Yes, we warmly welcome and sincerely invite you and your team to visit our production facility. We will offer full logistic support including hotel booking assistance and dedicated airport pick-up service.
What after-sales warranty services do you offer for your equipment?
Generally, all our testing equipment comes with a one-year full warranty. Within the warranty period, we provide continuous remote technical support and free replacement of defective spare parts. On-site service by our professional engineering team can be arranged when necessary.
What packaging do you use for equipment delivery, and can it ensure damage-free transit?
All finished equipment is packed with standard export heavy-duty wooden crates to provide full shock and collision protection. We have shipped a large number of testing machines to overseas markets via sea and air freight with zero transit damage records.
