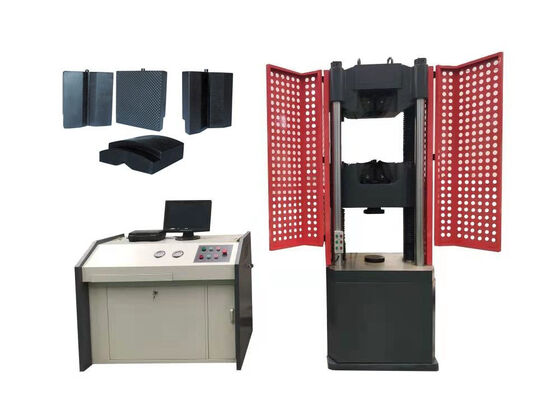

Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System

Large Image : Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	WAW-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	20~30 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydraulic Universal Testing Machine Designed For Accurate Tensile Testing With Electro Hydraulic Servo And Computer Control System	Model:	WAW-300D
Structure:	4 Columns	Control Way:	Dual Control Mode Of Manual And Electro-hydraulic Servo
Max.load:	300KN	Max. Tension Test Space:	600mm (can Customize)
Max.Compression Test Space:	530mm (can Customize)	Round Specimen Clamping Range:	Φ6-13；Φ13-26mm
Highlight:	Hydraulic Universal Testing Machine with Electro Hydraulic Servo , Universal Testing Machine for Tensile Testing , Computer Control Hydraulic Testing Machine

WAW-300D Hydraulic Universal Testing Machine

Advanced electro-hydraulic servo universal testing machine with computer control system designed for precise tensile, compression, bending, and shear testing applications.

Applications

This hydraulic universal testing machine performs mechanical property tests on metallic materials, non-metallic materials, product components, structural parts, and standard specimens. Widely used in steel, metallurgy, construction materials, quality inspection centers, hydropower, bridge engineering, research institutes, and university laboratories.

Quality & Cost Advantages

In-house R&D and manufacturing of all core components reduces intermediate costs
Premium-grade equipment delivers superior long-term cost benefits
Reduced maintenance frequency enhances operational efficiency
Competitive pricing combined with exceptional quality

Compliance Standards

ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, BSEN standards

Host Structure Features

Optimized layout with tank below main host and testing zones strategically positioned
Robust four-column, two-lead screw structure for exceptional stability
Integrated one-piece design provides ultra-high structural stiffness
Adjustable clearance lead screw-nut mechanism eliminates transmission backlash
Precision gap sealing technology enhances accuracy and extends hydraulic system life

Measurement & Control System

Full-digital control system with closed-loop control over test force, deformation, and displacement
Multiple control functions: constant stress, constant strain, constant-speed test force, constant displacement
Real-time display of peak test force, specimen deformation, piston displacement, and test curves
Mouse-operated interface with intelligent expert system control mode

Safety & Protection Systems

Overload protection activates when test force exceeds 2-5% of maximum range
Travel limit protection automatically shuts down pump motor at preset upper position

Technical Specifications

Parameter	Specification
Model	WAW-300D
Structure	4 column
Control Method	Dual control mode (manual & electro-hydraulic servo)
Maximum Load	300kN
Load Accuracy	≤±1% / ≤±0.5%
Load Range	2%-100%FS / 0.5%-100%FS
Load Resolution	1/300,000
Deformation Measurement Range	2%～100%FS
Deformation Accuracy	≤±1% / ±0.5%
Displacement Resolution	0.01mm
Displacement Error	≤±0.5%
Maximum Piston Stroke	250mm
Piston Speed Range	0-50mm/min (stepless adjustment)
Crosshead Lifting Speed	120mm/min
Maximum Tension Space	600mm (customizable)
Maximum Compression Space	530mm (customizable)

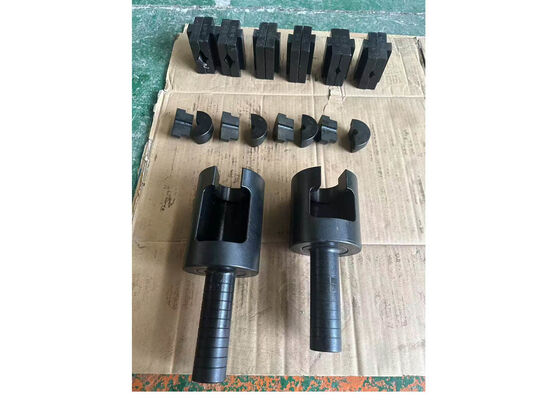

Clamping Method	Hydraulic Automatic Clamp Fixture
Round Specimen Range	Φ6-13mm; Φ13-26mm
Flat Specimen Range	0-15mm
Compression Plate Size	φ160mm
Power Supply	3-phase, AC380V, 50Hz (customizable)
