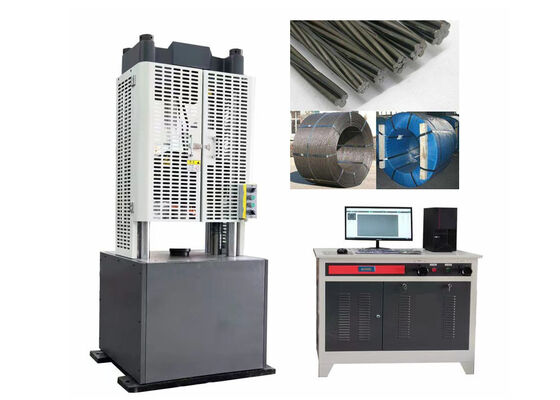

Hydraulic Universal Testing Machine Designed for Steel Strand and Rebar Testing Compliant with GB ASTM DIN ISO JIS and BS Standards

Large Image : Hydraulic Universal Testing Machine Designed for Steel Strand and Rebar Testing Compliant with GB ASTM DIN ISO JIS and BS Standards

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001 , CE
Model Number:	WAW-600G

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydraulic Universal Testing Machine Designed For Steel Strand And Rebar Testing Compliant With GB ASTM DIN ISO JIS And BS Standards	Model:	WAW-600G
Structure:	6 Columns	Control Way:	Manual & Automatic
Max.load:	600KN	Max. Tension Test Space:	700(can Customize)
Max.Compression Test Space:	600mm (can Customize)	Load Range:	±1%-100%FS
Electronic Extension Meter:	10/50	Round Specimen Range:	φ13~φ40mm
Flat Specimen Clamping Range:	0-30mm	Clamping Method:	Hydraulic Clamping
Highlight:	Hydraulic Universal Testing Machine for steel strand , Hydraulic Universal Testing Machine compliant with ASTM , Rebar testing Hydraulic Universal Testing Machine

Hydraulic Universal Testing Machine for Steel Strand and Rebar

Advanced hydraulic universal testing machine specifically designed for mechanical property testing of prestressed steel strands and steel rebars, compliant with international standards including GB, ASTM, DIN, ISO, JIS, and BS.

Product Overview

Specialized jaw design ensures accurate fracture positioning for steel strand testing
Comprehensive testing capabilities for steel strands and reinforcement bars
Full compliance with GB/T5224-2014 and ISO 6934-4 standards
Multi-standard testing support for global market requirements

Quality and Value Advantages

In-house manufacturing of all core components reduces costs and ensures quality consistency
Superior long-term value compared to low-cost alternatives
Minimal equipment failure rate reduces maintenance costs and improves operational efficiency
Competitive pricing combined with premium quality delivers exceptional economic benefits

Equipment Expandability

Modular design supports additional fixtures for diverse testing applications
Bolt fixtures for tensile testing and load protection tests
Bending fixtures for round bars and plate bending tests
Shear fixtures for shear strength testing
Compression space accessories for concrete and cement sample testing
Special fixtures for steel balls, anchor chains, fasteners, and other products

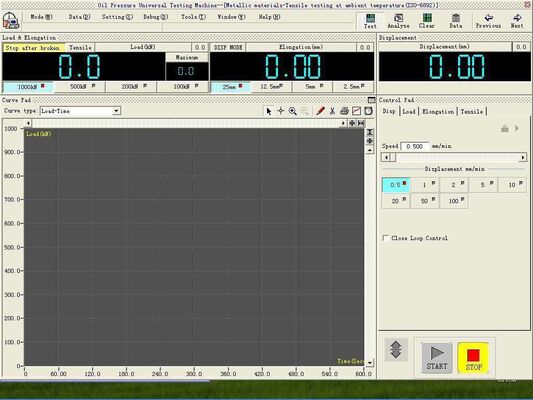

Software System Features

Windows-based testing software with programmable functions
Multiple test modes: constant-rate test force control, constant-rate displacement control, test force holding, and displacement holding
Comprehensive data management: display, curve plotting, processing, storage, and printing
Computer-controlled servo valve regulation for precise flow control
Hierarchical file management system with flexible parameter settings

Compliance Standards

ISO 6892, ISO 6934, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, and BSEN standards.

Technical Specifications

Parameter	Specification
Model	WAW-600G
Structure	4 columns and 2 screws
Control Method	Manual loading process control, computer automatic data processing
Maximum Load	600kN
Load Accuracy	≤±0.5%
Load Range	2%-100%FS
Isokinetic Stress Control Range	2-60 (N/mm²•S⁻¹)
Stress Rate Error	≤±0.5%
Load Resolution	1/600000
Deformation Measurement Range	2%～100%FS
Deformation Accuracy	≤±0.5%
Displacement Resolution	0.01 mm
Displacement Error	≤±0.5%
Maximum Piston Stroke	250 mm
Maximum Piston Speed	0.5-100 mm/min (Manual adjustment)
Crosshead Lifting Speed	300 mm/min
Maximum Tension Test Space	700 mm (Customizable)
Maximum Compression Test Space	600 mm (Customizable)
Clamping Method	Hydraulic clamp
Round Specimen Clamping Range	φ13-φ40 mm (13-26, 26-40)
Flat Specimen Clamping Range	0-15, 15-30 mm
Flat Specimen Clamping Width	80 mm
Compression Plate Size	200×200 mm
Bending Roller Distance	450 mm
Width of Bending Rollers	120 mm
Power Supply	3-phase, AC380V, 50Hz (Customizable)
Weight and Dimensions	2100 KG, 960×750×2270 mm

Packaging and Shipping

Frequently Asked Questions

Is your company a pure trading firm or do you operate your own manufacturing factory?

We run an integrated manufacturing and trading business model. We have specialized in testing instruments for 18 years with 14 years of professional cross-border export experience.

How can we find the most suitable testing equipment for our specific testing needs?

Our expert technical team provides customized equipment selection advice based on your required test items and technical specifications.

What is your typical manufacturing and delivery lead time?

Popular models are kept in stock year-round. Out-of-stock items typically deliver in 15-20 working days after deposit. Priority processing available for urgent orders.

Do you provide customized equipment manufacturing services?

Yes, we supply both standard testing machines and fully customized units made to your exact application requirements.

Can we arrange an on-site factory tour before placing an order?

Yes, we warmly welcome factory visits and provide full logistic support including hotel booking assistance and airport pick-up service.

What after-sales warranty services do you offer for your equipment?

All equipment comes with a one-year full warranty including remote technical support and free replacement of faulty parts. On-site service available when necessary.

What packaging do you use for equipment delivery, and can it ensure damage-free transit?

All equipment is packed with standard export heavy-duty wooden crates for full protection. We have shipped numerous machines internationally with zero transit damage records.
