Hydraulic Universal Testing Machine with Compact Mainframe Layout Chain Drive and Reduced Height for Space Material Testing

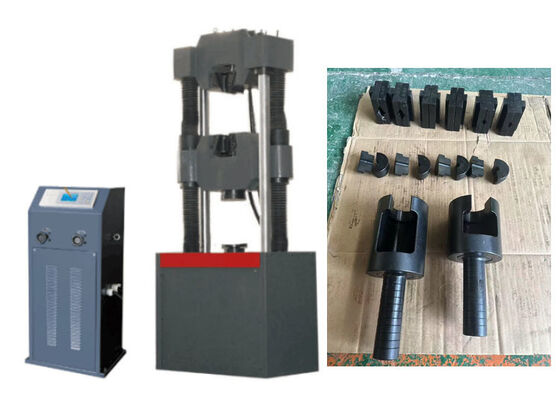

Large Image : Hydraulic Universal Testing Machine with Compact Mainframe Layout Chain Drive and Reduced Height for Space Material Testing

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	WE-300B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~20 work days
Payment Terms:	D/,T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydraulic Universal Testing Machine With Compact Mainframe Layout Chain Drive And Reduced Height For Space Material Testing	Structure:	2 Columns And 2 Screws
Max.load:	300KN	Load Accuracy:	±1%
Circular Sample Clamping Diameter:	Φ13～Φ40mm	Flat Specimen Clamping Thickness:	30mm
Display:	LCD
Highlight:	Hydraulic Universal Testing Machine with Compact Mainframe , Hydraulic Universal Testing Machine with Chain Drive , Hydraulic Universal Testing Machine with Reduced Height

Hydraulic Universal Testing Machine

Compact mainframe layout with chain drive and reduced height design for efficient space material testing applications.

Testing Applications

This hydraulic universal testing machine performs tensile, compression, bending, and shear tests on metallic and non-metallic materials. It supports specialized testing scenarios including brick flexural and compression testing, as well as tensile, compression, and bending testing for steel reinforcing bars.

Testing Capabilities

Constant-rate loading, deformation, and displacement testing
Smooth switching between force control, deformation control, and displacement control modes within single test cycles
Compliance with GB228.1-2010 and full range of GB/ISO testing specifications

Industry Applications

Broad application across civil transportation material testing, engineering quality inspection, academic research in colleges and universities, and quality management in industrial and mining enterprises.

Equipment Features

Mainframe Structure

Compact mainframe with optimized internal layout
Significantly reduced overall height while maintaining same test space compared to top-mounted models
Heavy-duty chain drive transmission system
Unique lead screw clearance elimination mechanism for uninterrupted test loading
Independent hydraulic clamping mechanism for long-term reliable performance
Prevents specimen fragment splashing during tensile fracture for operator safety

Force Measurement System

High-precision load sensors for force detection with real-time force values displayed on LCD screen. Achieves national standard first-grade measurement accuracy with loading speed tracking and full-range overload protection.

Standard Configuration

Main host unit and matched hydraulic oil source unit
Oil supply valve and oil return valve
High-precision load cell
Displacement transducer (integrated photoelectric encoder)
Heavy-duty oil pump
Main drive motor
Matched gear motor
Electromagnetic reversing valves (2 units)
Complete precision measurement system and LCD display unit
Complete set of tensile test fixtures
Complete set of compression test fixtures

Technical Parameters

Model	WE-300B
Structure	2 columns and 2 screws
Max. Force (kN)	300
Force Measuring Range	2%～100%FS
Force-measure Accuracy	±1%
Resolution of Force	400000 yards, no split, no change in resolution
Deformation Measurement Range	2%～100%FS
Deformation Indication Accuracy	±1%
Deformation Resolution	2
Accuracy of Displacement Indication	±1%
Stress Control Speed (Mpa/s)	1～45
Stress Control Speed (mm/s)	0.001～0.5
Displacement Control Speed (mm/s)	0.02～3
Adjustment Mode of Lower Beam Position	Sprocket drive
Max. Tensile Space (mm)	600
Max. Compression Space (mm)	550
Effective Width (mm)	440
Piston Stroke (mm)	200
Overall Dimension (L×W×H) (mm)	700×520×1970
Control Platform (mm)	1200×600×750
Circular Sample Clamping Diameter (mm)	Φ5～Φ32
Flat Specimen Clamping Thickness (mm)	15
Power (kW)	2
