Hydraulic Universal Testing Machine for Tensile Compression Bending and Flexural Tests on Metal and Nonmetal Materials

Large Image : Hydraulic Universal Testing Machine for Tensile Compression Bending and Flexural Tests on Metal and Nonmetal Materials

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	WAW-2000D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	20~30 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydraulic Universal Testing Machine For Tensile Compression Bending And Flexural Tests On Metal And Nonmetal Materials	Model:	WAW-2000D
Structure:	6 Columns	Control Way:	Dual Control Mode Of Manual And Electro-hydraulic Servo
Max.load:	2000KN	Max. Tension Test Space:	1000mm (can Customize)
Max.Compression Test Space:	800mm (can Customize)	Round Specimen Clamping Range:	φ26-40mm, φ40-60mm
Highlight:	Hydraulic Universal Testing Machine for metal materials , Universal Testing Machine for tensile compression , Hydraulic Testing Machine with bending flexural tests

Hydraulic Universal Testing Machine

Advanced hydraulic universal testing machine designed for comprehensive tensile, compression, bending, and flexural testing of both metallic and non-metallic materials.

Applications

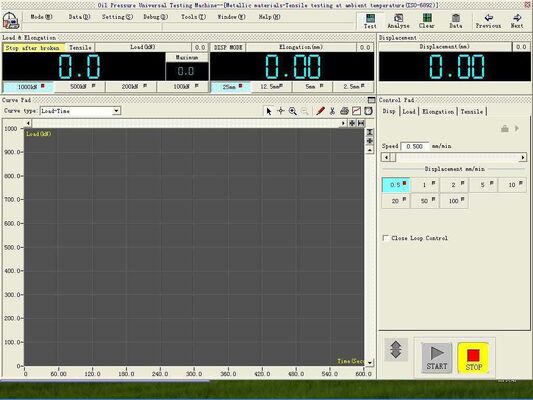

Utilizes hydraulic loading technology with computerized control system for intuitive operation
Performs tensile, compression, bending, flexural and other mechanical tests on metallic materials
With auxiliary fixtures, tests wood, concrete, cement, rubber and other materials
Ideal for testing high toughness and high hardness properties under extreme loading conditions

Compliance Standards

Verified to meet technical requirements of international standards including ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, BSEN and other relevant industry standards.

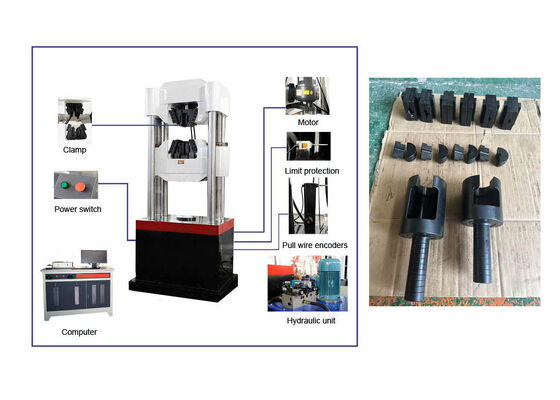

Host Features

Optimized spatial layout with fuel tank positioned under main host
Heavy-duty four-column, two-lead screw frame construction for outstanding stability
Monolithic integrated design providing ultra-high structural rigidity
Clearance-eliminating lead screw-nut mechanism for improved measurement performance
Gap sealing technology for fuel tank enhancing accuracy and extending hydraulic system lifespan

Safety Protection Systems

Overload safety interlock activates when test force exceeds 2-5% of maximum range
Travel limit safety interlock automatically stops pump motor at predetermined upper limit

Technical Specifications

Model	WAW-2000
Structure	6 column
Control Method	Dual control mode of manual and electro-hydraulic servo
Maximum Load	2000kN
Load Accuracy	≤±1% / ≤±0.5%
Load Range	2%-100%FS / 0.5%-100%FS
Load Resolution	1/300000
Deformation Measurement Range	2%～100%FS
Deformation Accuracy	≤±1%/±0.5%
Displacement Resolution	0.01mm
Displacement Error	≤±0.5%
Maximum Piston Stroke	250mm
Maximum Piston Speed	0-50mm/min stepless speed adjusting
Crosshead Lifting Speed	120mm/min
Maximum Tension Test Space	1000mm (customizable)
Maximum Compression Test Space	800mm (customizable)
Effective Width	440mm
Clamping Method	Hydraulic Automatic Clamp Fixture
Round Specimen Range	φ26-40mm, φ40-60mm
Flat Specimen Range	0-15mm (15-35mm Optional)
Compression Plate Size	φ160mm
Power Supply	3-phase, AC380V, 50Hz (customizable)
