Hydrostatic Pressure Testing Machine Providing Precise Control and Measurement Capabilities for Industrial Applications

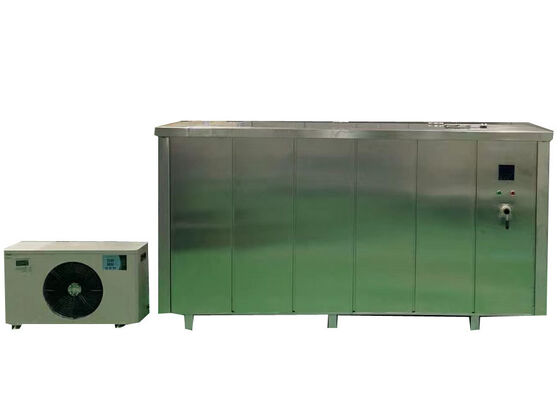

Large Image : Hydrostatic Pressure Testing Machine Providing Precise Control and Measurement Capabilities for Industrial Applications

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-16C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Providing Precise Control And Measurement Capabilities For Industrial Applications	Testing Range:	0-16MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ16-630mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine with precise control , Industrial Hydrostatic Pressure Testing Machine , Hydrostatic Pressure Testing Machine measurement capabilities

Hydrostatic Pressure Testing Machine

Professional hydrostatic pressure testing equipment providing precise control and measurement capabilities for industrial applications. Engineered for reliability and accuracy in pressure testing scenarios.

Key Applications

Pressure testing of pipes, pipe fittings, valves, and related components
Operating temperature range: 10-95℃ for diverse application scenarios
Simple operation with automated pressure calculation based on input parameters
RS232 serial communication for seamless data transmission

Standards Compliance

Meets international and domestic standards including ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, ISO13479, GB/T 6111, and GB/T 15560 for accurate and reliable test results.

Product Features

Pressure-time and pressure-temperature test curve functions
High control accuracy: ±1% for precise and reproducible results
Customizable configurations with 5, 10, 12, 15, 20, 25, 50+ workstation options
OEM customization services available
Suitable for hydrostatic pressure and bursting tests on PE, PVC, PPR, ABS pipe materials

Certified Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335

Technical Specifications

Model	XGY-16C
Diameter Range	Φ16-630mm
Available Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Pressure Range	0.1-16MPa
Control Accuracy	±1%
Display Resolution	0.01MPa
Timer Range	0-10000h
Timer Accuracy	±0.1%
Power Requirements	380V 50Hz three-phase four-wire 1.5KW
Temperature Range	15-95℃
Dimensions (Three Stations)	715×625×1700(mm) or custom

Frequently Asked Questions

What is the official brand name of your Plastic Pipe Hydrostatic Pressure Testing Machine?

Our Hydrostatic Pressure Testing Machine carries the official TH brand, manufactured at our facility in Beijing, China.

What is the core function of this Hydrostatic Pressure Testing Machine?

This machine measures hydrostatic pressure resistance and bursting strength of plastic pipes with high precision.

What categories of pipes and materials are suitable for testing?

Applicable for plastic and composite pipes including PP-R, PP-B, PP-A, PVC, PE, PE-X and other pipe materials.

What level of measurement precision does this machine achieve?

Measurement accuracy within 0.1% of full-scale range for reliable results.

What is the highest test pressure supported?

Maximum test pressure up to 10MPa (100 bar, 1450 psi).

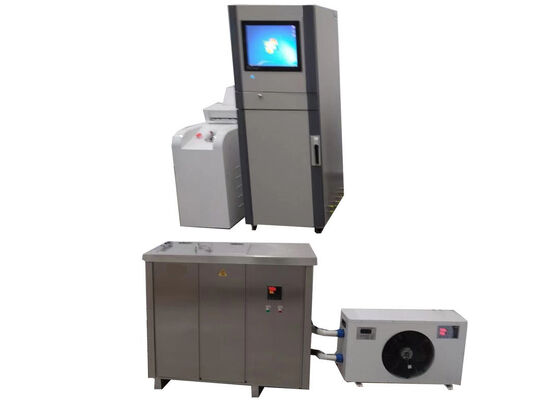

Product Images
