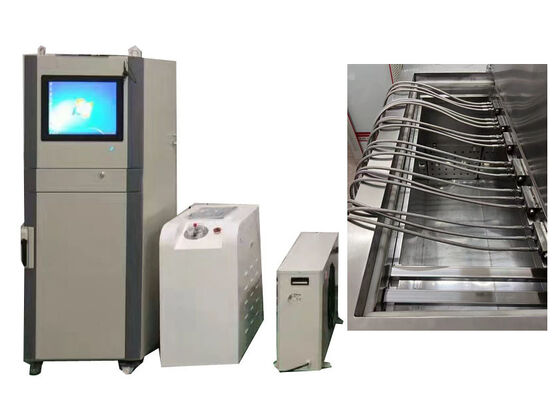

Hydrostatic Pressure Testing Machine
Designed for precise leak detection and pressure resistance testing of industrial equipment, this hydrostatic pressure testing machine delivers reliable performance for pipeline inspection and quality assurance.
Product Overview
Developed with sophisticated industrial testing technology, this hydrostatic pressure testing machine provides high-precision pressure detection for pipeline inspection. It supports multiple pressure display units including Bar, psi and MPa, and is functional for both constant pressure holding tests and pipe bursting tests.
The equipment maintains a test precision range of -1% to +2% and integrates dual operating modes covering manual and fully automatic operation. It generates real-time pressure-time and pressure-temperature test curves throughout the testing procedure.
Key Features
- Product Name: Hydrostatic Pressure Testing Machine
- Available Test Types: Constant Pressure Test and Bursting Test
- Power Supply: AC220V / 50Hz
- Operational Test Temperature: 15℃ to 95℃
- Measurement Precision: -1% to +2%
- Testing Pressure Range: 0 to 100bar
- Applicable Pipeline Caliber: DN20 to DN1800mm

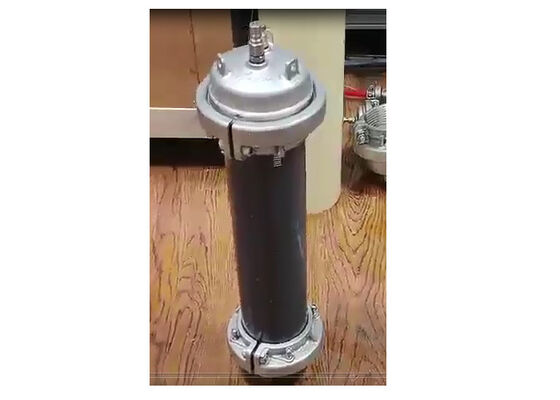

- Equipped Accessories: Custom end caps
- Core Test Function: Bursting test support
Technical Specifications
| Name |
Hydrostatic Pressure Testing Machine |
| Data Output |
USB/RS232/RS485/Ethernet |
| Data Storage |
Yes |
| Test Mode |
Manual/Automatic |
| Pressure Unit |
Bar/psi/MPa |
| Safety Protection |
Over Pressure/Over Temperature |
| Test Curve |
Pressure-time And Pressure-temperature |
| Power Supply |
AC220V/50Hz |
| Test Type |
Constant Pressure And Bursting |
| Test Temperature Range |
15~95℃ |
| Standard |
ISO 1167, ASTM D1598, ASTM D1599 |
Applications
Manufactured by TH in Beijing, China, this sophisticated testing apparatus adopts an optimized control system composed of PLC and PC, paired with a human-machine interactive interface for stable and intuitive operation.
The equipment is applicable for testing pipe components with specifications between DN20 and DN1800mm, fully conforming to test criteria of ISO 1167, ASTM D1598 and ASTM D1599. It features dual operating modes including manual and automatic options, enabling operators to acquire precise and repeatable test data with simplified operational procedures.
Support and Services
- Diagnosing faults and resolving issues on installed equipment
- Supplying professional guidance regarding installation procedures and daily maintenance
- Executing overhaul work for mechanical and electrical assemblies
- Conducting on-site setup and calibration for newly commissioned units
- Handling customer inquiries and feedback in a timely manner
Our technical personnel provide 24/7 technical guidance and on-demand support. Preventive maintenance packages are also available to sustain optimal operating status and ensure high-efficiency continuous operation.
Frequently Asked Questions
Which brand produces the Hydrostatic Pressure Testing Machine?
The Hydrostatic Pressure Testing Machine is branded TH, a professional equipment manufacturer based in Beijing, China.
What is the core application of the Hydrostatic Pressure Testing Machine?
This machine is engineered to evaluate the pressure bearing capacity of test specimens, serving to verify the operational safety of pipelines and various pressure vessel facilities.
What is the maximum measurable pressure of the Hydrostatic Pressure Testing Machine?
The Hydrostatic Pressure Testing Machine supports a maximum testing pressure of 100 bar.
What types of pipes are compatible with the Hydrostatic Pressure Testing Machine?
It is applicable to the testing of multiple mainstream plastic pipe materials, including PP, PE, PVC, PPR and other similar tubular products.
Is the Hydrostatic Pressure Testing Machine fitted with safety protection functions?
Absolutely. The machine is configured with built-in safety valves. Once the system pressure exceeds the preset threshold values, the valves will trigger an automatic shutdown to protect the entire testing system.
