Hydrostatic Pressure Testing Machine
Designed to support assurance programs in manufacturing and maintenance operations, this professional testing system evaluates hydrostatic pressure resistance and bursting strength performance of plastic pipes and fittings.
Product Overview
This advanced testing system is engineered for long-term internal pressure testing of pipes and pipe fittings under preset pressure thresholds. The unit automatically shuts down when specimens rupture or test procedures complete, while recording real-time pressure curves and generating formal test reports.
Control System
The equipment utilizes precision solenoid valves for pressure filling and releasing operations. Advanced pressure stabilization is achieved through intermittent valve actuation, delivering highly accurate pressure regulation. Integrated intelligent functions include automatic constant pressure maintenance, electric pressure relief, system cleaning, and automatic calibration.
Key Features
- Product Name: Hydrostatic Pipe Pressure Testing Machine
- Testing Medium: Clean water
- Available Pressure Scope: 0~160 bar
- Switchable Pressure Units: MPa, BAR, PSI
- Display Module: LCD display screen
- Recordable Test Curves: Pressure-time curve, Pressure-temperature curve
- Control Mode: Computer-based operation
- Applicable Specimen Caliber: DN8 up to DN1800mm
- Upper Limit of Test Pressure: 16 MPa
Compliance Standards
ISO 1167, ASTM D1598, ISO9080, CJ/T108, ASTM F1335 and other relevant standards.
Technical Parameters
| Parameter |
Specification |
| Model |
XGY-16C |
| Diameter Range |
8-1800mm |
| Stations |
3, 6, 12, 15, 20, 50 (customizable) |
| Control Mode |
Micro-control, industrial PC control |
| Display Mode |
Industrial PC LCD color display |
| Storage Mode |
PC storage |
| Print Mode |
Color printer output |
| Test Pressure Range |
16 MPa |
| Control Accuracy |
±1% |
| Display Resolution |
0.01MPa |
| Working Range |
5%~100%FS |
| Indication Error |
±1% |
| Timer Range |
0~10000h |
| Timer Accuracy |
±0.1% |
| Timer Resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.0KW |
| Dimensions (three stations) |
720×620×1700(mm) or customized |
Applications
This cost-effective, versatile testing instrument is extensively applied for internal pressure detection of various plastic pipes including PP-R, PP-B, PP-A, PVC, PE, and PE-X materials. Ideal for building material enterprises, pipe manufacturing factories, national inspection institutions, and research laboratories.
Support & Services
- On-site equipment installation and commissioning
- Fault diagnosis and technical consultation
- Equipment overhaul and periodic maintenance
- Supply of original spare components and consumables
- System software updates and function upgrades
Frequently Asked Questions
Which brand manufactures the Plastic Pipe Hydrostatic Pressure Testing Machine?
The Plastic Pipe Hydrostatic Pressure Testing Machine is branded TH, with independent production and manufacturing based in Beijing, China.
What core testing functions does this machine perform?
This professional testing device evaluates hydrostatic pressure resistance and bursting strength performance of various plastic pipe products.
What types of pipes are compatible with this testing machine?
This testing device is applicable for performance detection of plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, and PE-X materials.
What measurement precision does the machine achieve?
The Hydrostatic Pressure Testing Machine features high detection precision, with measurement error controlled within 0.1% full scale.
What is the maximum test pressure capability?
This testing equipment supports a maximum test pressure of 10MPa, equivalent to 100 bar (1450 psi).

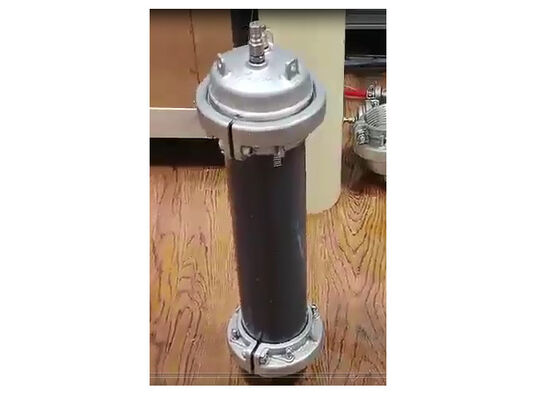

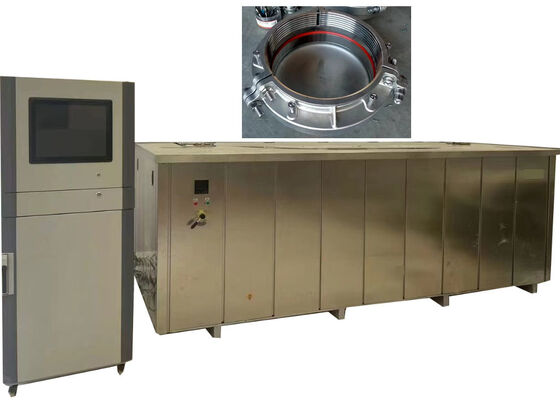

Product Images
