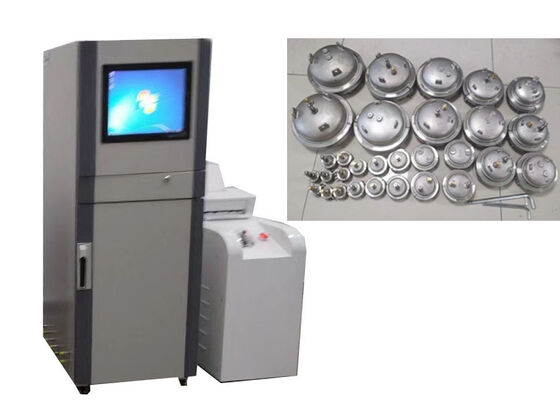

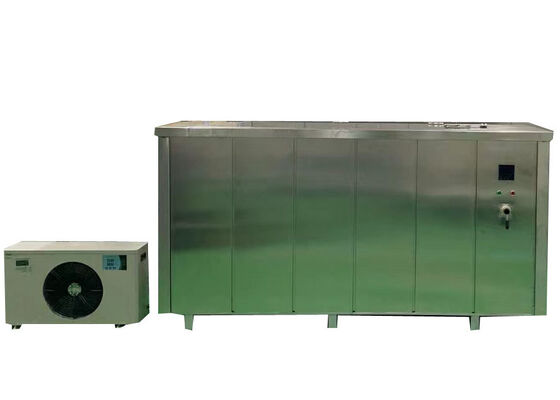

Hydrostatic Pressure Testing Machine capable of performing precise pressure tests on industrial fluid handling equipment

Large Image : Hydrostatic Pressure Testing Machine capable of performing precise pressure tests on industrial fluid handling equipment

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Capable Of Performing Precise Pressure Tests On Industrial Fluid Handling Equipment	Maximum Test Pressure:	10MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1400mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine for industrial equipment , precise pressure testing machine , fluid handling pressure test machine

Hydrostatic Pressure Testing Machine

Precision testing equipment for industrial fluid handling equipment with advanced hydrostatic pressure capabilities.

Product Overview

The Plastic HDPE Pipe Hydrostatic Water Burst Pressure Testing Machine is engineered to assess short-term hydraulic burst performance of thermoplastic pipes under sustained internal water pressure within stable temperature environments. This apparatus is suitable for conducting performance verification on thermoplastic pipelines designed for fluid transportation applications.

Key Features

State-of-the-art structural design with air-free hydraulic pressurization system using water as working medium
Imported solenoid valves for excellent operational stability and long-term reliability
High-pressure pump assembly with imported high-performance pump heads for stable output
Independent testing channels allowing simultaneous batch testing of different pipe specifications
Anti-power-failure protection mechanism with automatic data recovery and retention

Compliance Standards

This testing equipment complies with international and domestic standards including EN921, ISO 1167, GB/T6111, GB/T15560, ASTM D1598 and ASTM D1599 for plastic pipe hydrostatic pressure and burst testing.

Technical Specifications

Model	XGY-10C
Diameter Range	Φ8-1400mm
Stations	3, 5, 10, 15, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Test Pressure Range	0.2-10MPa, 0.02-100Bar
Control Accuracy	±1%
Timer Range	0~10000h
Power Requirements	380V 50Hz three-phase four-wire 1.5KW
Temperature Range	15-95℃

Support & Services

On-site installation and system commissioning
Technical fault diagnosis and professional guidance
Equipment overhaul, maintenance and fault rectification
Supply of original spare parts and consumables
System optimization, software iteration and functional upgrades

Frequently Asked Questions

Which brand manufactures the Plastic Pipe Hydrostatic Pressure Testing Machine?

The Plastic Pipe Hydrostatic Pressure Testing Machine is branded TH, with professional production and manufacturing base located in Beijing, China.

What testing functions does this machine perform?

This professional testing apparatus examines hydrostatic pressure resistance and burst strength performance of various plastic pipeline products.

What materials and pipelines can be tested?

Applicable for performance detection of plastic and composite pipelines including PP-R, PP-B, PP-A, PVC, PE and PE-X materials.

What is the precision level of this testing machine?

The Hydrostatic Pressure Testing Machine features precise detection capability with measurement error controlled within 0.1% full scale.

What is the maximum testing pressure range?

This testing device supports a maximum working test pressure of 10MPa, equivalent to 100 bar (1450 psi).
