Hydrostatic Pressure Testing Machine Featuring Embedded Computer Control and Modular Design for Pipe Testing Operations

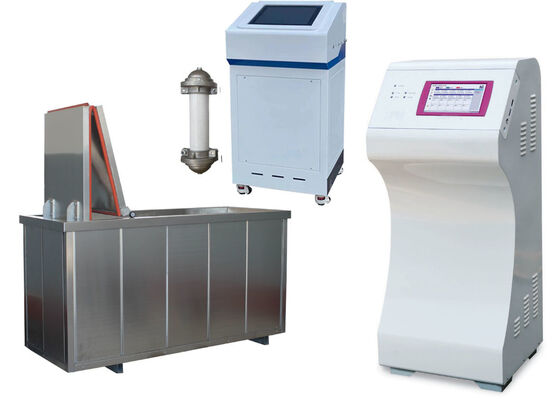

Large Image : Hydrostatic Pressure Testing Machine Featuring Embedded Computer Control and Modular Design for Pipe Testing Operations

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Featuring Embedded Computer Control And Modular Design For Pipe Testing Operations	Model:	XGY-10C
Max. Pressure:	10MPA, 100BAR, 16MPA, 160BAR	Pressure Resolution:	0.01MPA, 0.1BAR
Test Stations:	5, 10, 15, 20, 25, 30, 50 Can Customized	Temp. Range:	15-95 ℃
Constant Pressure Accuracy:	-1%~+2%	Material Of Water Tank:	304# Stainless Steel
Material Of End Caps:	304# Stainless Steel Or Carbon Steel	Standards:	ISO 1167, ASTM D1598/1599, ISO 4427
Highlight:	Hydrostatic Pressure Testing Machine with embedded computer control , Hydrostatic Pressure Testing Machine modular design , Hydrostatic Pressure Testing Machine for pipe testing

Hydrostatic Pressure Testing Machine

Advanced embedded computer control system with modular design for comprehensive pipe testing operations, compliant with international standards including ISO 4427 for plastic pipeline testing.

Product Overview

This hydrostatic pressure testing equipment evaluates two critical performance indicators of thermoplastic pipes: instantaneous hydraulic burst capacity and long-term constant internal pressure resistance. Essential laboratory equipment for research institutions, quality supervision authorities, and plastic pipe manufacturing enterprises.

System Features

Industrial tablet controller for direct operation and parameter regulation
Multiple test channels with high-precision pressure regulation assemblies
Independent modular channel control - abnormal conditions on one station don't affect others
Multiple station configurations available: 5, 10, 15, 20 stations with custom options up to 60+ stations
Supports both hydrostatic endurance tests and instantaneous burst tests
Pressure specifications: 10MPa, 16MPa, 20MPa, 30MPa with custom grades available
Pipe diameter range: Φ16 to 2000 mm with custom sizing solutions
Comprehensive testing system tracking eight distinct working statuses
Built-in power failure safeguard with automatic data recovery
Multi-language software interface for international clients

Compliance Standards

ASTM D1598-2015 - Standard Test Method for Time-to-Failure of Plastic Pipe Under Constant Internal Pressure
ISO 1167-2006 - Thermoplastics pipes, fittings and assemblies for the conveyance of fluids
ASTM D1599 - Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings

Technical Specifications

Pipe diameter range	Φ8~Φ1800mm
Working stations	5, 10, 15, 20, 25, 30 or 50 (customizable)
Operation mode	PC control
Pressure range	0.2~10MPa (customizable)
Pressure resolution	0.001MPa, 0.01Bar
Pressure control accuracy	-1%~+2%
Measuring range	5%~100% F.S.
Timing range	1s~9999H 99M 99S
Timing accuracy	±0.1%

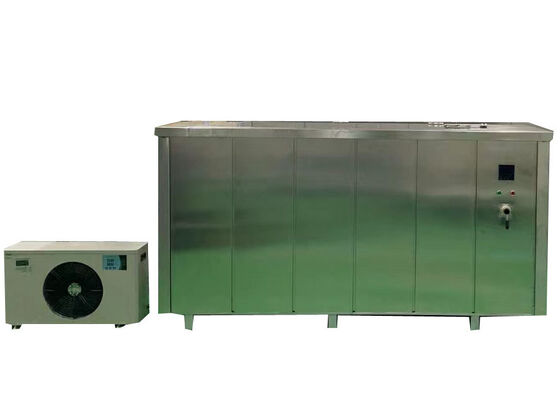

Temperature control system	15~95℃ with cooling system
Temperature control accuracy	±0.5℃
Power supply	380V, three-phase four-wire system
