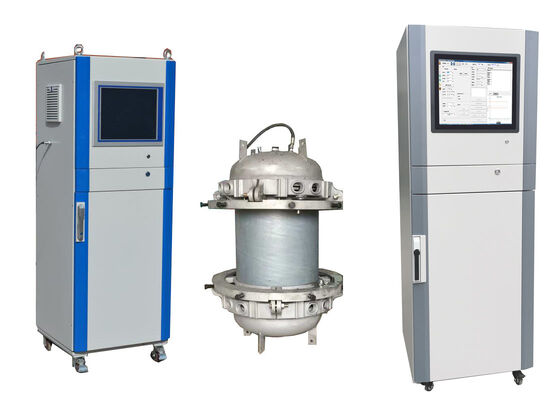

Hydrostatic Pressure Testing Machine with Printing and Display Capabilities for Comprehensive Pipe Testing and Reporting

Large Image : Hydrostatic Pressure Testing Machine with Printing and Display Capabilities for Comprehensive Pipe Testing and Reporting

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C-Ⅴ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard wooden case
Delivery Time:	10 days after order
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine With Printing And Display Capabilities For Comprehensive Pipe Testing And Reporting	Control Mode:	Computer
Stations:	3, 4, 5, 6, 8, 10, 15, 20, 45 Stations(can Customize)	Meet Standard:	ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599 ISO13479
Max. Pressure:	10Mpa(can Be Customized), 1500PSI, 100Bar	End Caps:	Diameter From Φ6mm To Φ2000mm
Temperature Range:	15℃-95℃	Pressure Unit:	MPA, PSI, Bar
Temperature Unit:	℃, ℉
Highlight:	Hydrostatic pressure testing machine with printing , Pipe testing machine with display capabilities , Hydrostatic pressure tester for comprehensive reporting

Hydrostatic Pressure Testing Machine with Printing and Display Capabilities

Comprehensive pipe testing and reporting solution for thermoplastic pipes used in fluid transportation applications.

Function & Applications

The ISOXGY-10C Hydrostatic blasting tester evaluates instantaneous hydraulic burst performance and long-term constant pressure failure duration of thermoplastic pipes
Essential laboratory equipment for scientific research institutions, third-party quality inspection authorities, and professional pipe manufacturing enterprises
Advanced microcomputer control technology with Windows system operation
Supports preset configuration, automatic parameter storage, real-time curve display and analysis, and automatic test report generation and printing
Complies with national standards, international standards, and customized user specifications
Performs comprehensive analysis, processing, and printed output of all experimental data

Compliance Standards

GB/T6111-2018, GB/T15560-1995, GB/T18252-2008, GB/T18476-2001, ASTM D1598-2004, ASTM D1599, ISO1167, ISO13479, ISO9080, DIN EN 921 (1995-01), and ASTM F1335

Technical Specifications

Maximum Pressure	10MPa
Test Stations	3, 4, 5, 6, 8, 10, 15, 20, 45 stations (customizable)
Control Mode	Computer Control
Data Preservation	Each station has power-off data protection function with automatic restoration upon startup
Timing Range	0~9999 h 59 min
Timing Accuracy	±0.1%
Time Resolution	1s
Minimum Set Unit	min
Pressure Control Range	0.2~10MPa
Pressure Indicator Units	MPa, bar or PSI
Pressure Control Accuracy	-1%~ +2%
Constant Voltage Control Precision	Within ±1% of full load range
Pressure Display Resolution	0.001MPa, 0.01bar or 1PSI
Measuring Range	4%~100%FS
Allowable Error Limit	Within 1%

Main Frame Structural Characteristics

Innovative dual-pipe loop architecture eliminates pressure deviation between test sample and pressure sensor, ensuring superior testing accuracy compared to conventional single-circuit designs.

Integrated Modular Assembly

Functional modules configured with 5 or 6 test stations operating autonomously without mutual interference. Each station supports independent pressure parameters from 0.2 MPa to full load capacity. Pipe rupture on one channel doesn't disrupt other ongoing tests.

Complete Functionality

Automatic rupture recognition and real-time operational monitoring
Pressure retention upon power loss with automatic data restoration after power recovery
Test result archiving and report printout functions
Multi-language operating interface (Chinese and English) for global client demands
Pressure measurement unit reference horizontal datum aligns perfectly with constant-temperature medium tank surface

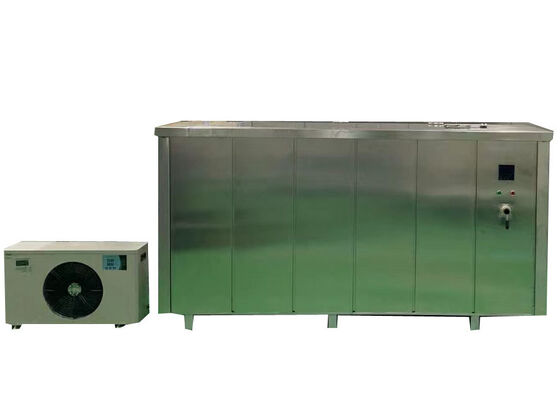

Constant-Temperature Tank Features

Tank assembly includes housing, imported circulating pump, heating assembly, and thermal insulation circulation system
Framework constructed with structural support frames, base plates, and 304 stainless steel inner liners
Dense rigid polyurethane foam insulation stabilizes internal temperature uniformity and reduces power consumption
Optional automatic lifting and sealing actuator available for bath lid

End Caps and Fixtures

Full pre-assembly with complete supporting accessories including bolts, O-rings, and air vent valves
Semicircular groove fixture design enables simple specimen installation with zero liquid leakage
Effortless operating procedures for enhanced user experience
