Hydrostatic Pressure Testing Machine Designed to Meet Requirements of Plastic Pipe Producers and Control Institutions

Large Image : Hydrostatic Pressure Testing Machine Designed to Meet Requirements of Plastic Pipe Producers and Control Institutions

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 work days
Payment Terms:	T/T,L/C,Western Union,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Designed To Meet Requirements Of Plastic Pipe Producers And Control Institutions	Place Of Origin:	Beijing, China
Model:	XGY-10C	Max. Pressure:	10 MPA, 100BAR
Pressure Resolution:	0.001MPA, 0.01BAR	Test Stations:	3, 4, 5, 6, 10, 15, 20, 25, 30, Can Customized
Temp. Range:	10-95 ℃	Constant Pressure Accuracy:	-1%~+2%
Material Of Water Tank:	304# Stainless Steel	End Caps:	Φ10~1800mm
Power:	AC380V ±10% ,50/60Hz	Standards:	ISO 1167
Highlight:	Hydrostatic Pressure Testing Machine for plastic pipes , Hydrostatic Pressure Testing Machine with warranty , Hydrostatic Pressure Testing Machine for control institutions

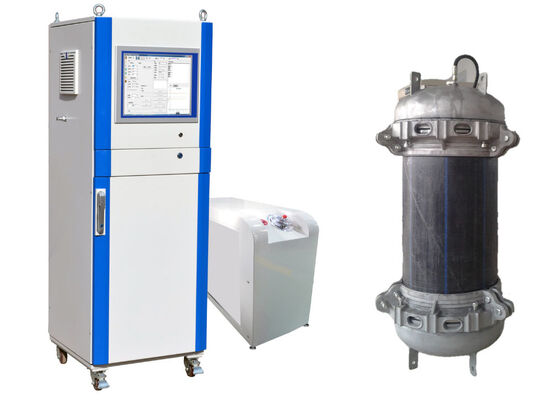

Hydrostatic Pressure Testing Machine for Plastic Pipe Quality Control

This hydrostatic pressure testing machine is engineered to meet the rigorous requirements of plastic pipe manufacturers, research institutions, and quality control authorities. It provides comprehensive testing capabilities for evaluating the internal pressure resistance of plastic pipes, fittings, and valves under controlled temperature conditions.

Equipment Overview

This specialized test apparatus assesses the internal pressure resistance performance of plastic pipes, pipe fittings, and valves. Test specimens can be subjected to identical or differentiated pressure loads while maintained in constant-temperature water bath conditions during inspection procedures.

The system serves as essential inspection hardware for pipe manufacturers, scientific research institutions, and quality supervision authorities to verify and quantify the mechanical performance characteristics of test samples.

Key System Features

Main Frame: Integrates precision pressure micro-control modules, automatic pressure filling, and electric pressure relief components. Features microcomputer MCU control technology with high-resolution 16-bit ADC chips for real-time data interaction and adaptive pressure control.
Pressure Station: Provides stable pressure supply exceeding test requirements for all specimens. Equipped with American-made plunger pumps offering large flow capacity, low noise operation, high pressure resistance, and maintenance-free performance.

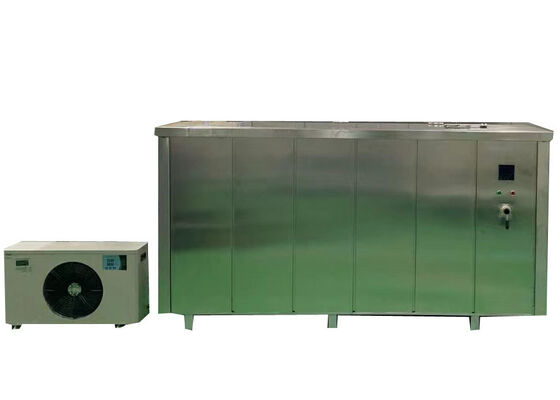

Water Tank: Dedicated constant-temperature water tank designed to perfectly match the hydrostatic pressure testing machine, providing optimal test conditions and supporting diverse auxiliary applications.
Temperature Control System: Delivers precise, independent temperature regulation with digital display. Maintains standard liquid levels while ensuring long-term stability and accuracy of internal water temperature.
PC Control Unit: Utilizes industrial MODBUS communication protocol for reliable data transmission and excellent compatibility with universal intelligent testing instruments.

Compliance Standards

This testing equipment complies with domestic and international authoritative standards including GB/T6111-2003, GB/T18252-2000, GB/T15560, ISO 1167, ASTM D1598-2004, and ASTM D1599.

Technical Specifications

Pipe Diameter Range	Φ10~Φ1800mm
Working Positions	1~50 positions (customizable)
Operation Mode	Operation panel/PC control
Pressure Range	0.2~10MPa (customizable)
Pressure Resolution	0.001MPa, 0.01Bar
Pressure Control Accuracy	-1%~+2%
Measuring Range	5%~100% F.S.
Timing Range	1s~9999H 99M 99S
Timing Accuracy	±0.1%
Display Resolution	1s
Minimum Time Setting Unit	min
Temperature Control System	15~95℃ with refrigerating system
Temperature Control Accuracy	±0.5℃
Water Tank Material	304# stainless steel
End Caps Material	304# stainless steel or carbon steel
Power Supply - Pressure Control Meter	AC220V, 50Hz
Power Supply - Pressure Workstation & Tank	3-phase, AC380V, 50Hz
