XGY-10C Hydrostatic Pressure Testing Machine
Advanced hydrostatic pressure testing solutions featuring digital interface and automated test procedures for comprehensive pipeline testing applications.
Product Overview
The XGY-10C Hydrostatic Pressure Testing Machine features a high-definition LCD screen for real-time visual monitoring of pressure data throughout testing procedures. It delivers stable detection results with pressure precision ranging from -1% to +2%, ensuring high precision, excellent repeatability, and dependable validity for all test outcomes.
This testing apparatus supports pressure inspection for pipes and test specimens equipped with end caps within a diameter range of Φ8mm to 1800mm. Its extensive adaptable size coverage satisfies diverse testing requirements for various tubular product specifications. Built with robust industrial structural design, the equipment offers outstanding durability and long service life, providing a cost-effective and reliable testing solution for enterprises and laboratories requiring regular hydrostatic pressure testing operations.
Key Features
Product Name: Hydrostatic Pressure Testing Machine
Certifications: CE, ISO
Test Mode: Automatic
Diameter Range: Φ8-1800mm
Testing Range: 0-100Bar, 0-10MPA
Control Mode: Micro-control, industrial PC control
Industry Compliance
This testing instrument complies with authoritative industry standards including ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, and ASTMF1335 specifications to ensure standardized and credible test procedures and data outputs.
Technical Specifications
| Model |
XGY-10C |
| Diameter Range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable) |
| Control Mode |
Micro-control, industrial PC control |
| Display Mode |
Industrial PC LCD color display |
| Storage Mode |
PC storage |
| Print Mode |
Color printer output |
| Test Pressure Range |
0.1-10MPa |
| Control Accuracy |
±1% |
| Display Resolution |
0.001MPa |
| Working Range |
5%~100%FS |
| Indication Error |
±1% |
| Timer Range |
0~10000h |
| Timer Accuracy |
±0.1% |
| Timer Resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.2KW |
| End Caps Models |
from Φ16 to 1600mm |
| Water Tank Size |
According to pipe size |
| Temperature Range |
15-95℃ |
| Dimensions (three stations) |
710*620*1710(mm) or customized |
Applications & Support
Engineered for high-pressure resistance performance verification, this hydrostatic pressure testing machine assesses the structural strength of pipes, valves, hoses, and other pressure-bearing components in high-pressure working scenarios.
Our professional technical service team provides comprehensive after-sales support throughout the equipment's service life, including on-site installation and commissioning, operational fault diagnosis, routine maintenance, component overhaul, and professional operational training for on-site staff.
Frequently Asked Questions
Which brand supplies the Plastic Pipe Hydrostatic Pressure Testing Machine?
The Hydrostatic Pressure Testing Machine adopts the TH brand and is produced in Beijing, China.
What testing objectives can be fulfilled by this machine?
This hydrostatic testing machine examines the hydrostatic resistance and burst strength performance of plastic pipes.
What kinds of test specimens are compatible?
The machine supports testing on plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X and other pipe varieties.
What level of precision does the machine achieve?
The measurement precision reaches 0.1% full scale.
What ceiling pressure value can the machine reach?
The maximum test pressure supported is 10 MPa, equivalent to 100 bar (1450 psi).

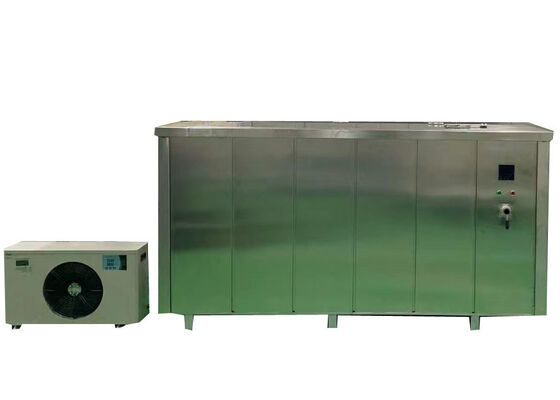

Product Images
