Hydrostatic Pressure Testing Machine Featuring Automated Pressure Regulation and Safety Features for Testing Operations

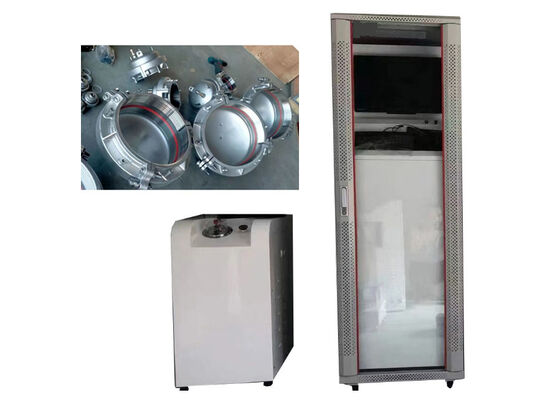

Large Image : Hydrostatic Pressure Testing Machine Featuring Automated Pressure Regulation and Safety Features for Testing Operations

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-20C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Featuring Automated Pressure Regulation And Safety Features For Testing Operations	Testing Range:	0-200 Bar
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
Display:	LCD	Test Curve:	Pressure-time And Pressure-temperature
Safety Protection:	Over Pressure/Over Temperature	Test Mode:	Automatic
Test Medium:	Water	Customized Support:	OEM
Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine with automated regulation , Hydrostatic Pressure Testing Machine with safety features , Hydrostatic Pressure Testing Machine for testing operations

Hydrostatic Pressure Testing Machine

Automated pressure regulation and safety features for comprehensive testing operations

Product Overview

The Plastic Pipe Hydrostatic Pressure Testing Machine, commonly known as hydrostatic testing machine, is designed to measure the failure time of plastic pipes under sustained internal pressure and evaluate their short-term hydrostatic pressure resistance capability.

Key Features

Product Name: Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine
Test Medium: Water
Testing Range: 0-200 bar
Available Pressure Units: MPa / BAR / PSI
Display Module: LCD
Recordable Test Curves: Pressure-Time Curve and Pressure-Temperature Curve
Control Mode: Computer-controlled
Applicable Pipe Sizes: DN8 to DN2000 mm
Maximum Test Pressure: 20 MPa

Compliance Standards

The equipment fully complies with industry specifications including ISO 1167, ASTM D1598, ISO9080, CJ/T108, ASTM F1335 and other applicable standard protocols for pipe pressure testing.

Technical Specifications

Model	XGY-20C
Diameter range	8-2000mm
Stations	5, 10, 15, 20, 50, etc (customizable)
Control mode	Micro-control, industrial PC control
Display mode	Industrial PC LCD color display
Storage mode	PC storage
Print mode	Color printer output
Test pressure range	20 MPa
Control accuracy	±1%
Display resolution	0.01MPa
Working range	5%~100%FS
Indication error	±1%
Timer range	0~9999h59m59s
Timer accuracy	±0.1%
Timer resolution	1s
Power	380V 50Hz three-phase four-wire 1.2KW
Dimensions (three stations)	730×620×1720(mm) or customized

Support and Services

We deliver comprehensive technical assistance tailored to Hydrostatic Pressure Testing Machines. Our seasoned technical team offers professional services including:

Equipment installation and commissioning
Fault troubleshooting and technical consultation
Overhaul and routine maintenance services
Supply of spare components and consumable accessories
Software iteration and upgrade services

We persistently pursue high-quality customer service and stand ready to address all your technical inquiries.

Frequently Asked Questions

What brand manufactures the Plastic Pipe Hydrostatic Pressure Testing Machine?

The Hydrostatic Pressure Testing Machine carries the TH brand and is fabricated in Beijing, China.

What detection functions does the Plastic Pipe Hydrostatic Pressure Testing Machine fulfill?

This Hydrostatic testing machine is adopted to assess the hydrostatic resistance and burst strength of plastic pipes.

What specimens are eligible for testing on the Hydrostatic Pressure Testing Machine?

The Hydrostatic Pressure Testing Machine accommodates plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X and other similar pipe grades.

What measurement precision can the Hydrostatic Pressure Testing Machine achieve?

The Hydrostatic Pressure Testing Machine achieves measurement precision of 0.1% full scale.

What is the upper limit of test pressure supported by the Hydrostatic Pressure Testing Machine?

The Hydrostatic Pressure Testing Machine supports test pressure reaching 10 MPa, equal to 100 bar (1450 psi).
