Hydrostatic Pressure Testing Machine
Engineered for continuous operation in demanding industrial environments, this hydrostatic pressure testing machine delivers superior performance and precision for evaluating material strength and durability under pressure.
Product Overview
This hydrostatic pressure testing machine is engineered for comprehensive assessment of diverse materials, structural components, and finished assemblies. With a testing scope of 0-100bar and peak pressure capacity of 10MPa, it features LCD/LED visual display with multi-unit switching among Bar, psi, and MPa. Using water as the standard test medium, the equipment records real-time Pressure-time and Pressure-temperature test curves within a controllable temperature range of 15℃ to 95℃. All operations comply with ISO 1167, ASTM D1598, ASTM D1599, and other industrial standards.
Key Features
- Product Name: Hydrostatic Pressure Testing Machine
- Pressure-time and Pressure-temperature curves for comprehensive data recording
- Dual test modes: manual and automatic testing procedures
- Built-in data storage function for effective preservation of test records
- Dual control mode configurations: PLC and PC for flexible operation
- Standard power supply: AC220V/50Hz for stable industrial power adaptation
- Compliance with ISO 1167, ASTM D1598 and ASTM D1599 international standards
- Applicable for test specimens with caliber range from DN20 to DN1800mm
- Professional computer intelligent control system for intelligent testing operation
- Automatic power-off protection and shutdown function after test completion
Applications
Engineered with high measurement stability and precision, this hydrostatic pressure testing machine is dedicated to pressure performance detection for PVC, PE, PPR, HDPE, and various other pipeline materials. With a test precision range of -1% to +2%, it serves as a premium testing solution for manufacturing enterprises and engineering institutions.
Technical Specifications
| Safety Protection |
Over Pressure/Over Temperature |
| Test Mode |
Manual/Automatic |
| Power Supply |
AC380V/220V/50Hz |
| Test Type |
Constant Pressure And Bursting |
| Test Temperature Range |
15~95℃ |
| Display |
LCD |
| Testing Range |
0-100bar |
| Data Output |
USB/RS232/RS485/Ethernet |
| Test Curve |
Pressure-time And Pressure-temperature |
| Max. Pressure |
10MPA |
| Test Temperature |
15℃-95℃ |
Support and Services
We provide comprehensive aftermarket technical support and customized service solutions to ensure stable long-term equipment operation. Our services include professional on-site installation, system commissioning, remote technical assistance, systematic operational and maintenance training, and a complete spare parts supply system. Our experienced technical team offers targeted consultation and professional operational guidance.
Frequently Asked Questions
Which brand manufactures the Hydrostatic Pressure Testing Machine?
The Hydrostatic Pressure Testing Machine is branded TH, and it is produced in Beijing, China.
What function does the Hydrostatic Pressure Testing Machine serve?
The Hydrostatic Pressure Testing Machine is applied to examine the hydrostatic strength of pressure vessels and other pressure-bearing components.
What key assemblies constitute the Hydrostatic Pressure Testing Machine?
Core assemblies consist of a pressure chamber, pressure generation unit, pressure measuring instrument, safety valve and control panel.
What varieties of pressure pipes are compatible with the Hydrostatic Pressure Testing Machine?
The machine supports testing on various plastic pressure pipes, including PPR, PE, PVC and similar pipe products.
How is the testing procedure carried out on the Hydrostatic Pressure Testing Machine?
The testing workflow starts by filling the pressure vessel with liquid medium, followed by pressurizing the vessel, and recording pressure data via the pressure measuring instrument.

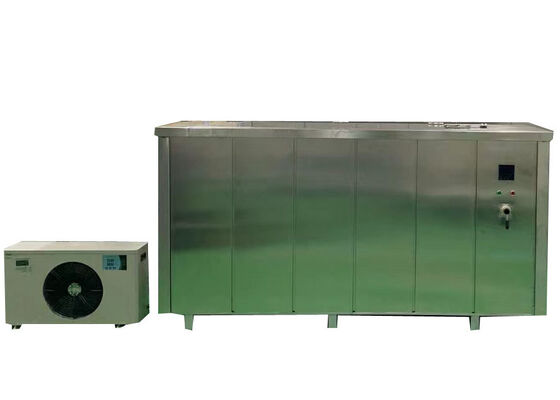

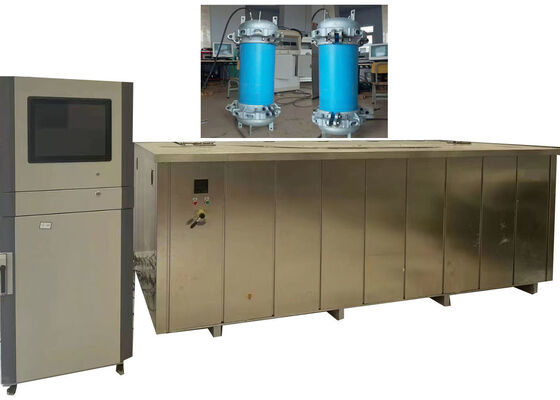

Product Images
