HDT VICAT Tester Providing Accurate Vicat Softening Point Testing with PLC Controller and Computer Interface for Control Processes

HDT VICAT Tester Providing Accurate Vicat Softening Point Testing with PLC Controller and Computer Interface for Control Processes
HDT VICAT Tester Providing Accurate Vicat Softening Point Testing with PLC Controller and Computer Interface for Control Processes

Large Image :  HDT VICAT Tester Providing Accurate Vicat Softening Point Testing with PLC Controller and Computer Interface for Control Processes

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: TH
Certification: ISO9001, CE
Model Number: XRW-300F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T,L/C,D/A,D/P
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Product Name: HDT VICAT Tester Providing Accurate Vicat Softening Point Testing With PLC Controller And Computer Interface For Control Processes Controll: By Computer
Test Station Moving Method: Automatic Mainframe Type: Floor Type
Vicat Load: 10N ± 0.2 N , 50N ± 1N Max. Deformation Deviation: 0.001mm
Deformation Measuring Rage: 0 ~ 2.5mm Sample Frame Number: 3-6 Stations Can Be Selected
Highlight:

HDT VICAT Tester with PLC controller

,

Vicat softening point testing equipment

,

HDT VICAT Tester computer interface

HDT VICAT Tester with PLC Controller and Computer Interface
The HDT VICAT Tester provides accurate Vicat softening point testing with PLC programmable controller and computer interface for precise control processes. This advanced testing equipment features straightforward operation, user-friendly handling, steady performance, and outstanding measuring precision.
Product Overview
The ASTM D648 Thermal Deformation Vicat Softening Point Tester, also known as vicat test apparatus or HDT tester, utilizes PLC programmable controller for temperature regulation and supports operation and data visualization via computer terminal. The system enables real-time monitoring of test temperature and specimen deformation throughout the testing cycle, automatically halting heating upon test completion with direct printing of test reports and corresponding curves.
Key Features
  • PLC programmable controller for precise temperature regulation
  • Computer interface for operation and data visualization
  • Real-time monitoring of test temperature and specimen deformation
  • Automatic heating shutdown upon test completion
  • Direct printing of test reports and curves
  • Six-station simultaneous testing capability
  • High precision digital display dial gauge
Technical Specifications
Model XRW-300E
Testing Stations 6 stations (simultaneous testing)
Cooling System Air above 150°C, water or natural cooling below 150°C
Deformation Measurement High precision digital display dial gauge
Heating Rate 50°C/h, 120°C/h
Max Temperature Deviation ±0.5°C
Deformation Deviation 0.01mm
Vicat Load 10N ± 0.2N, 50N ± 1N
Fiber Stress 0.455 MPa and 1.82 MPa
Temperature Control Range Room temperature ~ 300°C
Deformation Measuring Range 0 ~ 10mm
Sample Frame Number 3
Test Span 60~120mm
Heating Power 6KW
Power Supply 220V 50Hz
Display Color touch screen
Compliance Standards
This testing device fully complies with international and domestic standards including GB/T 1633, GB/T 1634, GB/T 8802, ISO75-2013, ASTM D 648, ASTM D 1525, and ISO 2507 specifications for plastic thermal performance testing.
Applications
Used to measure heat deformation and Vicat softening temperature of thermoplastic materials, plastic, and rubber in manufacturing, scientific research, and educational institutions.
Standard Configuration
  • Main frame: 1 set
  • Electric cabinet: 1 set
  • Specimen holder: 3 sets
  • Vicat indenter: 3 sets
  • Heat deflection indenter: 3 sets
  • Displacement sensor: 3 sets
  • Power line: 2 sets
  • Connecting line: 2 sets
  • Operation manual: 1 set
  • Certificate: 1 set
  • Packing list: 1 set
Product Images

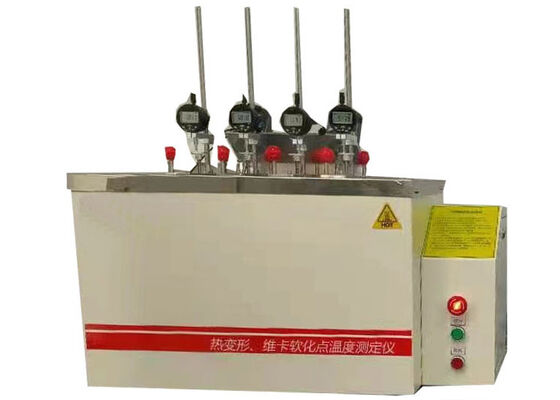

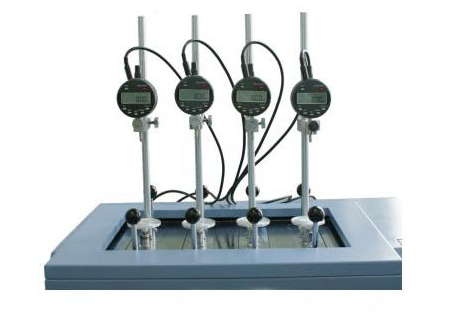

HDT VICAT Tester front view showing control panel and testing stations Close-up view of HDT VICAT Tester testing mechanism and specimen holders Side view of HDT VICAT Tester showing complete unit structure HDT VICAT Tester operational display and control interface
