Hydrostatic Pressure Testing Machine Providing Long Term Pressure Test and Automatic Stop with Test Report Printing for Plastic Pipes

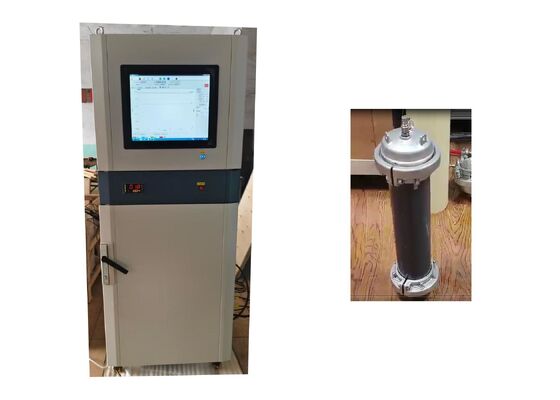

Large Image : Hydrostatic Pressure Testing Machine Providing Long Term Pressure Test and Automatic Stop with Test Report Printing for Plastic Pipes

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Providing Long Term Pressure Test And Automatic Stop With Test Report Printing For Plastic Pipes	Model:	XGY-10C
Max. Pressure:	10MPA, 100BAR, 16MPA, 160BAR, 20MPA, 200BAR	Pressure Resolution:	0.01MPA, 0.1BAR
Test Stations:	3, 5, 10, 15, 20, 25, 30, 50 Can Customized	Temp. Range:	15-95 ℃
Constant Pressure Accuracy:	-1%~+2%	Material Of Water Tank:	304# Stainless Steel
Material Of End Caps:	304# Stainless Steel Or Carbon Steel	Power:	AC380V ±10% ,50/60Hz
Standards:	ISO 1167, ASTM D1598/1599
Highlight:	Hydrostatic pressure testing machine for plastic pipes , Automatic stop hydrostatic pressure tester , Pressure test machine with report printing

Hydrostatic Pressure Testing Machine

Professional equipment for long-term pressure testing and automatic stop with test report printing for plastic pipes and fittings.

This advanced testing equipment performs long-term internal pressure endurance testing on plastic pipes and fittings within preset pressure thresholds. Features intelligent automatic shutdown upon specimen rupture or test completion, with real-time pressure curve recording and comprehensive test report output.

Control System Features

Industrial chip architecture for direct drive and control
Multi-channel collaborative operation with precision pressure control
Independent control per testing station to eliminate signal interference
Configurable stations: 3, 6, 15, 20 stations (expandable to 60+ stations)
Supports both hydrostatic pressure test and burst test modes
Maximum pressure specifications: 10 MPa, 16 MPa, 20 MPa
Pipe diameter range: Φ16 mm to 2000 mm (custom sizes available)
Independent microcontroller per station with offline operation capability
Power failure protection with data archiving and report printing
Multi-language interface supporting global client requirements

Technical Specifications

Model	XGY-10C
Maximum Pressure	10 MPa
Test Stations	3, 5, 10, 15, 20, 25, 30, 50 (customizable)
Control Mode	Computer Control
Timing Range	0~9999 hours 59 minutes
Timing Accuracy	±0.1%
Time Resolution	1 second
Pressure Control Range	0.2~10 MPa
Pressure Control Accuracy	-1%~ +2%
Constant Voltage Control Precision	Within ±1%
Pressure Display Resolution	0.001 MPa, 0.01 bar or 1 PSI

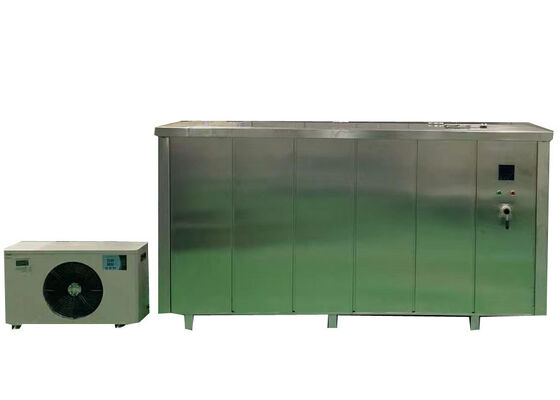

Temperature Control Range	15-95℃ (with refrigeration system)
Temperature Control Accuracy	±0.5℃
