Hydrostatic Pressure Testing Machine Featuring Safe and High Precision Airless Pressure System for Plastic Pipe Testing

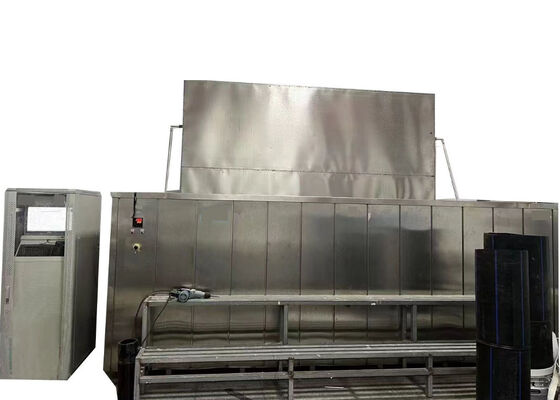

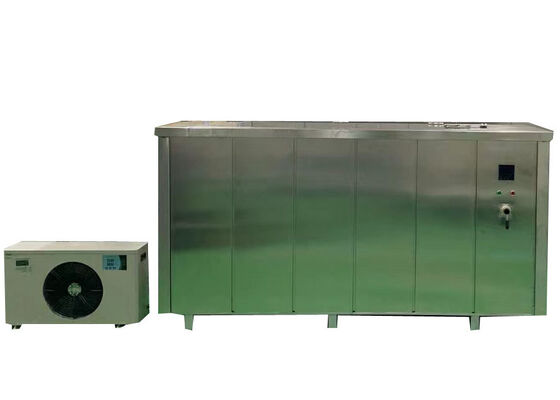

Large Image : Hydrostatic Pressure Testing Machine Featuring Safe and High Precision Airless Pressure System for Plastic Pipe Testing

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Featuring Safe And High Precision Airless Pressure System For Plastic Pipe Testing	Place Of Origin:	Beijing, China
Model:	XGY-10C	Max. Pressure:	10MPA, 100BAR, 16MPA, 160BAR
Pressure Resolution:	0.01MPA, 0.1BAR	Test Stations:	5, 10, 15, 20, 25, 30, 50 Can Customized
Temp. Range:	15-95 ℃	Constant Pressure Accuracy:	-1%~+2%
Material Of Water Tank:	304# Stainless Steel	Material Of End Caps:	304# Stainless Steel Or Carbon Steel
Power:	AC380V ±10% ,50/60Hz	Standards:	ISO 1167, ASTM D1598/1599
Highlight:	Hydrostatic Pressure Testing Machine for plastic pipes , High precision airless pressure system , Safe hydrostatic pressure testing machine

Hydrostatic Pressure Testing Machine

Computer-controlled hydrostatic testing equipment featuring safe and high precision airless pressure systems for plastic pipe testing applications.

Product Overview

This advanced hydrostatic testing equipment adopts state-of-the-art non-air pressure systems, delivering reliable operation and high-precision pressure regulation. It is suitable for conducting long-term hydrostatic tests and instantaneous burst tests on fluid conveyance plastic pipes and composite pipes manufactured from PVC, PE, PP-R, ABS and other materials with various nominal diameters.

System Features

Direct control via industrial tablet solution
Integration with precision pressure control modules for multi-channel combined systems
Independent control architecture for each testing station without mutual interference
Multiple configurations available: 3, 6, 15, and 20 stations (expandable to 60+ stations)
Supports both hydrostatic test and burst test modes
Maximum pressure specifications: 10 MPa, 16 MPa, 20 MPa and other grades
Applicable pipe diameter range: Φ16 mm to 2000 mm (custom specifications available)
Dedicated microcontroller for each station with independent parameter configuration
Real-time display of pressure value, elapsed time and operational status
Automatic data saving and audible-visual alarm system
Power failure protection and automatic test report storage & printing
Multi-language software interfaces for global client support

Compliance Standards

This testing equipment fully complies with authoritative domestic and international standards including GB/T 6111-2003, GB/T 15560-95, GB/T 18997.1-2003, GB/T 18997.2-2003, ISO 1167-2006, ASTM D1598-2004 and ASTM D1599.

Technical Parameters - Model XGY-10C

Parameter	Specification
Maximum Pressure	10 MPa
Test Stations	6 stations
Control Mode	Computer control
Data Preservation	Power-off data protection with boot restoration
Timing Range	0~9999 h 59 min
Timing Accuracy	±0.1%
Time Resolution	1s
Minimum Set Unit	min
Pressure Control Range	0.2~10 MPa
Pressure Control Accuracy	-1%~ +2%
Constant Voltage Control Precision	Within ±1%
Pressure Display Resolution	0.001 MPa, 0.01 bar or 1 PSI
Measuring Range	4%~100% FS
Allowable Error Limit	Within 1%
Temperature Control Range	15-95℃ (with refrigeration system)
Temperature Control Accuracy	±0.5℃
