Hydrostatic Pressure Testing Machine Compliant with GB T6111 ISO 1167 ASTM D1598 and ASTM D1599 Standards for Pipe Testing

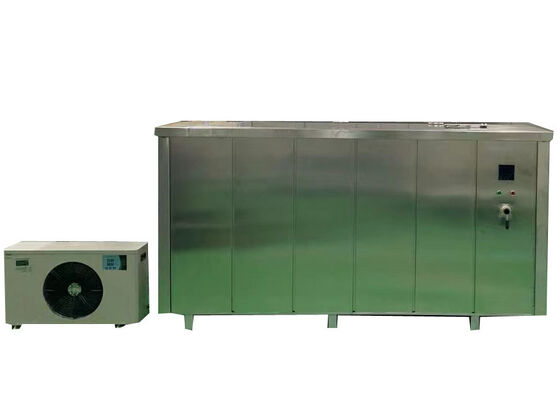

Large Image : Hydrostatic Pressure Testing Machine Compliant with GB T6111 ISO 1167 ASTM D1598 and ASTM D1599 Standards for Pipe Testing

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Compliant With GB T6111 ISO 1167 ASTM D1598 And ASTM D1599 Standards For Pipe Testing	Place Of Origin:	Beijing, China
Model:	XGY-10C	Max. Pressure:	10MPA, 100BAR, 16MPA, 160BAR, 20MPA, 200BAR
Pressure Resolution:	0.01MPA, 0.1BAR	Test Stations:	3, 5, 10, 15, 20, 25, 30, 50 Can Customized
Temp. Range:	15-95 ℃	Constant Pressure Accuracy:	-1%~+2%
Material Of Water Tank:	304# Stainless Steel	Material Of End Caps:	304# Stainless Steel Or Carbon Steel
Power:	AC380V ±10% ,50/60Hz	Standards:	ISO 1167, ASTM D1598/1599
Highlight:	Hydrostatic Pressure Testing Machine for pipe testing , Hydrostatic Pressure Testing Machine compliant with GB T6111 , Hydrostatic Pressure Testing Machine ISO 1167 compliant

Hydrostatic Pressure Testing Machine

Compliant with GB T6111, ISO 1167, ASTM D1598 and ASTM D1599 Standards for Pipe Testing

Product Overview

Designed to meet the specification criteria of GB/T6111, ISO 1167-1, GB/T15560, ASTM D1598 and ASTM D1599, this hydrostatic testing equipment is applicable to hydrostatic pressure inspection and burst resistance testing of diverse fluid-conveying plastic pipes. Featuring streamlined mechanical layout, superior testing accuracy, steady operational performance and user-friendly operation, this instrument serves as indispensable inspection equipment for pipe manufacturing enterprises, professional research institutions and industrial quality supervision departments.

System Features

Adopts industrial chip control technology for direct and immediate equipment regulation
Supports multi-channel system integration with precision pressure control for combined testing operations
All testing channels feature independent control logic with zero cross-interference between stations
Flexible station configurations including 3, 6, 15, and 20 stations, expandable to 60+ stations
Supports hydrostatic test and blasting test modes
Standard maximum pressure grades: 10MPa, 16MPa, 20MPa with custom specifications available
Adaptable pipe diameter range: Φ16mm to 2000mm with custom dimensional solutions
Independent microcomputer for each test station with individual parameter setting capability
Real-time display of pressure values, test duration, and eight operational status indicators
Automatic data recording and storage with integrated sound-light alarm system
Power safeguard mechanism with test report saving and printing functions
Intelligent timing system that avoids ineffective timing during non-working periods
Built-in power-off protection ensures test completion during sudden power failures
Optimized structural design with stable performance and clear visual data display
Multi-language software interfaces for global customer compatibility

Compliance Standards

This testing apparatus complies with international industry benchmark standards including ISO1167, ISO9080, EN921, ASTM D1598, ASTM D1599 and ISO13479, ensuring standardized and authoritative test results.

Technical Parameters

Parameter	Specification
Model	XGY-10C
Max. Pressure	10MPa
Test Stations	3, 5, 10, 15, 20, 25, 30, 50 (customizable)
Control Mode	Computer Control
Data Preservation	Each station has power-off data protection function
Timing Range	0~9999 h 59 min
Timing Accuracy	±0.1%
Time Resolution	1s
Minimum Set Unit	min
Pressure Control Range	0.2~10MPa
Pressure Indicator Units	MPa, bar or PSI
Pressure Control Accuracy	-1%~ +2%
Constant Voltage Control Precision	Within ±1%
Pressure Display Resolution	0.001MPa, 0.01bar or 1PSI
Measuring Range	4%~100%FS
Allowable Error Limit	Within 1%
Temperature Control Range	15-95℃ (with refrigeration system)
Temperature Control Accuracy	±0.5℃
