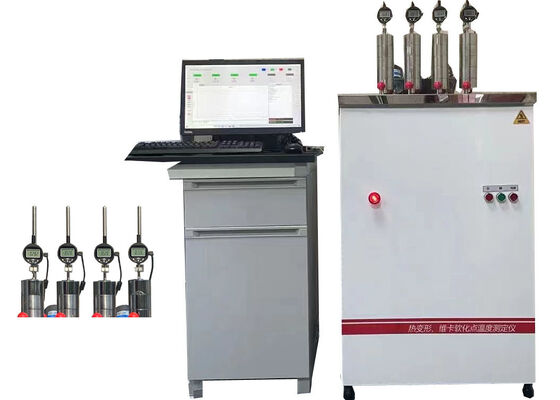

HDT VICAT Tester Heat Deflection Temperature and Vicat Softening Point Testing Equipment for Control of Plastic Materials

Large Image : HDT VICAT Tester Heat Deflection Temperature and Vicat Softening Point Testing Equipment for Control of Plastic Materials

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XRW-300F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Product Name:	HDT VICAT Tester Heat Deflection Temperature And Vicat Softening Point Testing Equipment For Control Of Plastic Materials	Controll:	By Computer
Test Station Moving Method:	Automatic	Mainframe Type:	Floor Type
Vicat Load:	10N ± 0.2 N , 50N ± 1N	Max. Deformation Deviation:	0.001mm
Deformation Measuring Rage:	0 ~ 2.5mm	Sample Frame Number:	3-6 Stations Can Be Selected
Highlight:	HDT VICAT Tester for plastic materials , Heat Deflection Temperature testing equipment , Vicat Softening Point Tester

HDT VICAT Tester: Heat Deflection Temperature and Vicat Softening Point Testing Equipment

Engineered for thermoplastic material assessment, the Heat Deflection Temperature Tester / Vicat Softening Point apparatus determines heat deflection temperature and Vicat softening point values of plastic samples. Specimens undergo constant applied loading while submerged in a heating medium bath, with temperature rising according to standardized heating rates. The resulting thermal resistance metrics serve as fundamental performance indicators for material profiling, quality control workflows, and compliance verification.

Key Features

Integrated test-stand lifting mechanism for enhanced operational efficiency
Complies with international standards including ISO 75, ISO 306, GB/T1633, and GB/T1634
Computer-controlled operation for reliable performance and superior automation
User-friendly handling with advanced testing capabilities
State-of-the-art solution for characterizing thermal deflection and Vicat softening temperature

Technical Specifications

Model	XRW-300F
Testing Stations	6 stations (simultaneous testing of 6 samples)
Cooling System	Air above 150°C, water or natural cooling below 150°C
Deformation Measurement	High precision digital display dial gauge
Heating Rate	50°C/h, 120°C/h
Max Temperature Deviation	±0.5°C
Deformation Deviation	0.01mm
Vicat Load	10N ± 0.2N, 50N ± 1N
Fiber Stress	0.455 MPa and 1.82 MPa
Temperature Control Range	Room temperature ~ 300°C
Deformation Measuring Range	0 ~ 10mm
Sample Frame Number	3
Test Span	60~120mm
Heating Power	6KW
Power Supply	220V 50Hz
Display	Color touch screen
Type and Control	Desk type using PLC control system

Compliance Standards

This testing instrument satisfies technical specifications in ISO 2507, ISO 75, ISO 306, ASTM D 1525, and ASTM D 648, supporting standardized thermal-performance evaluation for thermoplastic samples.

Applications

Used to measure heat deformation and Vicat softening temperature of thermoplastic materials in manufacturing, scientific research, and educational institutions.

Standard Configuration

Main frame: 1 set
Electric cabinet: 1 set
Specimen holder: 3 sets
Vicat indenter: 3 sets
Heat deflection indenter: 3 sets
Displacement sensor: 3 sets
Power line: 2 sets
Connecting line: 2 sets
Operation manual: 1 set
Certificate: 1 set
Packing list: 1 set

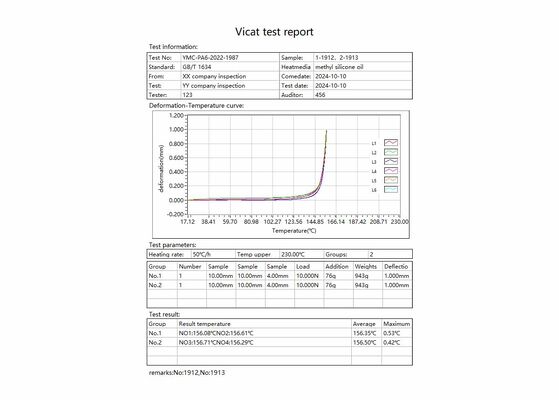

Product Images

Tag:

HDT Vicat Testing Machine,

VICAT Softening Point Tester,

Heat Deflection Temperature Tester
