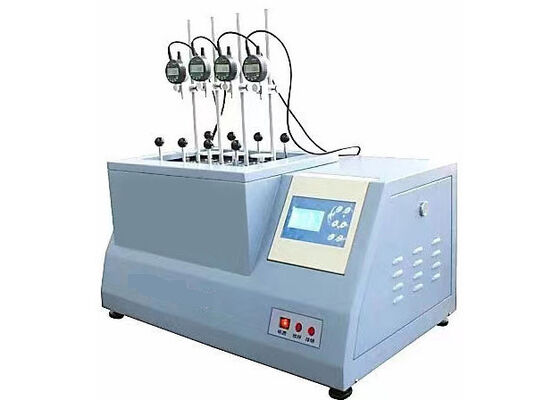

Plastic HDT VICAT Tester with Computer Control
Professional testing equipment for measuring heat deformation and Vicat softening temperature in plastic products, featuring advanced computer control technology.
Product Overview
- Computer-controlled HDT & VST testing apparatus for evaluating heat-distortion temperature and Vicat softening temperature across diverse thermoplastic specimens including plastics and rubbers
- Extensively deployed within plastic-product manufacturing, raw-material inspection, scientific research, and educational laboratories
- Spacious mechanical layout with refined exterior design delivering consistent operational performance
- Built-in modules for oil-fume elimination, odor abatement, and circulating cooling
- Sophisticated MCU (Multi-point Micro Control Unit) control architecture for autonomous temperature and deformation acquisition & regulation
- Automatic test outcome computation with storage for up to ten groups of test datasets
- Multilingual color touch-screen panels with Chinese-English switching capability
- PC linkage and printer interfacing for computer-based remote control

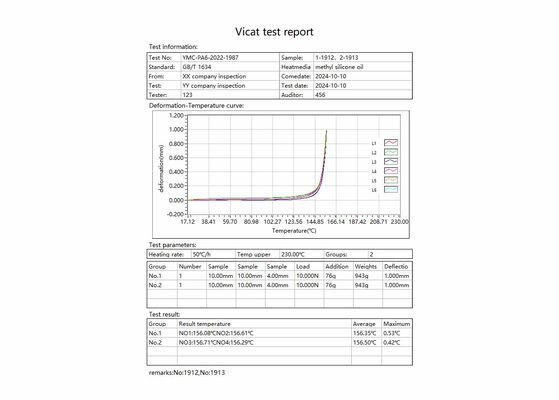

- Windows-compatible software with English interface featuring automatic measurement execution, real-time curve plotting, data archiving, and printable report generation
Compliance Standards
This testing device complies with authoritative international and domestic standard specifications including ISO75 (E), ISO306 (E), GB/T8802, GB/T1633 and GB/T1634, covering mainstream industry test criteria for thermal performance detection of polymer materials.
Technical Parameters
| Parameter |
Specification |
| Temperature control range |
Room temperature ~ 300℃ |
| Heating rate |
(12±10)℃/min, (5±0.55)℃/min |
| Maximum temperature error |
±0.5℃ |
| Deformation measurement range |
0～3mm |
| Maximum deformation measurement error |
±0.005mm |
| Accuracy of deformation measurement |
±0.01mm |
| Sample holder (test stations) |
4 |
| Span of sample supports |
64mm, 100mm |
| Load bar and press (needle) weight |
71g |
| Supply voltage |
220V, 16A, 50Hz |
| Heating power |
3kW |
Important Note
Customers are responsible for supplying the heating medium on-site. Methyl silicone oil with a flash point above 300℃ is adopted as the heating medium, and model 201-100 is the recommended grade. Each standard barrel weighs 20 kg, whilst the actual filling consumption for equipment operation is approximately 15 kg.
Technical Support & Service Solutions
We deliver comprehensive technical support and customized service packages for the HDT VICAT Testing Machine, aiming to sustain stable operational status and maximize the equipment's effective working cycle.
On-site Installation & Commissioning
Professional technical engineers complete full on-site installation and systematic commissioning, providing standardized operational training for on-site staff to ensure proficient equipment operation.
Preventive Maintenance Service
Regular scheduled preventive maintenance programs effectively maintain consistent, optimal operating performance and avoid potential equipment failures.
Fault Diagnosis & Technical Support
One-on-one troubleshooting technical support assists users in quickly locating equipment abnormalities and eliminating operational faults.
Frequently Asked Questions
What is the HDT VICAT Testing Machine?
The HDT VICAT Testing Machine (Model XRW-300) is professionally developed and produced by TH based in Beijing, China. It is specially engineered to test and measure the Vicat softening temperature of thermosetting plastic materials.
What core strengths does the HDT VICAT Testing Machine possess?
The HDT VICAT Testing Machine delivers precise and reliable test results with simplified operational procedures. Equipped with a straightforward interactive interface, it greatly lowers operating difficulty and features low maintenance requirements for long-term stable operation.
What key technical parameters apply to the HDT VICAT Testing Machine?
Adopting microcomputer intelligent control technology, the HDT VICAT Testing Machine achieves a temperature control accuracy of ±0.5°C. Its temperature testing scope covers ambient temperature up to 300°C, with two optional standard heating rates of 50°C/h and 120°C/h.
What testable material categories are compatible with the HDT VICAT Testing Machine?
The HDT VICAT Testing Machine is applicable for performance testing of various thermosetting plastics, including polyester resin, epoxy resin, unsaturated polyester, phenolic plastic and polyurethane materials.
What warranty coverage is offered for the HDT VICAT Testing Machine?
TH offers a 12-month official warranty service for the HDT VICAT Testing Machine to guarantee reliable after-sales protection.
