Differential Scanning Calorimeter Designed for Polymer Thermal Testing with Touch Screen and Automated Software Features

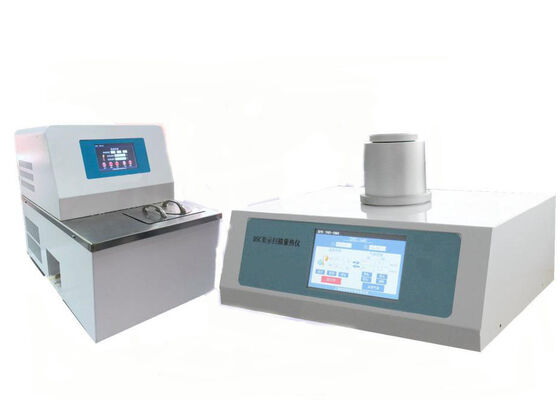

Large Image : Differential Scanning Calorimeter Designed for Polymer Thermal Testing with Touch Screen and Automated Software Features

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	DSC-ZS5

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Differential Scanning Calorimeter Designed For Polymer Thermal Testing With Touch Screen And Automated Software Features	Temperature Resolution:	0.01 ℃
Heating Rate:	0.1～40℃/min	Cooling Rate:	0.1～20℃/min
DSC Range:	0 ~ + 500 Mw	DSC Resolution:	0.01 MW
DSC Sensitivity:	0.01 MW	Temperature Control Mode:	Heating, Cooling, Constant Temperature
Highlight:	Differential Scanning Calorimeter for polymer testing , Touch screen Differential Scanning Calorimeter , Automated software Differential Scanning Calorimeter

Differential Scanning Calorimeter for Polymer Thermal Testing

This advanced touch-screen DSC instrument is specifically engineered for measuring oxidation induction time in polymer materials. Featuring one-touch automated operation, the system executes complete test workflows through its integrated software module.

Standards Compliance

GB/T 19466.2‑2009 / ISO 11357‑2:1999
GB/T 19466.3‑2009 / ISO 11357‑3:1999
GB/T 19466.6‑2009 / ISO 11357‑6:1999

Key Features

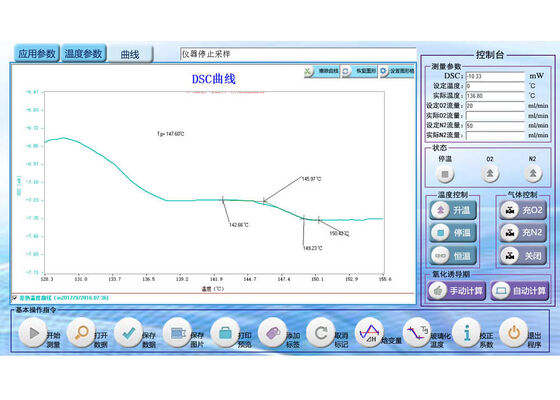

Industrial-grade wide-format touch display with comprehensive real-time data visualization
USB communication port with auto-reconnect for stable data transmission
Compact furnace assembly with configurable heating and cooling rates
Electric heating with compressor-refrigerated circulating water cooling
Dual temperature probes for outstanding repeatability in sample temperature acquisition
Built-in gas flow meter for rapid two-channel gas switching
Software compatible with multiple operating systems and display resolutions
Customizable instrument operation sequences for fully automated workflows
Fully-enclosed support framework to prevent furnace contamination

Technical Parameters

Temperature range	0℃~500℃
Temperature resolution	0.01℃
Heating rate	0.1～40℃/min
Cooling rate	0.1～20℃/min
Calorimetric resolution	100%
Constant temperature	5℃~500℃
Temperature control mode	Heating, cooling, constant temperature
DSC range	0～±500mW
DSC resolution	0.01mW
Working power	AC 220V 50Hz 300W or other
Atmosphere control gas	Two-channel automatic control (nitrogen and oxygen)
Gas flow	0-200mL/min
Gas flow accuracy	0.2mL/min
Crucible	Aluminium crucible Φ6.6*3mm
Calibration standard	Standard material (indium, tin, zinc)
Data interface	Standard USB interface
Display mode	7-inch touch screen

Standard Configuration

DSC machine	1 set
Aluminium crucibles	300 pieces
Power cords and USB cable	Each one
CD (software and operations video)	One
Oxygen airway and nitrogen airway	Each 5m
Operation manual	One
Standard samples (indium, tin, zinc)	Each one
Tweezer and medicine spoon	Each one
External circulation thermostat sink	One
