Modular Pipeline Testing Equipment With Integrated Specimen Chamber & Industrial Chiller For Plastic Pipeline Pressure Temperature Cycle Tests

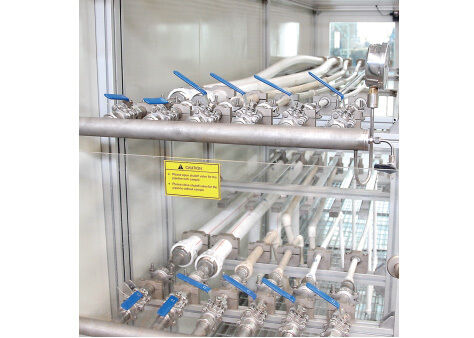

Large Image : Modular Pipeline Testing Equipment With Integrated Specimen Chamber & Industrial Chiller For Plastic Pipeline Pressure Temperature Cycle Tests

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	CHW-63M

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Modular‑Designed Pipe Testing Equipment With Integrated Specimen Chamber & Industrial Chiller For Plastic Pipeline Pressure‑Temperature Cycle Tests	Control Method:	Plc Control
Temperature Control Range:	20°c To Room Temperature (room Temperature> 20°c)	Number Of Cycles:	Any Number Of Times From 0 To 100,000
Temperature Control Accuracy:	Set Value ±0.5°c	Temperature Homogeneity:	±0.5℃
Velocity Of Flow:	>0.9m/s	Display Mode:	Touch Screen Display
Highlight:	Modular Pipeline Testing Equipment , Plastic Pipeline Testing Equipment , Modular Pipe Testing Equipment

Modular‑Designed Pipe Testing Equipment with Integrated Specimen Chamber & Industrial Chiller for Plastic Pipeline Pressure‑Temperature Cycle Tests

Summary:

Bespoke‑developed by our enterprise for a prestigious European brand, this test machine is built to satisfy European technical standard specifications. Multiple years of field‑based deployment throughout European regions have proven it free from technical malfunctions and quality‑related defects.

The complete test unit is assembled from several principal sub‑assemblies, namely cold‑water exchange actuation module, hot‑water exchange actuation module, specimen test chamber and industrial chiller. It delivers fine‑tuned visual appearance, modular system construction, state‑of‑the‑art technical implementation, consistent operational behaviour, dependable build quality and human‑centered intuitive handling.

Instrument failure:

1. Intelligent Switching Function: The system control logic realizes automatic operating adjustment by collecting real-time data, including inlet and outlet water temperature of sample pipelines, liquid level status of cold and hot water tanks, and cold-hot mode switching time parameters. During cyclic mode conversion, the system precisely controls the return valves of dual water tanks to realize high-efficiency backflow of most cold water to the cold water tank. The temperature difference between the two tanks is stably controlled within 3°C, effectively lowering the overall energy consumption of long-term continuous equipment operation.

2. Low-Noise Operating Design: The test pipeline system is fitted with a self-developed customized water flow controller. This exclusive structural design effectively suppresses operating noise caused by high-speed water flow scouring and impact, delivering a quiet and stable test environment.

3. High-Performance Refrigeration System: Adopting imported industrial chillers as the core low-temperature cooling source, the system applies mature water-to-water cooling technology. It keeps the compressor running in the optimal working state at all times, effectively improving overall refrigeration efficiency. Meanwhile, it greatly optimizes the operating condition of the chiller unit and extends the comprehensive service life of industrial chillers.

4. Real-Time Flow Display Module: Configured with imported high-precision flow sensors, this optional component supports real-time dynamic display of pipeline flow data during the entire test process, providing intuitive and accurate flow parameter references for experimental analysis.

5. Pre-Tensioning Device (Optional): Equipped with a standalone rigid supporting frame and lever-type prestressing structure, the device can monitor and display real-time loading force values throughout the test procedure, ensuring accurate and controllable prestressing operation.

6. Maintenance-Free Control Valve: Adopting a non-diaphragm integrated valve body structure, the control valve uses high-temperature resistant PPL as the sealing medium. The specialized sealing material requires no routine replacement during long-term equipment operation, achieving true maintenance-free operation and excellent long-term operational stability and reliability.

7. Intelligent Water Replenishment System: The automatic intelligent water replenishment function replaces traditional manual water adding operations. It not only reduces manual operation workload for laboratory staff but also avoids test water temperature fluctuations caused by manual intervention, ensuring constant and stable test temperature conditions and guaranteeing the smooth progress of experimental procedures.

Technical parameter:

Project		Index
Pressure	Control range	0.40 Mpa ~1.20 Mpa
	Control accuracy	Set value ±0.02 mpa (including cold-to-hot switching process)
Test stations		1–6
Maximum total measured cross-sectional area		6200 mm² (2 × φ63); can be customized upon request.
Circulation time for both hot and cold water		Any setting between 600s and 1800s
Time for alternating hot and cold water		≤60s
Number of cycles		Any number of times from 0 to 100,000
Maximum length of the straight pipe section in the sample		3700mm
Display mode		Touch screen display
Control method		Plc control
Velocity of flow		>0.9m/s
Headwaters	Water quality	Pure water, deionized water, or softened water
	Automatic water supply pressure	＞0.05mpa
Temperature display reading error		±0.2℃
Temperature difference between the inlet and outlet of the sample		＜2℃
Cold water storage cistern	Temperature control range	20°c to room temperature (room temperature> 20°c)
	Temperature control accuracy	Set value ±0.5°c
	Temperature homogeneity	±0.5℃
Hot water tank	Temperature control range	Room temperature to 95°c
	Temperature control accuracy	Set value ±0.5°c
	Temperature homogeneity	±0.5℃
Source		380(1-15%)vac～380(1+10%)vac 50hz 25kw
Outline dimension		L5200 mm × W3200 mm × H2100 mm
Installation size		L6000 mm × W4000 mm × H3000 mm
Total weight		3210kg

Meet standards:

This test system meets the requirements of ISO 10508, ISO 19893, GB/T 19993‑2005, GB/T 18997.1‑2003, GB/T 18997.2‑2003, GB/T 18742.2‑2002, GB/T 18742.3‑2002, GB/T 18992.2‑2003, GB/T 18993.2‑2003, GB/T 18993.3‑2003, GB/T 18991‑2003.

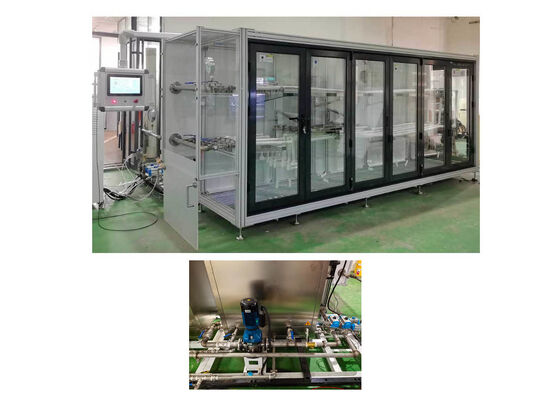

Modular Pipeline Testing Equipment With Integrated Specimen Chamber & Industrial Chiller For Plastic Pipeline Pressure Temperature Cycle Tests
