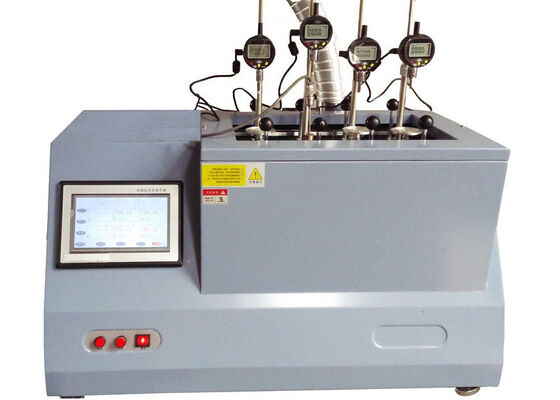

HDT Vicat Tester for Thermoplastic Polymers
Professional thermal testing instrument for determining heat deflection and Vicat softening point temperatures of thermoplastic materials. Ideal for manufacturing facilities, quality control laboratories, and research institutions.
Key Features
- Space-efficient mechanical design with reliable operational performance
- Integrated fume elimination, odor reduction, and forced cooling systems
- Sophisticated MCU multipoint micro-control unit for autonomous temperature regulation
- Automatic deformation acquisition and test result computation
- Storage capacity for up to ten experimental datasets
- Bilingual Chinese-English color touch panel interface
- External connectivity for PC-based remote operation and printing
- Windows-compatible test software with real-time curve rendering
Performance Specifications
- Heating medium: Methyl silicone oil or equivalent with flash point exceeding 300°C
- Cooling system: Water-cooling below 150°C, natural/air-cooling above 150°C
- Configurable over-temperature threshold with automatic alarm system
- Real-time temperature monitoring and automatic heating cutoff
- High-precision digital deformation indicator with alarm reminder
- Built-in oil-fume suppression for improved indoor air quality
Compliance Standards
ISO75, ISO306, GB/T1633, GB/T1634, GB/T8802, ASTM D1525, ASTM D648
Technical Parameters
| Parameter |
Specification |
| Temperature Control Range |
Room Temperature ~ 300°C |
| Heating Rate |
(120±10)°C/h, (50±5)°C/h |
| Maximum Temperature Error |
±0.5°C |
| Deformation Measurement Range |
0～3mm |
| Maximum Deformation Measurement Error |
±0.005mm |
| Accuracy of Deformation Measurement |
±0.01mm |
| Sample Holder (Test Stations) |
4 |
| Span of Sample Supports |
64mm, 100mm |
| Load Bar and Press (Needle) Weight |
70g |
| Supply Voltage |
220V 20A 50Hz |
| Heating Power |
4kW |
Support & Services
On-Site Installation & Commissioning
Technical specialists provide on-site assembly, system debugging, and practical training for operating staff at your facility.
Scheduled Preventative Servicing
Custom periodic maintenance packages to maintain optimal working conditions throughout the equipment's service lifecycle.
Fault Diagnosis & Technical Assistance
Professional technical guidance for fault localization and resolution during equipment operation.
Packaging & Shipping
Standardized wooden box packaging with bubble film and foam padding for protection during transportation. Waterproof plastic wrapping prevents moisture damage. Clear cargo markings for easy identification. Worldwide shipping via UPS and FedEx.
Frequently Asked Questions
What is the HDT VICAT Testing Machine?
The HDT VICAT Testing Machine (Model XRW-300) is a professional thermal testing device developed by TH in Beijing, China, designed to determine Vicat softening temperature of thermosetting plastic materials.
What are the core strengths of this testing machine?
Delivers highly precise and repeatable test results with user-friendly operation. Features intuitive interface, stable structural performance, and reduced maintenance requirements.
What are the key technical specifications?
Temperature control precision of ±0.5°C, operational range from ambient to 300°C, with heating rates of 50°C/h and 120°C/h to meet diverse test standards.
Which materials can be tested?
Applicable for thermal performance testing of thermosetting plastics including polyester resin, epoxy resin, unsaturated polyester, phenolic plastic, and polyurethane materials.
What warranty is provided?
12-month official warranty service covering quality-related failures with reliable after-sales protection for global users.
