Izod Charpy Impact Tester for Plastic & Non-Metallic Materials, Simple Structure, Easy Operation & Data Export

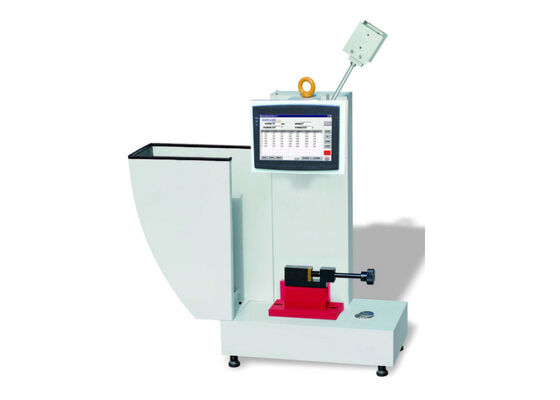

Large Image : Izod Charpy Impact Tester for Plastic & Non-Metallic Materials, Simple Structure, Easy Operation & Data Export

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XJUD-5.5J

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden case
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Product Name:	Izod Charpy Impact Tester For Plastic & Non-Metallic Materials, Simple Structure, Easy Operation & Data Export	Model:	XJUD-5.5J
Impact Energy:	2.75J, 5.5J	Impact Speed:	3.5m/s
Load Model:	Izod	Standards:	ISO179 ISO180 GB/T1043 JB/Y8761 GB/T1843 ASTMD256
Highlight:	Izod Charpy Impact Tester for plastic , Izod Charpy Impact Tester easy operation , Izod Charpy Impact Tester data export

Izod Charpy Impact Tester for Plastic & Non-Metallic Materials

This impact testing instrument features simple structure, easy operation, and convenient data export capabilities for comprehensive material toughness evaluation.

Product Overview

This tester is designed to evaluate the impact toughness of non-metallic specimens, including rigid plastics (sheets, pipes, and plastic profiles), reinforced nylon, FRP, ceramics, cast stone, and electrical insulating materials. It finds extensive application within chemical enterprises, research institutes, universities, and quality inspection authorities.

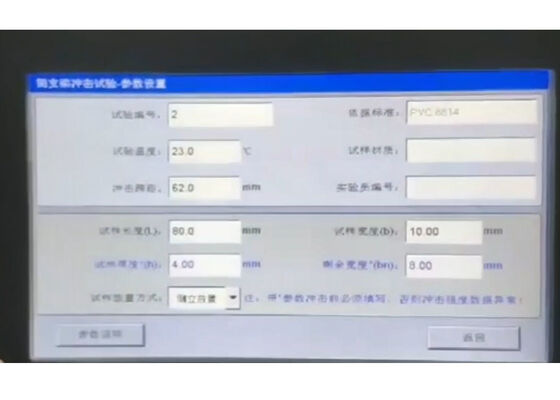

Featuring compact construction and user-friendly operation, this impact tester delivers dependable, precise test data. The device is equipped with a 7-inch full-color touchscreen that automatically computes impact strength and archives data based on collected energy loss after users input specimen dimensions. A USB output port enables direct data export via USB flash drive, allowing exported files to be accessed on PCs for editing and printing test reports.

Technical Specifications

Model	XJUD-5.5J
Impact Energy	2.75J, 5.5J
Impact Speed	3.5m/s
Display	Color touch screen display with automatic result calculation
Load Model	Izod
Standards Compliance	ISO179, ISO180, GB/T1043, JB/Y8761, GB/T1843, ASTMD256
Function	Testing anti-impact properties of engineering plastics, glass, pottery, cast stone and other metallic and non-metallic materials
After Sale Service	1-year warranty with free spare parts replacement via DHL; lifelong maintenance support

Standard Configuration

No	Item	Quantity
1	Main frame	1 set
2	2.75J pendulum	1 set
3	5.5J weights	1 set
5	Centering plate	1 set
6	Inner hexagon spanner	1 set
7	Power wire	1 set
8	Operation manual	1 set
9	Warranty card	1 set
10	Packing list	1 set
