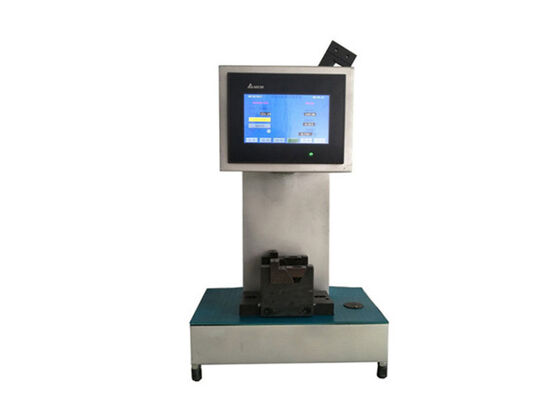

Electronic Pendulum Izod Charpy Impact Tester
Professional testing instrument for evaluating impact resistance of hard plastics, FRP, ceramics, and electrical insulating materials.
Instrument Overview
The XJJC-5J Electronic Pendulum Charpy Impact Tester is designed to assess the impact resistance of non-metallic specimens including engineering plastics, FRP, ceramics, cast stone, plastic profiles, electrical insulation materials, and plastic pipes.
Compliance Standards
This instrument meets requirements of multiple international standards including ISO 179, ISO 180, GB/T 1043, GB/T 1843, ASTM D256, DIN53453, GB18743, ISO9854, and DIN12608.
Technical Specifications
| Parameter |
Specification |
| Model |
XJJC-5J |
| Impact Speed |
2.9m/s |
| Impact Energy |
1J, 2J, 4J, 5J |
| Display |
Pointer |
| Pendulum Torque |
Pd 1=0.53590 Nm, Pd 2=1.07180 Nm, Pd 4=2.14359 Nm, Pd 5=2.67949 Nm |
| Jaw Radius |
1mm |
| Impact Blade Angle |
30° |
| Impact Blade Radius |
2mm |
| Standards |
ISO180, GB/T1043, JB/T8761 |
Working Principle
A pendulum with predefined energy impacts the specimen mounted on a horizontal support beam, rupturing the specimen via a single blow. The impact load is applied at the midpoint between the two supporting points. The absorbed energy upon specimen fracture is quantified by computing the energy variation of the pendulum before and after impact, with impact strength derived from the initial cross-sectional area.
Electronic Measurement Technology
The electronic variant employs grating angular displacement measurement technology, delivering superior accuracy, stable performance, and broad measurement scope. Parameters such as fracture energy, impact strength, pre-elevation angle, and lifting angle are digitally displayed, with automatic calculation of average energy loss for complete test batches.
Packaging and Shipping
Package size and gross weight vary by model. We optimize packaging design for compact volume and reduced weight to minimize freight costs. For international delivery, testers are secured in solid wooden crates with complete shipping documentation and identification labels. We partner with reliable logistics providers to ensure timely, secure delivery.
Frequently Asked Questions
What is the official model designation of the testing device?
The official model specification of this equipment is XJD.
What authoritative qualification certifications does the instrument possess?
This testing device holds valid ISO quality certification and CE compliance certification to meet global trade standards.
What is the minimum purchase volume for this equipment?
This product supports single-unit procurement, with a minimum order quantity of one complete set.

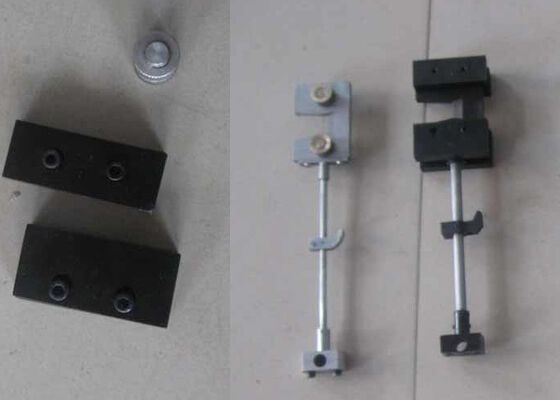

Product Images
