Izod Charpy Pendulum Impact Tester, Digital Impact Testing Machine for Rigid Plastics, FRP and Non-Metallic Materials, High Precision Wide Test Range

Large Image : Izod Charpy Pendulum Impact Tester, Digital Impact Testing Machine for Rigid Plastics, FRP and Non-Metallic Materials, High Precision Wide Test Range

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XJJUC-50J

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Izod Charpy Pendulum Impact Tester, Digital Impact Testing Machine For Rigid Plastics, FRP And Non-Metallic Materials, High Precision Wide Test Range	Clamping Method:	Izod & Charpy
Display:	Color Touch Screen	Impact Energy:	1, 2.75, 5.5J, 11J, 22J(Izod); 1, 2, 4, 5J, 7.5J, 15J, 25J, 50J(Charpy)
Impact Speed:	3.5m/s；2.9m/s; 3.8m/s	Usage:	Impact Testing Machine
Reading Resolution:	0.001J	Raising Angle:	150°
Highlight:	Izod Charpy Pendulum Impact Tester , Digital Impact Testing Machine for Rigid Plastics , High Precision Izod Charpy Impact Tester

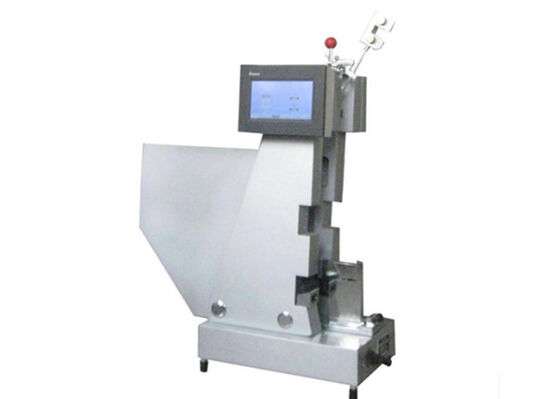

Izod Charpy Pendulum Impact Tester

Digital Impact Testing Machine for Rigid Plastics, FRP and Non-Metallic Materials with High Precision and Wide Test Range

Product Overview

The XJJUC-50J Izod Impact Tester and Charpy Pendulum Impact Testing Machine employs photoelectric encoder technology for angular acquisition. This fully digital instrument precisely quantifies energy absorption and impact strength during specimen fracture, featuring comprehensive energy loss monitoring and calibration functions.

Designed with superior accuracy, stable performance, and broad measurement scope, this full-digital impact testing apparatus supports multiple test energy levels through interchangeable pendulum tip weights.

This testing system evaluates impact toughness of non-metallic specimens including rigid thermoplastics, thermoset plastics, and fiber-reinforced thermosetting and thermoplastic materials. It serves diverse applications across plastic fabrication, petrochemical industries, universities, research institutions, and commodity inspection authorities.

Technical Specifications

Parameters	XJJUC-50J
Impact Method	Charpy \| IZOD
Impact Energy	1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J \| 1J, 2.75J, 5.5J, 11J, 22J
Energy Accuracy	0.5% \| 0.5%
Impact Speed (m/s)	2.9; 3.8 \| 3.5
Pendulum Moment	Pd1=0.53590Nm, Pd2=1.07180Nm, Pd4=2.14359Nm, Pd5=2.67949Nm, Pd7.5=4.0192Nm, Pd15=8.0385Nm, Pd25=13.397Nm, Pd50=26.795Nm \| Pd1=0.53590Nm, Pd2.75=1.47372Nm, Pd5.5=2.94744Nm, Pd11=5.8949Nm, Pd22=11.7898Nm
Reading Resolution	0.001J \| 0.001J
Raising Angle	150° \| 150°
Round Angle Radius	R=2mm±0.5mm \| R=0.8mm±0.2mm
Impact Center Distance	230mm, 395mm \| 335mm
Power Supply	1 Phase, 220V, 50Hz/60Hz
Dimension & Weight	550mm×350mm×850mm, 160kg

Instrument Features

Advanced circular grating angle measurement technology
Exceptional precision with stable operational performance
Extensive measurement spectrum capabilities

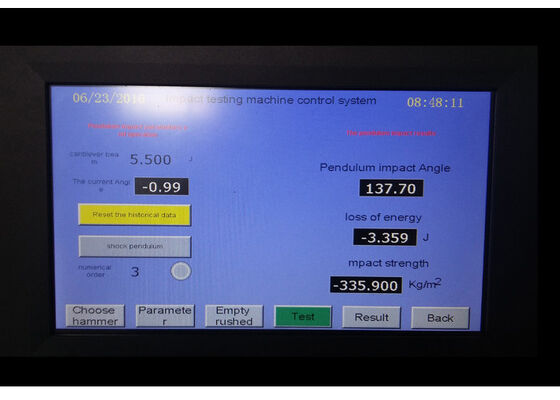

Digital visualization of impact strength, pre-lift angle, lifting angle, and averaged test readings
Automatic energy loss compensation functionality
Test report output via printing

Compliance Standards

This instrument complies with ISO179-2000, ASTM D 6110, GB/T1043-2008, JB/T8762-1998, and GB/T 18743-2002 test specifications.

Frequently Asked Questions

Q: What is the model designation of this testing instrument?

A: The assigned model designation is XJD.

Q: What certification credentials are available for this unit?

A: The equipment holds ISO quality certification and CE conformity marking.

Product Images
