Izod & Charpy Pendulum Impact Tester, Automatic Energy Loss Calibration for Engineering Materials Impact Test

Izod & Charpy Pendulum Impact Tester, Automatic Energy Loss Calibration for Engineering Materials Impact Test
Izod & Charpy Pendulum Impact Tester, Automatic Energy Loss Calibration for Engineering Materials Impact Test

Large Image :  Izod & Charpy Pendulum Impact Tester, Automatic Energy Loss Calibration for Engineering Materials Impact Test

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: TH
Certification: ISO9001, CE
Model Number: XJJD-5J
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T,L/C,D/A,D/P
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Izod & Charpy Pendulum Impact Tester, Automatic Energy Loss Calibration For Engineering Materials Impact Test Clamping Method: Charpy
Display: LCD Impact Energy: 1, 2, 4, 5J
Impact Speed: 2.9m/s Usage: Impact Testing Machine
Raising Angle: 150°
Highlight:

Izod Charpy impact tester with automatic calibration

,

Engineering materials impact test equipment

,

Pendulum impact tester for Izod Charpy

Izod & Charpy Pendulum Impact Tester
Automatic Energy Loss Calibration for Engineering Materials Impact Test
Product Overview
The Charpy Impact Test Equipment, also known as Pendulum Impact Tester, measures the impact resistance of engineering plastics, glass fiber reinforced materials, ceramics, cast stone, plastic electrical components, insulating materials, plastic pipes and various other non-metallic specimens.
Compliance Standards
This instrument complies with specification requirements laid out in ISO179, ISO180, GB/T1043, GB/T1843, ASTM D256, JB8762, JB8761, ISO9854, GB18743 and other relevant standards.
Key Features
  • Electronic impact testing machine with circular-surface angle measurement technology
  • High precision and stable system performance with broad measuring range
  • Digital measurement system visualizes test curves and impact strength
  • Displays pre-lifting angle and mean values of specimen batches
  • Supports automatic energy loss revision
Technical Specifications
Model XJJD-5J
Impact Speed 2.9m/s
Impact Energy 1J, 2J, 4J, 5J
Display LCD
Pendulum Torque Pd 1=0.53590 Nm, Pd 2=1.07180 Nm
Pd 4=2.14359 Nm, Pd 5=2.67949 Nm
Jaw Radius 1mm
Impact Blade Angle 30°
Impact Blade Radius 2mm
Standards ISO180, GB/T1043, JB/T8761
Applications
Primarily used to assess the impact toughness of rigid plastics, reinforced nylon, glass fiber composites, ceramics, cast stone, electrical insulating materials and other non-metallic specimens. Ideal for chemical quality inspection authorities, research institutes, universities and relevant industrial sectors.
Instrument Characteristics
  • High-hardness precision bearings paired with single-axis photoelectric sensor
  • Drastically reduces friction-related losses
  • Keeps frictional energy loss well under threshold specified by relevant standards
  • Intelligent operational status reminders for real-time operator interaction
  • Ensures high test success rates
Frequently Asked Questions
Q: What is the model designation of this unit?
A: Its model number is XJD.
Q: Which certificates are available for this instrument?
A: The product holds ISO and CE certifications.
Q: What is the minimum order quantity of this tester?
A: The MOQ is 1 set.
Product Images

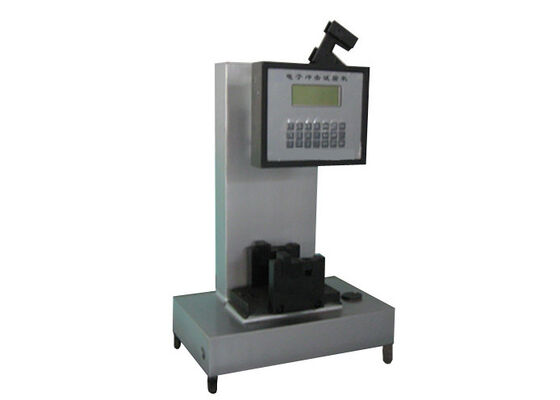

Izod & Charpy Pendulum Impact Tester front view Izod & Charpy Pendulum Impact Tester side view Izod & Charpy Pendulum Impact Tester control panel Izod & Charpy Pendulum Impact Tester testing mechanism
