22J Izod & Charpy Impact Tester, Digital Pendulum Impact Testing Machine with Full Digital Measurement & Calibration Function

Large Image : 22J Izod & Charpy Impact Tester, Digital Pendulum Impact Testing Machine with Full Digital Measurement & Calibration Function

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XJUC-22J

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	22J Izod & Charpy Impact Tester, Digital Pendulum Impact Testing Machine With Full Digital Measurement & Calibration Function	Clamping Method:	Izod
Display:	Color Touch Screen	Impact Energy:	5.5J, 11J, 22J
Impact Speed:	3.5m/s	Usage:	Pendulum Impact Testing Machine
Raising Angle:	160°	Distance Between Impact Blade And Clamp Mouth:	22.0mm±0.2mm
Highlight:	Digital Izod Charpy Impact Tester , Pendulum Impact Testing Machine , Izod Impact Tester with Calibration

22J Izod & Charpy Impact Tester

Digital Pendulum Impact Testing Machine with Full Digital Measurement & Calibration Function

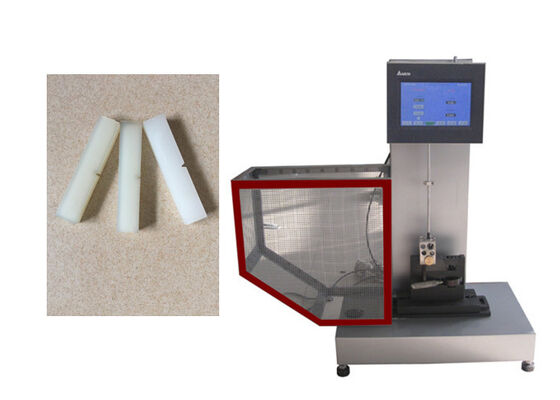

The XJUC-22J Izod Impact Testing Machine, also known as Izod Pendulum Impact Tester, is engineered to assess the impact toughness of rigid plastics and various non-metallic substances including reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone, plastic electrical components, and insulation materials.

Applications & Users

Widely adopted by research institutes, higher education establishments, and manufacturing enterprises for material inspection tasks. This essential quality inspection apparatus serves research facilities, universities, factories, and industrial enterprises.

Key Features

Photoelectric encoder angle detection technology
Fully digital measurement system
Complete energy loss monitoring and calibration capabilities
Outstanding precision and stable performance
Broad testing range
Dual operation system supporting both PC control and LCD local display
Electric pendulum release mechanism
High-performance steel construction with aging treatment

Compliance Standards

Developed in compliance with test protocols specified in ISO180, GB/T1043, GB1834, JB/T8761, ASTM D256, ISO9854, and other relevant international standards.

Technical Specifications

Parameter	Specification
Model	XJUC-22J
Impact Speed	3.5m/s
Pendulum Energy	5.5 J, 11J, 22J
Pendulum Angle	160 degree
Impact Center Distance	335mm
Accuracy	±0.1%
Resolution	1%
Distance between impact blade and clamp mouth	22.0mm±0.2mm
Blade fillet radius	R=0.8mm±0.2mm
Energy Loss	5.5J--0.5%, 11J, 22J--0.5%

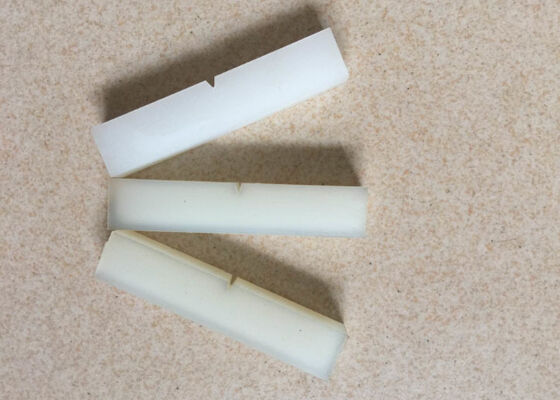

Specimen Type	Best type of specimen is 1 type
Required Space	Front and back 0.4m, left and right 1.5m, head 1.5m
Power Requirements	(220-15%~220+10%)VAC 50HZ 0.1KW

Equipment Capabilities

The Microcomputer Controlled Impact Testing Machine automatically displays impact energy values, computes impact strength, calculates average impact strength across full batches of specimens, and performs data deletion operations. It features user-friendly man-machine interaction and superior measurement precision.

Frequently Asked Questions

What certification credentials are available for this product?

The product holds ISO and CE certifications.

What is the minimum order quantity of this tester?

The minimum order quantity stands at 1 unit.
