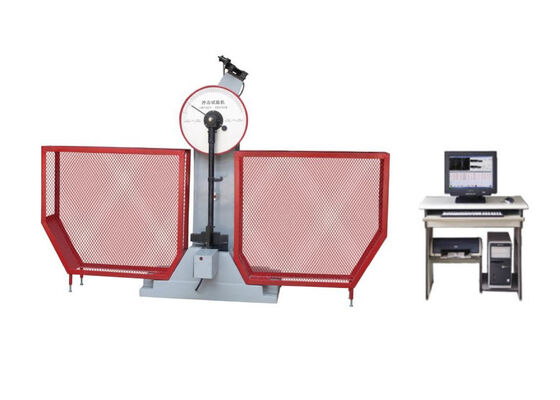

Automatic Izod & Charpy Pendulum Impact Tester, Integrated Pendulum Structure, Easy Operation for Metal Impact Resistance Test

Large Image : Automatic Izod & Charpy Pendulum Impact Tester, Integrated Pendulum Structure, Easy Operation for Metal Impact Resistance Test

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	JBW-500Z

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden case
Delivery Time:	20 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Product Name:	Automatic Izod & Charpy Pendulum Impact Tester, Integrated Pendulum Structure, Easy Operation For Metal Impact Resistance Test	Model:	JBW-500Z
Maximumimpact Energy（J）:	500	Effective Range Of Use:	20%-80%FS
Anvil Span:	40mm	Preraising Angle Of Pendulum:	150°
Automatic Sample Capacity:	24 Peace	Deliver Way:	Air-operated
PositionaI Accuracy:	0.1mm	Pneumatic Pressure:	0.6~0.7MPa
Send Sample Way:	Automatic
Highlight:	Automatic Izod Charpy Impact Tester , Integrated Pendulum Impact Tester , Metal Impact Resistance Tester

Automatic Izod & Charpy Pendulum Impact Tester

This advanced testing apparatus evaluates the dynamic-load impact resistance of metallic materials through automated Izod and Charpy testing methodologies. Designed for precision and efficiency in industrial and research environments.

Performance Specifications

Essential for metallurgy, machinery fabrication enterprises, and research institutions engaged in new material development. The microcomputer-screen fully automatic impact testing system enables sequential automated workflows including pendulum lifting, specimen feeding, positioning, impact execution and pendulum re-hoisting.

User-friendly operation with superior throughput and high measurement accuracy
Split-type construction with cantilever suspended pendulum
C-shaped hammer assembly design
Impact blade fastened via screw connection for convenient replacement
Specimens mounted on simply-supported beam holders with end-face positioning
Safety guard net installed for operational protection

Main Technical Parameters

Host and Accessories Parameters

Project	JBW-500Z
Maximum impact energy (J)	500
Effective range of use	20%-80% FS
Pre-raising angle of pendulum	150°
Distance from axis of pendulum to center of strike	750mm

Supported Parameters

Project	JBW-500Z
Pendulum hammer (N)	334.475
Moment of pendulum (N*m)	267.58
Impact speed	5.4 m/s
Anvil span	40mm
Anvil rounded radius	R1-1.5mm
Anvil bevel	11°±1°
Impact blade angle	30°±1°
Impact blade radius of curvature	2mm
8mm Impact blade	8mm±0.05mm
8mm Radius of impact blade shoulder angle	0.1mm-1mm
8mm Impact blade width	4mm ±0.05mm
Impact blade width	10mm-18mm
Thickness of impact knife	16mm
Meet sample specifications (mm)	10×10×55mm

Measured Parameters

Project	JBW-500Z
Rotary encode	3600 line
Automatic sample capacity	24 pieces
Delivery way	Air-operated
Sample delivery and positioning time	≤5S
Location mode	Air-operated
Positional accuracy	0.1mm
Pneumatic pressure	0.6～0.7 MPa

Product Standards Compliance

This instrument conforms to GB/T 2611-2007, JB/T 7406.1-1994, GB/T 3808-2010, GB/T 229-2007, JJG 145-2007, ISO 148:1998, ASTM E23-07a, GB/T 18658-2002, JB/T 6147-2007, ISO14556:2000, GB/T19748-2005, and JJF1320-2011 specifications.

Measurement and Control System Features

Compatible with HP laser printers
Windows OS platform with on-screen visualization and mouse-driven operation
Software supports multiple pendulum specifications
Records impact strength and energy parameters with statistical calculations
Automatic data processing and oscillation period measurement
Comprehensive system parameter accessibility
Robust data analysis capabilities for diverse application scenarios
Full-featured file management system for test reports and specimen files
Test data saved in ASCII format for reprocessing with commercial software
AD, I/O and board modules support multiple testing machine control
On-screen prompts streamline daily operational workflows
Compatibility with various commercial printers
Factory preset configuration file saving and restoration
Simple upgrade support
Real-time virtual digital tube rendering and continuous monitoring

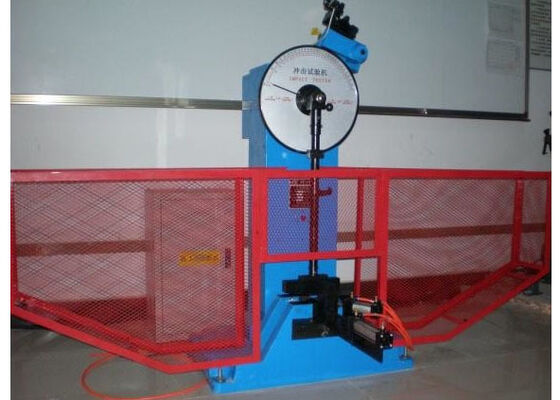

Product Images
