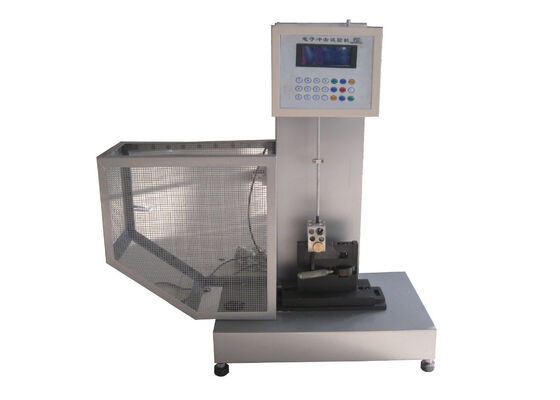

5.5J Izod & Charpy Pendulum Impact Tester, ISO 179 Compliant for Non-Metallic Material Impact Toughness Test

Large Image : 5.5J Izod & Charpy Pendulum Impact Tester, ISO 179 Compliant for Non-Metallic Material Impact Toughness Test

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001 , CE
Model Number:	XJUD-5.5J

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	5.5J Izod & Charpy Pendulum Impact Tester, ISO 179 Compliant For Non-Metallic Material Impact Toughness Test	Clamping Method:	Izod
Display:	LCD	Impact Energy:	1J, 2.75J, 5.5J
Impact Speed:	3.5m/s	Usage:	Pendulum Impact Testing Machine
Raising Angle:	160°
Highlight:	5.5J Izod Charpy Impact Tester , ISO 179 Non-Metallic Impact Tester , Pendulum Impact Toughness Tester

5.5J Izod & Charpy Pendulum Impact Tester — ISO 179 Compliant for Non-Metallic Material Impact Toughness Testing

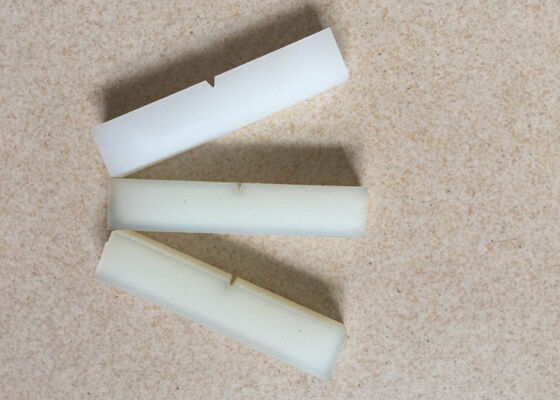

The XJU-5.5J Izod Impact Testing Machine, also known as an Izod Pendulum Impact Tester, is engineered to evaluate the impact ductility of non-metallic specimens. It covers engineering plastics, glass fiber reinforced materials, ceramics, cast stone, plastic electrical components, reinforced nylon, and electrical insulating materials.

This instrument is widely deployed across the chemical sector, research institutions, quality inspection divisions, and specialized manufacturing enterprises. The equipment assembly consists of a rigid frame, specimen mounting base, pendulum striking head, operation assembly, and dial indicator.

Technical Specifications

Model	XJUD-5.5J
Impact Energy	1J, 2.75J, 5.5J
Impact Speed	3.5 m/s
Pendulum Moment	Pd1 = 0.53590 Nm, Pd2.75 = 1.47372 Nm, Pd5.5 = 2.94744 Nm
Display	LCD
Load Model	Izod
Standards	ISO 179, ISO 180, GB/T 1043, JB/Y 8761, GB/T 1843, ASTM D256
Function	Used to test the anti-impact property of engineering plastics, glass, pottery, cast stone, and other metallic and non-metallic materials.

Working Principle

A pendulum hammer with predefined energy strikes the specimen mounted on a horizontal beam and fractures the specimen via a single impact blow. The impact position is aligned centrally between the two supporting points.

The absorbed energy consumed by the specimen upon fracture is quantified by computing the discrepancy in pendulum energy before and after impact. Subsequently, the impact strength value is derived from the original cross-sectional area of the test specimen.

Instrument Characteristics

Adopts high-hardness precision bearings together with a single-axis photoelectric sensor to substantially suppress frictional losses, keeping friction energy dissipation well under the thresholds specified by relevant standards.
Delivers intelligent operational status alerts in response to real-time impact events.
Enables continuous interaction with test operators to secure high success rates for each impact test.

Compliant Standards

The equipment complies with a full set of international and domestic testing specifications, including:
