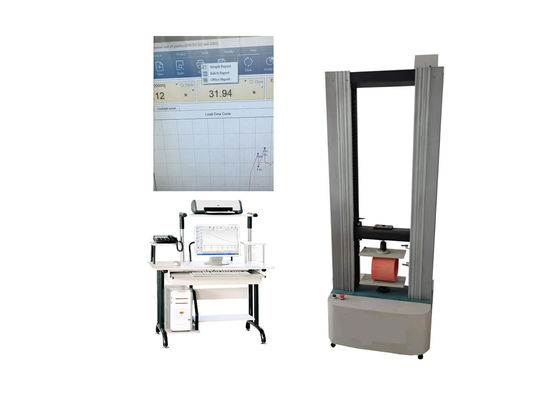

20KN Capacity UTM Universal Testing Machine for Stretching Stripping Thermal Seal Strength Tearing and Bending Tests
Product description:
The testing machine utilizes an AC servo motor as its power source and incorporates advanced chip integration technology. It features a professionally engineered data acquisition, amplification, and control system, where the processes of test force measurement, deformation amplification, and A/D conversion enable full digital adjustment for both control and display functions.

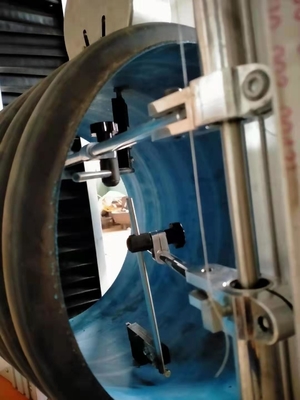

This universal testing machine is capable of testing the ring stiffness of plastic pipes, while also evaluating the tensile, peel, heat-seal strength, tear, and bending properties of both non-metallic and metallic materials.
In compliance with standards such as GB, JIS, ASTM, DIN, and ISO, it can automatically calculate key parameters including maximum test force, ring stiffness, ring flexibility, partial flat test results, tensile strength, various elongation rates, and compressive strength.
Main performance characteristics:
Force capacity selection:
20kN
Force resolution:
1/300,000
Displacement resolution:
0.005mm adopts 4 times frequency encoder to improve the accuracy of 4 times;
Test machine power unit:
AC closed-loop servo motor;
Testing types:
Stretching, compression, bending, stripping, cutting, and so on;
Control mode:
Fixed speed, fixed force maintenance, positioning shift maintenance, fixed stress maintenance, fixed strain keeping, pull-off shutdown, to displacement shutdown, to load shutdown, displacement millions of cycles, force millions of cycles.
Testing items:
Ring stiffness, ring flexibility, tensile force, pressure, strength, deformation, elongation rate, bending strength, stripping strength, elastic modulus, 100,200,300,500,700% fixed elongation strength, displacement point charge weight, load weight point displacement, stress point strain, strain point stress and so on;
The key technical indexes:
| Force capacity selectio |
20kN |
| Force measurement accuracy |
1% (or 0.5%); |
| The displacement resolution |
0.005mm |
| Control mode |
Closed-loop |
| Force resolution |
1/300,000 |
| Test speed |
0.005~500mm / min can be formulated |
| Conpression test trip |
900mm(can customized) |
| External size |
660×400×2000mm |
| Instruments weight |
about 250kg |
Customization:
Introduction to the Electronic Universal Testing Machine
The Electronic Universal Testing Machine is a high-performance testing system engineered for a comprehensive suite of tests, including Tensile, Compression, Bending, Shear, Peel, and Adhesion tests. It boasts a measurement accuracy of ±1%, integrated computer control capabilities, a test width of 520mm, and computerized data acquisition. This machine serves as an optimal solution for tensile strength testing and other precision-critical testing scenarios.
Tailored customization services are available to address specific application requirements.
Packing and Shipping:
The Electronic Universal Testing Machine is packaged and shipped with the utmost care. All components are securely packed in cartons, supplemented with a minimum of six inches of protective foam cushioning for impact resistance. Prior to shipment, all components and accessories undergo a thorough inspection; post-inspection, the package is securely sealed and affixed with an anti-tamper label.
Shipping is handled via a trusted and reliable third-party logistics carrier, and detailed tracking information is provided to the customer for real-time shipment monitoring. The package is delivered directly to the customer's designated address, with signature confirmation required to verify successful delivery.
