Hydrostatic Pressure Testing Machine is used for the determination of the resistance to internal pressure of thermoplastic pipes

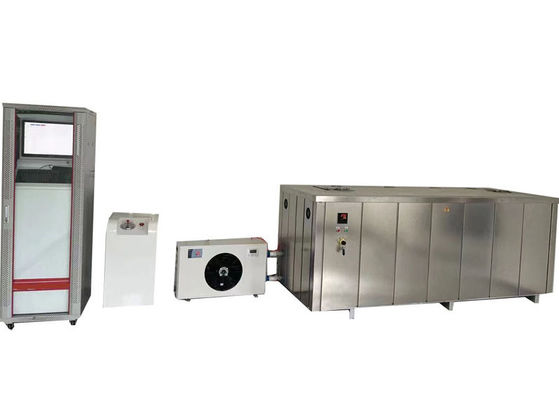

Large Image : Hydrostatic Pressure Testing Machine is used for the determination of the resistance to internal pressure of thermoplastic pipes

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-16C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7-15 working days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Is Used For The Determination Of The Resistance To Internal Pressure Of Thermoplastic Pipes	Testing Range:	0-16MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine for thermoplastic pipes , Internal pressure resistance testing machine , Plastic pipe hydrostatic pressure tester

Hydrostatic Pressure Testing Machine

The Hydrostatic Pressure Testing Machine is used for the determination of the resistance to internal pressure of thermoplastic pipes.

Purposes

The main function of hydrostatic pressure testing machines is to evaluate the internal pressure resistance of plastic pipes, fittings, and assemblies. By applying a specific internal pressure to products made from materials like PP, PE, PVC, PVC-C, and ABS under controlled conditions for a set period, the machine assesses their pressure-bearing capacity without failure (e.g., leakage, bursting, or excessive deformation). This testing is vital for ensuring the quality, safety, and reliability of plastic pipes and related components in fluid conveyance systems, which are widely used in water supply, drainage, gas transmission, and industrial fluid transfer fields.

Meet Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.

Frequently Asked Questions

Q1: What is the purpose of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?

A1: It is used to test the hydrostatic pressure resistance and bursting strength of plastic pipes.

Q2: What types of components and materials can the Hydrostatic Pressure Testing Machine test?

A2: The machine can test plastic pipes and composite pipes (such as PP-R, PP-B, PP-A, PVC, PE, PE-X, etc.).

Q3: What is the maximum pressure that the Hydrostatic Pressure Testing Machine can test?

A3: The machine can test pressures up to 10 MPa, 100 bar (14,500 psi).

Technical Parameters

Model	XGY-10C
Diameter range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized
Control mode	Micro-control, industrial PC control
Display mode	Industrial PC LCD color display
Storage mode	PC storage
Print mode	Color printer output
Test pressure	Pressure range: 0.1-10MPa
Control accuracy	±1%
Display resolution	0.01MPa
Working range	5%~100%FS
Indication error	±1%
Test Timer	Timer range: 0~10000h
Timer accuracy	±0.1%
Timer resolution	1s
Power	380V 50Hz three-phase four-wire 1.5KW

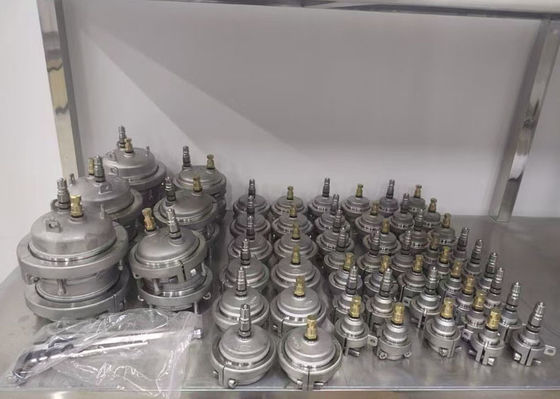

End caps models	from Φ8 to 1800mm
Water tank size	accoard to the pipe size
Temperature range	15-95℃
Dimensions (three stations)	715×625×1700(mm)or others

The Free Length of the Specimens

Specimen Type	Free Length Requirements
Extruded Pipe Specimens	d_n <315mm: ≥ 3d_n and ≥ 250mm; d_n >315mm: ≥ 2d_n
Injection-molded Pipe Specimens	d_n <50mm: 3d_n; 50mm ≤ d_n ≤ 110mm: ≥ 140mm
Assembled Specimens with Hydrostatic Thrust (Two Pipe Sections)	≥ 3d_n and ≥ 250mm (d_n >315mm: ≥ 2d_n if min. length not met)
Assembled Specimens with Hydrostatic Thrust (with Fittings)	≥ 2d_n and ≥ 150mm; d_n >250mm: ≥ 1.5d_n
Assembled Specimens with Hydrostatic Thrust (Saddle Branch)	≥ 100mm
Assembled Specimens without Hydrostatic Thrust	= d_n and ≥ 150mm
