Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: TH
Certification: ISO9001
Model Number: XGY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 3~5 work days
Payment Terms: T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Product Name: And Durable End Closure For Plastic Pipes Suitable For Sealing Various Pipe Materials During Pressure Testing Procedures Material: 304# Stainless Steel
Technics: Precision Casting Type: A
Model: φ 75mm Exterior Size(mm*mm): φ145*105mm
Weight: 6KG Sealing Ring: O-ring
Highlight:

durable plastic pipe end closure

,

pressure testing pipe seal

,

end closure for various pipe materials

Durable End Closure For Plastic Pipes
Designed for sealing various pipe materials during pressure testing procedures, this durable end closure ensures reliable performance in demanding testing environments.
Working Principle

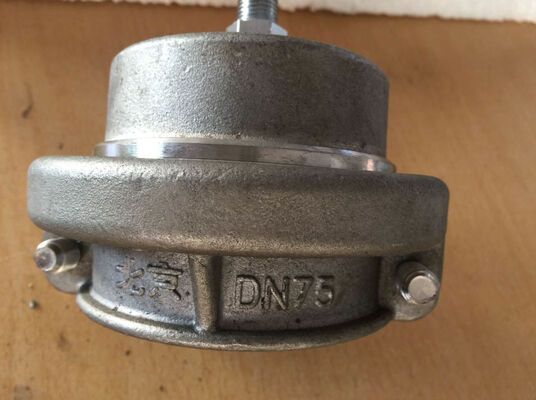

DN 75mm 304 Stainless Steel PVC Pipe Fitting End Caps are specially designed for sealing test pipes. High-temperature resistant silicone sealing rings are fitted into the seal grooves of the end caps.
The metal rings attached to the end caps apply compression to the silicone sealing rings, while the O-rings achieve reliable sealing through deformation caused by external force.
Range of Application
Primarily designed for sealing PVC, PE, PP-R, ABS and composite pipe specimens during hydrostatic tests, burst tests, negative pressure tests and other relevant testing operations.

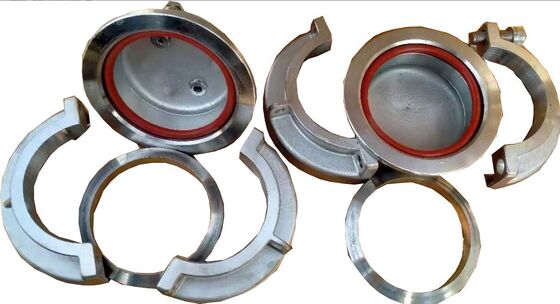

Fixture Structure
Semi-circular tank structure enables easy installation, superior leak-proof performance and convenient operation.
A full range of diameter specifications is available to meet customized customer demands, with the product manufactured from 304 stainless steel or carbon steel.
Compliance Standards
ISO1167, ASTM D 1598/1599
Technical Parameters
Product Name End Caps
Color Silvery White
Outline Dimension φ135*100mm
Applicable Pipe Diameter φ75~φ75+0.8mm
Max. Pressure 10MPA
Seal Ring Size φ72*5mm
End Cap Connector M2*1.25, 1/4'' (customizable)
Type Type A
Packing Standard Export Wooden
Certificate ISO
Delivery Time 3~5 Days
Frequently Asked Questions
What is the applicable nominal diameter specification of the Pipe Static Hydraulic Clamp?
This clamp supports a complete diameter range from DN20mm to DN315mm, matching various pipe specifications for hydraulic tests.
What is the rated working pressure of this Pipe Static Hydraulic Clamp?
The rated working pressure can reach 16MPa, which fully meets the standard requirements of pipe static hydraulic testing.
What material is used for the main structure of the clamp?
The whole fixture is made of high-strength 304 stainless steel, with strong rust protection and long service life.
What sealing method does this hydraulic clamp adopt?
It uses a built-in high-precision silicone sealing component, which guarantees stable and leakage-free sealing performance.
Which kinds of pipes can this static hydraulic clamp be applied to?
It is suitable for PVC, PE, PP-R, ABS plastic pipes and composite pipes in hydraulic and burst tests.
What are the structural advantages of this pipe clamping fixture?
It adopts a quick-lock mechanical structure, realizing easy installation, stable fixation and high testing efficiency.
